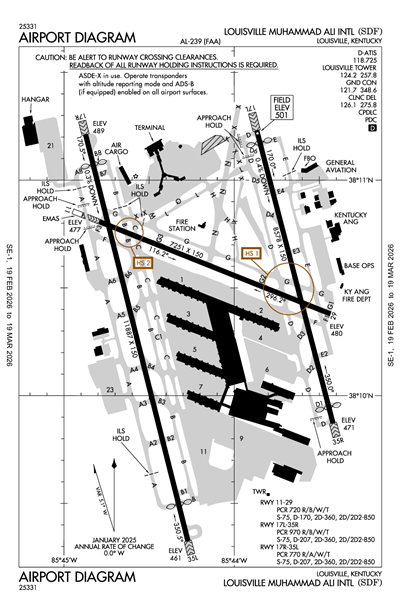

LOUISVILLE MUHAMMAD ALI INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSDF
ICAO KSDFIATA SDFLocal SDF
LOUISVILLE MUHAMMAD ALI INTL
PublicPUB

4 miles S of LOUISVILLE, KY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 10' 27"N 85° 44' 11"W
Elevation
501' MSL
Pattern Alt
1501' MSL
Mag Variation
5°W
Declination
5°W
Fuel
JET A, JET A (FSII), 100LL
FSS
LOUISVILLE (LOU)
Sectional
ST LOUIS
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KSDF VFR
4:56 AM EST
Overcast 7,500'
Broken 4,500'
Few 3,700'
10sm
58°F
55°F
30.12"Hg
100° 5kts
AO2 RAE03 SLP196 P0000 T01440128
METAR KSDF 040956Z 10005KT 10SM FEW037 BKN045 OVC075 14/13 A3012 RMK AO2 RAE03 SLP196 P0000 T01440128
+ Add Your Business

KSDF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 118.725
ASOS (502) 676-6814

Common

UNICOM 122.95

Clearance

Clearance Delivery 126.1

Ground

LOUISVILLE GROUND 121.7

Tower

LOUISVILLE TOWER 124.2

Approach

LOUISVILLE APPROACH 123.675
170-349
LOUISVILLE APPROACH 132.075
350-169
LOUISVILLE APPROACH 132.075
Initial Contact
LOUISVILLE APPROACH 134.15

Departure

LOUISVILLE DEPARTURE 123.675
170-349
LOUISVILLE DEPARTURE 132.075
Initial Contact
LOUISVILLE DEPARTURE 132.075
350-169

Emergency

Emergency 121.5

Other

CLASS C 123.675
170-349
CLASS C 132.075
350-169

Terminal Area Forecast

KSDF
Wed, 3/4 1:26 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 7:00 AM EST
VFR
1:00 AM EST - 4:00 AM EST
Light Showers and Rain
Overcast 8,000'
6sm
200° 8kts
VFR
4:00 AM EST - 6:00 AM EST
Overcast 5,000'
6sm
180° 7kts
VFR
6:00 AM EST - 8:00 AM EST
Light Showers and Rain
Overcast 3,500'
6sm
150° 5kts
MVFR
8:00 AM EST - 2:00 PM EST
Light Showers and Rain and Mist
Overcast 2,500'
4sm
180° 5kts
MVFR
2:00 PM EST - 7:00 AM EST
Broken 1,500'
6sm
200° 8kts
TAF KSDF 040626Z 0406/0512 20008KT P6SM -SHRA OVC080
   FM040900 18007KT P6SM OVC050
   FM041100 15005KT 6SM -SHRA OVC035
   FM041300 18005KT 4SM -SHRA BR OVC025
   FM041900 20008KT P6SM BKN015
KSDF
EffectiveExpiresCategoryNOTAM
Domestic
3/9/26
1130Z
3/31/26
2100Z
!SDF 03/005 SDF OBST CRANE (ASN UNKNOWN) 380912N0854318W (2NM SE SDF) UNKNOWN (85FT AGL) FLAGGED MON-SAT 1130-2100 2603091130-2603312100
3/3/26
1230Z
3/6/26
2100Z
!SDF 03/009 SDF OBST CRANE (ASN UNKNOWN) 381106N0854430W (.6NM NE SDF) UNKNOWN (127FT AGL) FLAGGED DLY 1230-2100 2603031230-2603062100
3/2/26
1821Z
4/16/26
1217Z
!SDF 03/008 SDF OBST TOWER LGT (ASN 2014-ASO-625-OE) 380859N0854359W (1.5NM S SDF) 531FT (70FT AGL) U/S
2603021821-2604161217
2/27/26
2316Z
3/7/26
0300Z
!SDF 02/281 SDF TWY B CL MARKINGS BTN UPS 11 RAMP AND APCH END RWY 35L EAST SIDE NOT STD 2602272316-2603070300
2/27/26
1428Z
Runway!SDF 02/277 SDF RWY 29 RAI LGT U/S 2602271428-2603202000EST
2/25/26
1319Z
!SDF 02/260 SDF NAV ILS RWY 29 OM U/S 2602251319-2603262000EST
2/25/26
1230Z
3/7/26
2200Z
!SDF 02/254 SDF OBST CRANE (ASN UNKNOWN) 380912N0854318W (2NM SE SDF) UNKNOWN (85FT AGL) FLAGGED WED THU FRI SAT MON TUE 1230-2200 2602251230-2603072200
2/23/26
1230Z
3/8/26
0001Z
!SDF 02/244 SDF OBST CRANE (ASN UNKNOWN) 380908N0854319W (1.7NM SE SDF) UNKNOWN (80FT AGL) FLAGGED AND LGTD MON-SAT 1230-0001 2602231230-2603080001
2/22/26
2114Z
4/8/26
2113Z
!SDF 02/235 SDF OBST TOWER LGT (ASR 1030368) 381025.00N0855450.00W (8.4NM W SDF) 1348.4FT (377.3FT AGL) U/S 2602222114-2604082113
2/8/26
0609Z
3/25/26
0612Z
!SDF 02/157 SDF OBST TOWER LGT (ASN 2017-ASO-18029-OE) 380805N0854348W (2.4NM S SDF) 616FT (155FT AGL) U/S 2602080609-2603250612
2/2/26
0450Z
3/19/26
0633Z
!SDF 02/022 SDF OBST POWER LINE LGT (ASN UNKNOWN) 380829N0854257W (2.2NM SSE SDF) 590FT (130FT AGL) U/S 2602020450-2603190633
2/2/26
0428Z
3/19/26
0635Z
!SDF 02/021 SDF OBST POWER LINE LGT (ASN UNKNOWN) 380833N0854249W (2.18NM SSE SDF) 592FT (125FT AGL) U/S 2602020428-2603190635
1/30/26
1419Z
!SDF 01/411 SDF NAV ILS RWY 35R IM U/S 2601301419-2607302111EST
1/30/26
1353Z
!SDF 01/409 SDF NAV ILS RWY 35L IM U/S 2601301353-2607302111EST
1/30/26
1138Z
3/16/26
1138Z
!SDF 01/407 SDF OBST TOWER LGT (ASN 2017-ASO-18034-OE) 380823N0854306W (2.2NM SSE SDF) 560FT (94FT AGL) U/S 2601301138-2603161138
FDC
2/23/26
1723Z
!FDC 6/8746 SDF ODP LOUISVILLE MUHAMMAD ALI INTL, LOUISVILLE, KY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
TAKEOFF OBSTACLE NOTES RWY 29, TEMPORARY MISCELLANEOUS EQUIPMENT, 1595FT FROM DER, 766FT RIGHT OF CENTERLINE, 64 AGL/541 MSL (2022-ASO-446-NRA), TEMPORARY CONSTRUCTION BATCH PLANT 1929FT FROM DER, 476FT RIGHT OF CENTERLINE, 70FT AGL/ 550FT MSL (2022-ASO-3172-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2602231723-2609061723EST
2/13/26
1406Z
!FDC 6/3926 SDF IAP LOUISVILLE MUHAMMAD ALI INTL, LOUISVILLE, KY.
ILS RWY 35R (CAT II-III), AMDT 5 ...
S-ILS 35R CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADAR ALITMETER. I-JJM INNER MARKER OUT OF SERVICE. 2602131406-2609251404EST
1/30/26
1450Z
!FDC 6/8856 SDF IAP LOUISVILLE MUHAMMAD ALI INTL, LOUISVILLE, KY.
ILS RWY 35L (CAT II-III) ...
S-ILS 35L CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADAR ALITMETER. I-JJM INNER MARKER OUT OF
SERVICE. 2601301450-2609111450EST
6/12/25
1457Z
!FDC 5/3389 SDF IAP LOUISVILLE MUHAMMAD ALI INTL, LOUISVILLE, KY.
RNAV (GPS) Y RWY 29, AMDT 1A...
CHANGE CHART PLAINVIEW NOTE: FROM PROCEDURE NA FOR ARRIVALS AT MIXKO ON V51 SOUTHBOUND TO PROCEDURE NA FOR ARRIVALS AT MIXKO ON V51.
2506121457-2706121457EST
Yes
ALL
LOUISVILLE REGIONAL ARPT AUTH
700 ADMINISTRATION DRIVE
LOUISVILLE, KY 40209
Phone: 502-380-8200
DAN MANN
700 ADMINISTRATION DRIVE
LOUISVILLE, KY 40209
Phone: 502-380-8200
LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF
SDF
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Freight
Avionics
Cargo Handling
Charter Service

Runway 11/29

7251 ft. x 150 ft.
CONC
Good
WC
HIGH

75,000lbs
170,000lbs
360,000lbs
850,000lbs
  Runway 11 Runway 29
True Heading 111°291°
Traffic Pattern Left Left
Markings BSC PIR
Markings Condition GOOD GOOD
Latitude 38° 10' 49"N 38° 10' 23"N
Longitude 85° 44' 50"W 85° 43' 26"W
Elevation 476' 480'
Threshold Crossing Height 65 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17L/35R

8578 ft. x 150 ft.
CONC
Good
GRVD
HIGH

75,000lbs
207,000lbs
360,000lbs
850,000lbs
  Runway 17L Runway 35R
True Heading 165°345°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 11' 14"N 38° 09' 52"N
Longitude 85° 43' 53"W 85° 43' 25"W
Elevation 501' 471'
Threshold Crossing Height 63 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17R/35L

11887 ft. x 150 ft.
CONC
Good
GRVD
HIGH

75,000lbs
207,000lbs
360,000lbs
850,000lbs
  Runway 17R Runway 35L
True Heading 165°345°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 11' 13"N 38° 09' 19"N
Longitude 85° 44' 56"W 85° 44' 18"W
Elevation 489' 461'
Threshold Crossing Height 64 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1BIRDS ON & INVOF ARPT.
A110-12TAIL HGT 65 FT OR GTR 24 HR PPR.
A110-14ANG: FAA GP 6 ACFT 24 HR PPR.
A110-2CTN: CONST IN PROG; FQT RWY & TWY CLOSURES PSBL.
A110-3ANG/123TAC RECON.
A110-5LINE UP & WAIT WAIVER IN EFCT SS-SR AT INT OF RWY 17R AT TWY B8 OR AT TWY A8 & INT OF RWY 35L AT TWY A OR AT TWY B.
A110-8ANG: DUTY HR 1200-2000Z/DT 1300-2100Z MON-THU; 1200-1800Z/DT 1300-1900Z FRI. APVL AUTH 123 AW/OGC; BASE OPS D741-4581/4584/ C502-413-4581/4584. ENG START & TAXI CLNC - DERBY OPS.
A30A-17LTWY E INTXN DEP 7700 FT AVBL.
A30A-17RSTD DEP POINTS AT TWY B8 & TWY A8. REQS USE OF RWY 17R EXTN. TKOF AT TWY B8 ASDA/TORA/TODA 10245 FT.
A30A-35LSTD DEP POINTS AT TWY A & TWY B; REQS USE OF RWY 35L EXTN; TKOF AT TWY A & TWY B ASDA/TORA/TODA 10250 FT.
A30A-35RTWY E2 INTXN DEP 6300 FT AVBL.
A39-11/29PCR VALUE: 720/R/B/W/T
A39-17L/35RPCR VALUE: 970/R/B/W/T
A39-17R/35LPCR VALUE: 770/R/A/W/T
E111EXISTED PRIOR TO 1959.
LOUISVILLE MUHAMMAD ALI INTL (ICAO: KSDF, IATA: SDF) is a public airport located in LOUISVILLE, KY, US.
