KSCH
SCHENECTADY COUNTY
PublicPUB

3 miles N of SCHENECTADY, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 51' 10"N 73° 55' 46"W
378' MSL
1378' MSL
14W
JET A, 100LL
BURLINGTON (BTV)
NEW YORK
BOSTON (ZBW)
7/11/24-8/8/24
KALB (9nm) VFR
6:51 AM EDT
Fog in vicinity
Broken 25,000'
Few 20,000'
10sm
58°F
56°F
29.99"Hg
330° 3kts
AO2 SLP154 VCFG E T01440133
KALB 191051Z 33003KT 10SM VCFG FEW200 BKN250 14/13 A2999 RMK AO2 SLP154 VCFG E T01440133
Add Your Business

KSCH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 121.3

AWOS-3

AWOS-3
518-399-6586
 119.275

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 121.3

FAA A/FD Pages

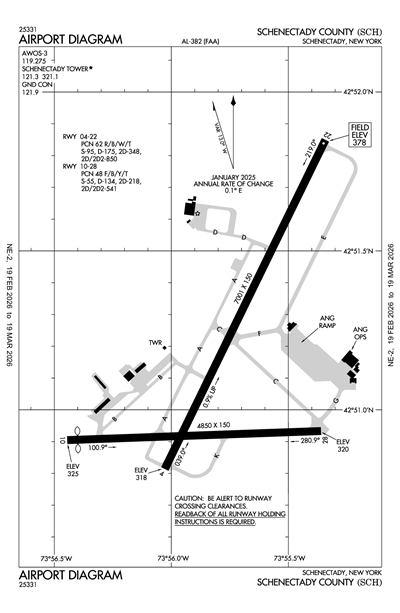

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KALB (9nm)
Thu, 9/19 5:24 AM EDT
Thu, 9/19 5:00 AM EDT - Fri, 9/20 2:00 AM EDT
VFR
5:00 AM EDT - 6:00 AM EDT
Shallow Fog
Few 20,000'
6sm
Calm
VFR
6:00 AM EDT - 8:00 AM EDT
Broken 25,000'
6sm
Calm
VFR
8:00 AM EDT - 8:00 PM EDT
Few 20,000'
6sm
VRB° 3kts
VFR
8:00 PM EDT - 2:00 AM EDT
Broken 25,000'
6sm
Calm
KALB 190924Z 1909/2006 00000KT P6SM MIFG FEW200
   FM191000 00000KT P6SM BKN250
   FM191200 VRB03KT P6SM FEW200
   FM200000 00000KT P6SM BKN250
KSCH
Domestic
9/18/241300Z !SCH 09/021 SCH AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 424919N0735158W (4.2NM SE SCH) SFC-400FT AGL DLY 1300-2100 2409181300-2409202100
9/18/240900Z !SCH 09/023 SCH AIRSPACE UNMANNED FREE BALLOON 425430N0740037W (4NM NW SCH) SFC-FL300 EB 2409180900-2409182100
9/17/241749Z !SCH 09/022 SCH RWY 04 RAI LGT U/S 2409171749-2409242000EST
8/28/241645Z !SCH 08/027 SCH AD AP BIRD ACT MIGRATORY 2408281645-2412012359
FDC
9/21/231251Z !FDC 3/3001 SCH IAP SCHENECTADY COUNTY, SCHENECTADY, NY.
ILS OR LOC RWY 4, AMDT 5G...
S-ILS 4 DA 588 HAT 250.
2309211251-2509211251EST
9/21/231251Z !FDC 3/3000 SCH IAP SCHENECTADY COUNTY, SCHENECTADY, NY.
RNAV (GPS) RWY 28, ORIG-F...
LNAV/VNAV DA 777/HAT 454, LNAV/VNAV VISIBILTIES 1 3/8 SM ALL CATS.
2309211251-2509211251EST
Yes
0730-2230
SCHENECTADY COUNTY
COUNTY OFFICE BLDG
SCHENECTADY, NY 12305-2114
Phone: 518-356-5344
MICHAEL SHADEWALD
21 TOWER ROAD
SCOTIA, NY 12302-3487
Phone: (518) 399-0111
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
SCH
--
WHEN ATCT CLSD, ACTVT MALSR RWY 04; PAPI RWY 04, 10, 22 & 28; HIRL RWY 04/22; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
72
8
9
0
0
0
Minor
Major
None
Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 04/22

7001 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
49 /F/C/X/T
95,000lbs
175,000lbs
348,000lbs
850,000lbs
  Runway 04 Runway 22
True Heading 26°206°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 42° 50' 49"N 42° 51' 51"N
Longitude 73° 56' 02"W 73° 55' 20"W
Elevation 318' 378'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No No

Runway 10/28

4850 ft. x 150 ft.
ASPH
Good
GRVD
MED
36 /F/C/X/T
55,000lbs
134,000lbs
218,000lbs
541,000lbs
  Runway 10 Runway 28
True Heading 88°268°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 50' 54"N 42° 50' 56"N
Longitude 73° 56' 27"W 73° 55' 22"W
Elevation 325' 320'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes
A110-1LANDING FEE FOR INTINRNT MULTI-ENGINE ACFT REQUESTING TWR SVC 0330Z-1230Z.
A110-10MILITARY: ANG APRON: ORANGE DASHED WINGTIP CLNC LINES BOTH SIDES OF YELLOW CENTER TAXILINE. DASHED WINGTIP LINES PROVIDE POSITIVE, CLEARLY IDENTIFIABLE OBST CLNC FOR TAXIING ACFT. ANY OBJECT PARKED ON BACK SIDE OF LINES PROVIDE NO WINGTIP CLNC ISSUE.
A110-11NO ULTRA-LIGHT OPERATONS IN CLASS D AIRSPACE WITHOUT APPROV FM ATCT.
A110-12FLT NOTIFICATION SVC (ADCUS) AVBL.
A110-13FUEL: A++ (MIL).
A110-14FOR CD CTC ALBANY APCH AT 518-862-2299.
A110-15MILITARY: ANG: OPR 1030-2000Z++ MON-FRI, CLSD WKND AND FED HOL. SCHENECTADY COUNTY AIRPORT FONE NR (518)399-0377. COMSEC STORAGE AVBL FOR TRAN CREWS.
A110-16MILITARY: CSTMS/AGG/IMG: 1300-2100Z++ MON-FRI, FONE PRIOR 2000Z++ PRECEDING WKD, C518-431-0200, C800-973-2867.
A110-2NO UPDATED FIELD OR BRAKING ACTION REPORTS AVBL BTN 0330Z-1230Z.
A110-360 FT DROPOFF 150 FT FM RY 28 END.
A110-4NOISE ABATEMENT PROC IN EFFECT FOR LRGE ACFT REMAINING IN PATTERN CTC AIRFIELD MANAGER FOR DETAILS..
A110-5BIRDS ON & INVOF ARPT.
A110-6MILITARY C130 PATTERN OPERATIONS CONDUCTED DAILY.
A110-7MILITARY: ANG: PPR BASE OPS DURG DUTY HR DSN 344-2621, C518-344-2621; OT COMD POST DSN 344-2420, C518-344-2420.
A110-8MILITARY: CAUTION: BASH PHASE II PERIOD (15 MAR-15 MAY) AND (1 JUL-15 NOV). BIRD WATCH COND (BWC) SVR: TKOFF, LDG & LCL TRNG PROH UNLESS MSN ESTNL; BWC MDT: MULT APCH PROH, DEP & FULL-STOP ALLOWED IF RTE AVOIDS BIRD ACT; CTC ANG AFLD OPS (CALL-SIGN "SKIER OPS") FOR CURRENT BWC.
SCHENECTADY COUNTY (ICAO: KSCH, IATA: SCH) is a public airport located in SCHENECTADY, NY.
