KSCA
ICAO KSCALocal SCA
SIDNEY MUNI
PublicPUB

3 miles S of SIDNEY, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 14' 29"N 84° 08' 52"W
Elevation
1044' MSL
Pattern Alt
1844' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A, 100LL
FSS
DAYTON (DAY)
Sectional
DETROIT
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KAXV (17nm) LIFR
8:55 PM EST
Light Rain
Overcast 200'
3sm
39°F
39°F
30.15"Hg
010° 7kts
AO2 P0003
METAR KAXV 040155Z AUTO 01007KT 3SM -RA OVC002 04/04 A3015 RMK AO2 P0003
+ Add Your Business

KSCA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.425
(937) 492-3683

Common

CTAF 123.05
ACTVT REIL RWY 10 & 28; MIRL RWY 10/28 - CTAF. PAPI RWY 10 & 28 OPR CONSLY.
UNICOM 123.05

Approach

COLUMBUS APPROACH 134.45

Departure

COLUMBUS DEPARTURE 134.45

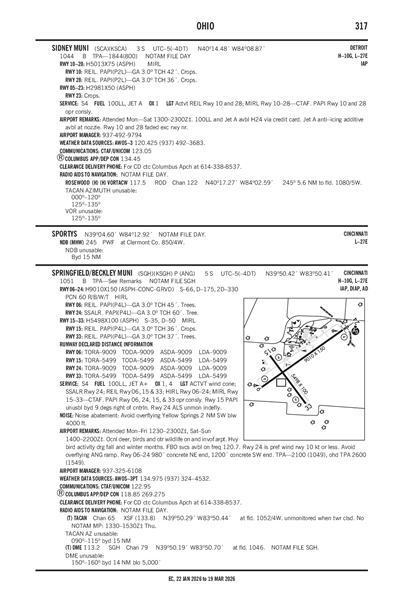

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDAY (20nm)
Tue, 3/3 6:39 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
7:00 PM EST - 10:00 PM EST
Light Rain and Mist
Overcast 900'
3sm
210° 8kts
IFR
Temporary 7:00 PM EST - 10:00 PM EST
Light Rain and Mist
Overcast 500'
2sm
Calm
IFR
10:00 PM EST - 4:00 AM EST
Mist
Overcast 600'
2sm
360° 4kts
LIFR
10:00 PM EST - 4:00 AM EST
Light Rain and Mist
Overcast 300'
1sm
Calm
LIFR
4:00 AM EST - 10:00 AM EST
Light Rain and Mist
Overcast 300'
1.5sm
050° 4kts
IFR
10:00 AM EST - 4:00 PM EST
Light Rain and Mist
Overcast 800'
2sm
080° 5kts
IFR
10:00 AM EST - 4:00 PM EST
Light Rain and Mist
Overcast 500'
1.5sm
Calm
IFR
4:00 PM EST - 7:00 PM EST
Light Rain and Mist
Overcast 800'
4sm
120° 5kts
TAF KDAY 032339Z 0400/0424 21008KT 3SM -RA BR OVC009
   TEMPO 0400/0403 2SM -RA BR OVC005
   FM040300 36004KT 2SM BR OVC006
   PROB30 0403/0409 1SM -RA BR OVC003
   FM040900 05004KT 1 1/2SM -RA BR OVC003
   FM041500 08005KT 2SM -RA BR OVC008
   PROB30 0415/0421 1 1/2SM -RA BR OVC005
   FM042100 12005KT 4SM -RA BR OVC008
KSCA
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
2036Z
2/27/26
2359Z
!DAY 02/366 SCA OBST TOWER LGT (ASR 1019217) 402354.00N0840421.00W (10.1NM NNE SCA) 1470.5FT (425.5FT AGL) U/S 2602242036-2602272359
1/20/26
1928Z
4/20/26
2359Z
!DAY 01/272 SCA OBST TOWER LGT (ASR 1208050) 401749.00N0840948.00W (3.4NM NNW SCA) 1282.8FT (273.0FT AGL) U/S 2601201928-2604202359
No
MON-SAT 0800-1800
CITY OF SIDNEY
201 W POPLAR ST
SIDNEY, OH 45365
Phone: 937-498-2335
MIKE CHAPPIE
14833 SIDNEY-PLATTSVILLE RD
SIDNEY, OH 45365
Phone: 937-492-9794
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
DAY
--
ACTVT REIL RWY 10 & 28; MIRL RWY 10/28 - CTAF. PAPI RWY 10 & 28 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Pilot Instruction
Aircraft Rental

Runway 05/23

2981 ft. x 50 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 40°220°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 14' 12"N 40° 14' 34"N
Longitude 84° 09' 19"W 84° 08' 54"W
Elevation 1,035' 1,040'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 10/28

5013 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 94°274°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 40° 14' 34"N 40° 14' 30"N
Longitude 84° 09' 16"W 84° 08' 12"W
Elevation 1,040' 1,041'
Threshold Crossing Height 42 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC COLUMBUS APCH AT 614-338-8537.
A42-10_CONDFADED EXC RWY NR.
A42-28_CONDFADED EXC RWY NR.
A57-10TRRN/CROPS IN APCH SFC.
A58-107 FT CROPS, 0-200 FT DIST, 215 FT L.
A58-238 FT CROPS AT PAVEMENT END.
A58-2815 FT CROPS ON SLP, 0-200 FT DIST, 110 FT L/R.
A70-100LL100LL & JET A AVBL H24 VIA CREDIT CARD.
A70-AANTI-ICING ADDITIVE AVBL AT NOZZLE.
A75-HPRIOR CDN RQRD FOR TSNT HNGR.
A81-APTACTVT REIL RWY 10 & 28; MIRL RWY 10/28 - CTAF. PAPI RWY 10 & 28 OPR CONSLY.
SIDNEY MUNI (ICAO: KSCA, IATA: SCA) is a public airport located in SIDNEY, OH, US.
