iFlightPlanner



...
SHELBY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSBX
ICAO KSBXIATA SBXLocal SBX
SHELBY
PublicPUB

2 miles N of SHELBY, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 32' 26"N 111° 52' 17"W
Elevation
3443' MSL
Pattern Alt
4443' MSL
Mag Variation
12°E
Declination
15°E
Fuel
JET A (FSII), 100LL
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KSBX VFR
9:35 PM MST
Clear
10sm
46°F
18°F
29.90"Hg
250° 6kts
AO2
METAR KSBX 040435Z AUTO 25006KT 10SM CLR 08/M08 A2990 RMK AO2
+ Add Your Business

KSBX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 128.325
(406) 434-2542

Common

CTAF 122.8
ACTVT PAPI RWY 05 & 23; MIRL RWY 05/23 & 11/29-CTAF.
UNICOM 122.8

Center

SALT LAKE CENTER 133.4
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE CITY ARTCC ( ZLC) ON FREQS 133.4/285.4 (GREAT FALLS RCAG).

Flight Service

Flight Service 122.2
(GTF), COMMUNICATIONS PRVDD BY GREAT FALLS RADIO ON FREQ 122.2 (CUT BANK RCO).

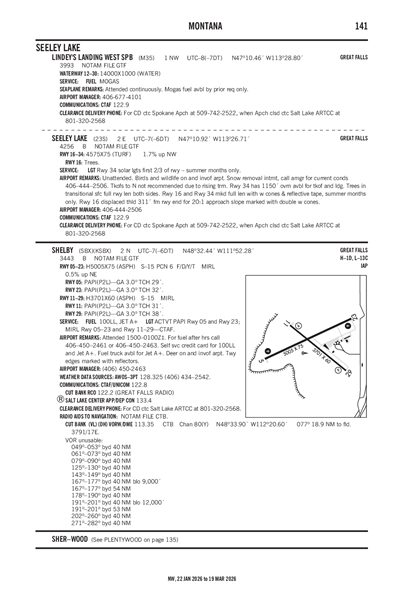

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCTB (21nm)
Tue, 3/3 4:20 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Broken 25,000'
Scattered 15,000'
6sm
250° 20kts
Gusts 28kts
VFR
7:00 PM MST - 7:00 AM MST
Broken 25,000'
Scattered 15,000'
6sm
220° 12kts
Gusts 20kts
VFR
7:00 AM MST - 1:00 PM MST
Broken 15,000'
Scattered 9,000'
6sm
230° 11kts
VFR
1:00 PM MST - 5:00 PM MST
Showers in vicinity
Broken 9,000'
Scattered 5,000'
6sm
VRB° 6kts
TAF KCTB 032320Z 0400/0424 25020G28KT P6SM SCT150 BKN250
   FM040200 22012G20KT P6SM SCT150 BKN250
   FM041400 23011KT P6SM SCT090 BKN150
   FM042000 VRB06KT P6SM VCSH SCT050 BKN090
KSBX
No NOTAM Available
No
MON-FRI 0800-1800
TOOLE COUNTY
226 1ST ST. SOUTH
SHELBY, MT 59474
Phone: 406-424-8310
JERRY LARSON JR
PO BOX 210
SHELBY, MT 59474
Phone: (406) 450-2463
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
ACTVT PAPI RWY 05 & 23; MIRL RWY 05/23 & 11/29-CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 05/23

5005 ft. x 75 ft.
ASPH
Excellent
NONE
MED
6/F/D/Y/T
15,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 65°245°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 32' 18"N 48° 32' 39"N
Longitude 111° 52' 53"W 111° 51' 46"W
Elevation 3,418' 3,443'
Threshold Crossing Height 29 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

3701 ft. x 60 ft.
ASPH
Excellent
NONE
MED

15,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 129°309°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 48° 32' 35"N 48° 32' 12"N
Longitude 111° 52' 34"W 111° 51' 51"W
Elevation 3,420' 3,429'
Threshold Crossing Height 31 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER ON & INVOF ARPT.
A110-2TWY EDGES MKD WITH REFLECTORS.
A110-4FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A70-100LLFOR FUEL AFTER HRS CALL 406-450-2461 OR 406-450-2463. SELF SVC CREDIT CARD FOR 100LL & JET A+. FUEL TRUCK AVBL FOR JET A+.
A81-APTACTVT PAPI RWY 05 & 23; MIRL RWY 05/23 & 11/29-CTAF.
SHELBY (ICAO: KSBX, IATA: SBX) is a public airport located in SHELBY, MT, US.
