KSBN
SOUTH BEND INTL
PublicPUB

3 miles NW of SOUTH BEND, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 42' 30"N 86° 19' 02"W
798' MSL
1798' MSL
05W
JET A, 100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
7/11/24-8/8/24
KSBN VFR
6:54 AM EDT
Clear
10sm
59°F
53°F
29.99"Hg
Calm
AO2 SLP152 T01500117 $
KSBN 191054Z 00000KT 10SM CLR 15/12 A2999 RMK AO2 SLP152 T01500117 $
Add Your Business

KSBN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 135.675

ATIS

ATIS
 120.675

ASOS

ASOS
574-251-2652
 120.675

Approach/Departure

APCH/P DEP/P
100-269
 132.05
APCH/P DEP/P IC
270-099
 118.55
APCH/S DEP/S
100-269
 124.1

Clearance Delivery

CD/P
 121.9

Ground

GND/P
 121.7

Tower

LCL/P
 135.675

Other

CLASS C
270-099
 118.55
CLASS C
100-269
 132.05
CLASS C/S
100-269
 124.1

FAA A/FD Pages

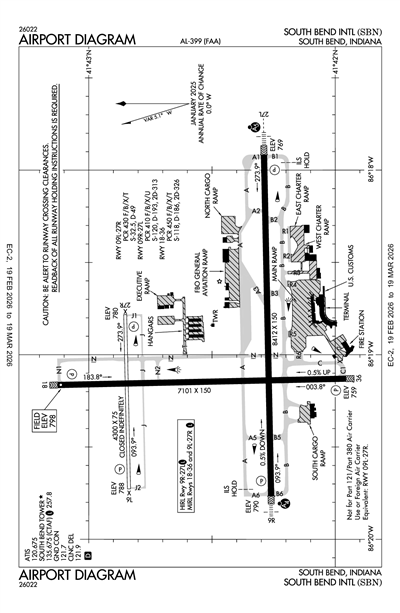

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSBN
Thu, 9/19 1:21 AM EDT
Thu, 9/19 2:00 AM EDT - Fri, 9/20 2:00 AM EDT
VFR
2:00 AM EDT - 2:00 AM EDT
Scattered 25,000'
6sm
090° 4kts
KSBN 190521Z 1906/2006 09004KT P6SM SCT250
KSBN
Domestic
9/18/241200Z !SBN 09/063 SBN RWY 09R/27L CLSD EXC XNG 2409181200-2409181900
9/18/241200Z !SBN 09/058 SBN RWY 27L ALS U/S 2409181200-2409181900
9/18/241200Z !SBN 09/057 SBN RWY 09R ALS U/S 2409181200-2409181900
9/18/241200Z !SBN 09/056 SBN NAV ILS RWY 27L U/S 2409181200-2409181900
9/18/241200Z !SBN 09/055 SBN NAV ILS RWY 09R U/S 2409181200-2409181900
9/17/241300Z !SBN 09/054 SBN OBST TOWER LGT (ASR 1030273) 413800.60N0861152.70W (7.0NM SE SBN) 1158.8FT (240.8FT AGL) U/S 2409171300-2410172359
9/13/241747Z !SBN 09/046 SBN TWY B SFC MARKINGS BTN TWY R2 AND TWY R5 NOT STD 2409131747-2410012200
9/13/241746Z !SBN 09/045 SBN TWY B3 SFC MARKINGS NOT STD 2409131746-2410012200
9/13/241528Z !SBN 09/044 SBN APRON MAIN RAMP BTN GATE 8 AND SOUTH GA MAIN RAMP EDGE MARKINGS NOT STD 2409131528-2410012200
9/5/241824Z !SBN 09/023 SBN APRON MAIN RAMP BTN GATE 8 AND SOUTH GA MAINT RAMP CL MARKINGS NOT STD 2409051824-2410012200
9/5/241627Z !SBN 09/019 SBN RWY 18/36 LEAD OFF CL MARKING MISSING 2409051627-2409302200
9/5/241616Z !SBN 09/016 SBN TWY N2 HLDG PSN MARKINGS FOR RWY 18/36 FADED 2409051616-2409302200
9/4/240406Z !SBN 09/007 SBN OBST TOWER LGT (ASR 1250448) 414232.40N0861730.20W (1.1NM E SBN) 909.8FT (153.9FT AGL) U/S 2409040406-2410042359
9/4/240034Z !SBN 09/006 SBN OBST TOWER LGT (ASR 1204404) 414337.40N0862431.00W (4.2NM WNW SBN) 1149.0FT (372.0FT AGL) U/S 2409040034-2501020034
9/3/241153Z !SBN 09/003 SBN RWY 09L/27R CLSD 2409031153-2412312200
9/3/241152Z !SBN 09/002 SBN TWY J, J1, J2 CLSD 2409031152-2412312200
8/9/240115Z !SBN 08/018 SBN OBST TOWER LGT (ASR 1062735) 413355.20N0862524.00W (9.8NM SSW SBN) 1044.0FT (316.9FT AGL) U/S 2408090115-2411060400
FDC
9/6/241958Z !FDC 4/1825 SBN IAP SOUTH BEND INTL, SOUTH BEND, IN.
ILS OR LOC RWY 27L, AMDT 36B...
VOR RWY 18, AMDT 7F...
ILS RWY 27L (SA CAT I - II), AMDT 36B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GIJ VORTAC UNMONITORED. 2409061958-2410061958EST
Yes
ALL
ST JOSEPH COUNTY ARPT AUTHORITY
4477 PROGRESS DRIVE
SOUTH BEND, IN 46628
Phone: 574-282-4590
MICHAEL A. DAIGLE
4477 PROGRESS DRIVE
SOUTH BEND, IN 46628
Phone: 574-282-4590
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
SBN
--
WHEN ATCT CLSD; ACTVT & INCR INTST MALSF RWY 09R; MALSR RWY 27L; HIRL RWY 09R/27L; MIRL RWY 18/36; TWY EXC TWY J, J1, J2 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
37
17
5
1
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09L/27R

4300 ft. x 75 ft.
ASPH
Good
NONE
MED
10 /F/B/X/T
32,000lbs
49,000lbs
--
--
  Runway 09L Runway 27R
True Heading 89°269°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 42' 50"N 41° 42' 51"N
Longitude 86° 19' 44"W 86° 18' 47"W
Elevation 788' 780'
Threshold Crossing Height 44 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09R/27L

8412 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
49 /F/B/X/T
120,000lbs
193,000lbs
313,000lbs
--
  Runway 09R Runway 27L
True Heading 89°269°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 42' 16"N 41° 42' 17"N
Longitude 86° 19' 46"W 86° 17' 55"W
Elevation 790' 769'
Threshold Crossing Height 56 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

7101 ft. x 150 ft.
ASPH
Good
GRVD
MED
47 /F/B/X/T
118,000lbs
186,000lbs
326,000lbs
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 43' 08"N 41° 41' 57"N
Longitude 86° 19' 10"W 86° 19' 08"W
Elevation 798' 759'
Threshold Crossing Height 52 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BIRDS ON & INVOF ARPT.
A110-11TWY J, J1 & J2 CLSD WHEN TWR CLSD.
A110-12FOR FUEL & SVCS - 122.95 OR 131.7.
A110-15FOR CD CTC SOUTH BEND APCH AT 574-251-2609. WHEN SOUTH BEND APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-16ACR RAMP RSTRD TO SKED COML & WINGSPAN GTR THAN 100 FT; ALL OTR 24 HR PPR.
A110-17INDEX C AVAILABLE UPON REQ
A110-4TWYS J, J1, J2 & T NOT AVBL TO ACR OPS WITH MORE THAN 9 PAX SEATS OR UNSKED ACR AT LEAST 31 PAX SEATS.
A110-5LINE OF SIGHT BTN RWY INTS RSTRD.
A110-7TWY B BTN B1 & B2 RSTRD TO ACFT NO LRGR THAN B757 OR WINGSPAN LRGR THAN 125 FT.
SOUTH BEND INTL (ICAO: KSBN, IATA: SBN) is a public airport located in SOUTH BEND, IN.
