No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSBM
SHEBOYGAN COUNTY MEML
PublicPUB

3 miles NW of SHEBOYGAN, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 46' 11"N 87° 51' 06"W
755' MSL
1755' MSL
02W
JET A (FSII), 100LL
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
7/11/24-8/8/24
KSBM LIFR
5:53 AM CDT
Fog
Obscured
0.25sm
54°F
53°F
29.97"Hg
Calm
AO2 SLP146 T01220117
KSBM 191053Z AUTO 00000KT M1/4SM FG VV001 12/12 A2997 RMK AO2 SLP146 T01220117
Add Your Business

KSBM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
920-467-0744
 118.425

FAA A/FD Pages

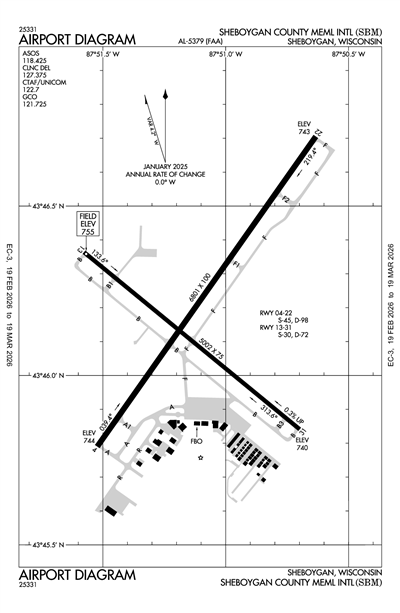

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSBM
Thu, 9/19 3:51 AM CDT
Thu, 9/19 4:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
4:00 AM CDT - 8:00 AM CDT
Scattered 18,000'
6sm
Calm
IFR
Temporary 4:00 AM CDT - 7:00 AM CDT
Mist
No Clouds
1sm
Calm
VFR
8:00 AM CDT - 3:00 PM CDT
Few 24,000'
6sm
VRB° 4kts
VFR
3:00 PM CDT - 9:00 PM CDT
Few 25,000'
6sm
160° 10kts
VFR
9:00 PM CDT - 1:00 AM CDT
Scattered 25,000'
6sm
170° 6kts
MVFR
12:00 AM CDT - 1:00 AM CDT
Light Showers and Rain
Overcast 2,500'
4sm
Calm
KSBM 190851Z 1909/2006 00000KT P6SM SCT180
   TEMPO 1909/1912 1SM BR
   FM191300 VRB04KT P6SM FEW240
   FM192000 16010KT P6SM FEW250
   FM200200 17006KT P6SM SCT250
   PROB30 2005/2006 4SM -SHRA OVC025
KSBM
Domestic
9/13/242013Z !SBM 09/007 SBM AD AP MOBILE 100LL FUEL NOT AVBL 2409132013-2409182200
9/11/241736Z !SBM 09/005 SBM OBST TOWER LGT (ASR 1050095) 434435.00N0880338.00W (9.2NM W SBM) 1489.8FT (319.9FT AGL) U/S 2409111736-2409252359
9/5/240341Z !SBM 09/002 SBM OBST TOWER LGT (ASR 1046287) 435241.00N0874619.00W (7.4NM NNE SBM) 869.8FT (194.9FT AGL) U/S 2409050341-2412312359
8/21/240117Z !SBM 08/008 SBM OBST TOWER LGT (ASR 1242044) 434538.20N0875515.70W (3.0NM W SBM) 960.0FT (165.0FT AGL) U/S 2408210117-2411201159
8/19/242040Z !SBM 08/006 SBM OBST TOWER LGT (ASN 2023-AGL-2513-OE) 434109N0874543W (6.4NM SE SBM) 1010FT (290FT AGL) U/S 2408192040-2410102359
8/19/241840Z !SBM 08/005 SBM OBST TOWER LGT (ASR 1250409) 434214.30N0880830.50W (13.2NM WSW SBM) 1343.8FT (259.8FT AGL) U/S 2408191840-2410192359
5/6/241200Z !SBM 05/002 SBM AD AP ALL SFC WIP GRASS CUTTING DLY 1200-2200 2405061200-2410312200
FDC
9/13/241344Z !FDC 4/4994 SBM IAP SHEBOYGAN COUNTY MEML INTL, SHEBOYGAN, WI.
ILS OR LOC RWY 22, AMDT 6...
RNAV (GPS) RWY 13, ORIG-C...
RNAV (GPS) RWY 22, AMDT 4...
RNAV (GPS) RWY 31, ORIG-D...
RNAV (GPS) RWY 4, AMDT 3C...
CIRCLING CAT C MDA 1340/HAA 585.
2409131344-2609131344EST
No
DAWN-DUSK
SHEBOYGAN COUNTY
N6193 RESOURCE DRIVE
SHEBOYGAN FALLS, WI 53085
Phone: 920-467-2978
MATTHEW GRENOBLE
N6193 RESOURCE DR.
SHEBOYGAN FALLS, WI 53085
Phone: 920-467-2978
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
SBM
--
ACTVT MALSR RWY 22; REIL RWY 04; PAPI RWY 04 & 22 - CTAF. HIRL RWY 04/22 & MIRL RWY 13/31 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT - CTAF. PAPI RWY 13 & 31 OPRS CONSLY.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
51
7
7
0
0
0
Major
Major
None
None
None

Runway 04/22

6800 ft. x 100 ft.
CONC
Good
GRVD
HIGH

45,000lbs
98,000lbs
--
--
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 43° 45' 47"N 43° 46' 42"N
Longitude 87° 51' 31"W 87° 50' 38"W
Elevation 744' 743'
Threshold Crossing Height 52 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 13/31

5002 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
72,000lbs
--
--
  Runway 13 Runway 31
True Heading 130°310°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 46' 22"N 43° 45' 50"N
Longitude 87° 51' 35"W 87° 50' 42"W
Elevation 755' 740'
Threshold Crossing Height 34 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2ULTRALIGHT ACTVTY ON & IN VCNTY OF ARPT.
A110-3WATERFOWL & DEER ON & INVOF ARPT.
A110-5GCO AVBL ON FREQ 121.725 THRU FLT SVCS.
A110-6US CUST AND BDR PROTECTION, PPR US CSTMS SVC MON-FRI 1100 - 1900 CALL 920-335-2225.
SHEBOYGAN COUNTY MEML (ICAO: KSBM, IATA: SBM) is a public airport located in SHEBOYGAN, WI.
