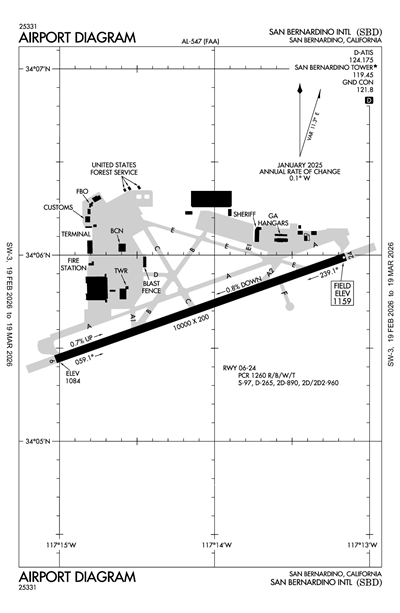

SAN BERNARDINO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSBD
ICAO KSBDIATA SBDLocal SBD
SAN BERNARDINO INTL
PublicPUB

2 miles SE of SAN BERNARDINO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 05' 43"N 117° 14' 06"W
Elevation
1159' MSL
Pattern Alt
1959' MSL
Mag Variation
11°E
Declination
13°E
Fuel
JET A, 100LL
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KSBD VFR
9:40 PM PST
Clear
10sm
59°F
46°F
30.02"Hg
130° 4kts
AO2 T01480079
METAR KSBD 040540Z AUTO 13004KT 10SM CLR 15/08 A3002 RMK AO2 T01480079
+ Add Your Business

KSBD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 124.175
AWOS-3 (909) 382-0067

Common

CTAF 119.45
WHEN ATCT CLSD HIRL PRESET LOW INTST, TO INCREASE INTST AND ACTVT REILS RYS 06 & 24 ACTVT - CTAF. PAPI RYS 06 AND RY 24 OPER CONTINUOUSLY.; REDLANDS ARPT (REI) 4.5 NM EAST TPA 2500 MSL CTAF/AUNICOM 123.05. AEROBATIC AREA 6.2 NM EAST 3500-7000 MSL. RMN VIGILANT TO SEE AND AVOID.
UNICOM 122.975
REDLANDS ARPT (REI) 4.5 NM EAST TPA 2500 MSL CTAF/AUNICOM 123.05. AEROBATIC AREA 6.2 NM EAST 3500-7000 MSL. RMN VIGILANT TO SEE AND AVOID.

Ground

SAN BERNARDINO GROUND 121.8
0700-2100

Tower

SAN BERNARDINO TOWER 119.45
0700-2100

Arrival

SETER STAR 127.0
ZIGGY STAR 127.0

Approach

SOCAL APPROACH 127.0
NORTH-NE
SOCAL APPROACH 134.0
NORTHEAST-SOUTH
SOCAL APPROACH 135.4
SOUTH-SW

Departure

SOCAL DEPARTURE 127.0
NORTH-NE
SOCAL DEPARTURE 134.0
NORTHEAST-SOUTH
SOCAL DEPARTURE 135.4
SOUTH-SW

Other

CLASS C 125.5
SW-NORTH
CLASS C 127.0
NORTH-NE
CLASS C 134.0
NORTHEAST-SOUTH

Terminal Area Forecast

KSBD
Tue, 3/3 9:30 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 1:00 PM PST
Scattered 25,000'
6sm
VRB° 5kts
VFR
1:00 PM PST - 10:00 PM PST
Scattered 25,000'
6sm
290° 7kts
TAF KSBD 040530Z 0406/0506 VRB05KT P6SM SCT250
   FM042100 29007KT P6SM SCT250
KSBD
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
0730Z
3/4/26
1530Z
Runway!SBD 03/008 SBD RWY 06 PAPI U/S 2603040730-2603041530
3/4/26
0730Z
3/4/26
1530Z
!SBD 03/007 SBD NAV ILS RWY 06 U/S 2603040730-2603041530
3/3/26
1530Z
5/15/26
2200Z
Runway!SBD 02/085 SBD RWY 06/24 NE 844FT CLSD. DECLARED DIST:
RWY 06 TORA 8756FT TODA 8756FT ASDA 8756FT LDA 8756FT.
RWY 24 TORA 9156FT TODA 9156FT ASDA 9156FT LDA 9156FT. 2603031530-2605152200
3/3/26
1530Z
Runway!SBD 02/084 SBD RWY 24 NE 200FT CL MARKING NOT STD 2603031530-2605152200EST
3/3/26
0945Z
5/15/26
2300Z
Runway!SBD 03/006 SBD RWY 06 7000FT DIST REMAINING SIGN MISSING 2603030945-2605152300
3/3/26
0730Z
Runway!SBD 02/081 SBD RWY 24 RWY END ID LGT U/S 2603030730-2605152300EST
3/3/26
0730Z
Runway!SBD 02/080 SBD RWY 24 PAPI U/S 2603030730-2605152200EST
3/3/26
0730Z
!SBD 02/078 SBD TWY A BTN APCH END RWY 24 AND TWY E CLSD 2603030730-2605152200EST
3/3/26
0730Z
3/4/26
1530Z
Runway!SBD 02/076 SBD RWY 06/24 CLSD DLY 0730-1530 2603030730-2603041530
2/24/26
1600Z
3/24/26
0100Z
!SBD 02/073 SBD OBST CRANE (ASN UNKNOWN) 340454N1171431W (.9NM S SBD) 1292FT (190FT AGL) FLAGGED AND LGTD DLY 1600-0100 2602241600-2603240100
2/5/26
1957Z
!SBD 02/024 SBD NAV ILS RWY 06 PETIS LOM NOT MNT 2602051957-2603182359EST
2/2/26
0031Z
3/19/26
0030Z
!SBD 02/001 SBD OBST TOWER LGT (ASR 1031401) 340536.00N1171802.00W (3.3NM W SBD) 1234.9FT (214.9FT AGL) U/S 2602020031-2603190030
1/30/26
1811Z
5/29/26
2359Z
!SBD 01/088 SBD OBST TOWER LGT (ASR 1014753) 340726.10N1171419.20W (1.7NM N SBD) 1317.9FT (198.8FT AGL) U/S 2601301811-2605292359
1/30/26
1811Z
5/29/26
2359Z
!SBD 01/087 SBD OBST TOWER LGT (ASR 1014752) 340728.60N1171415.80W (1.8NM N SBD) 1323.8FT (198.8FT AGL) U/S 2601301811-2605292359
1/30/26
1810Z
5/29/26
2359Z
!SBD 01/086 SBD OBST TOWER LGT (ASR 1014751) 340727.30N1171417.50W (1.7NM N SBD) 1320.9FT (198.8FT AGL) U/S 2601301810-2605292359
FDC
3/3/26
0100Z
6/30/26
2359Z
!FDC 6/1905 SBD SPECIAL IAP SAN BERNARDINO INTL, SAN BERNARDINO, CA.
RNAV VISUAL RWY 24, ORIG-A...MASPV TO RW24 VNAV NA. PROCEED VISUALLY
FROM MASPV. 240/2 NM FROM MASPV.TEMP DISPLACED THRESHOLD PROCEDURE
844 FT (340557.05N/1171319.00W}
2603030100-2606302359
3/3/26
0100Z
6/30/26
2359Z
!FDC 6/1904 SBD IAP SAN BERNARDINO INTL, SAN BERNARDINO, CA.
RNAV (RNP) RWY 24, ORIG... OTS UFN.
REASON: TEMP DISPLACED THRESHOLD
2603030100-2606302359
2/24/26
1237Z
!FDC 6/9045 SBD ODP SAN BERNARDINO INTL, SAN BERNARDINO, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF MINIMUMS: RWY 6, CAT A, B, STANDARD WITH A MINIMUM CLIMB OF 340FT PER NM TO 3700. CAT C, D, STANDARD WITH A MINIMUM CLIMB OF 480FT PER NM TO 4600. RWY 24, STANDARD WITH A MINIMUM CLIMB OF 412 FT PER NM TO 3100. ALL OTHER DATA REMAINS AS PUBLISHED. 2602241237-2610061237EST
Yes
MON-SUN 0700-2100
SAN BERNARDINO INTL AIRPORT AUTH
1601 E 3RD STREET
SAN BERNARDINO, CA 92408
Phone: 909-382-4100
JONATHAN GALVAN
1601 EAST 3RD STREET
SAN BERNARDINO, CA 92408
Phone: 909-382-4100
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
SBD
--
WHEN ATCT CLSD HIRL PRESET LOW INTST, TO INCREASE INTST AND ACTVT REILS RYS 06 & 24 ACTVT - CTAF. PAPI RYS 06 AND RY 24 OPER CONTINUOUSLY.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Air Freight
Avionics
Cargo Handling

Runway 06/24

10000 ft. x 200 ft.
CONC
Excellent
GRVD
HIGH

97,000lbs
265,000lbs
890,000lbs
960,000lbs
  Runway 06 Runway 24
True Heading 70°250°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 05' 27"N 34° 05' 60"N
Longitude 117° 15' 02"W 117° 13' 10"W
Elevation 1,084' 1,159'
Threshold Crossing Height 52 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-12RY 06/24 STRENGTH RATED FOR THE A380 AT 1,300,000 LBS.
A110-13PERIODIC LIVE FIREFIGHTING TRAINING PRODUCING SMOKE AND LIGHT EMMISIONS APPROX 6,000 FT NE OF RY 6 THLD.
A110-14ATCT NON VISIBLE AREA ON TWY ALPHA 425 FT WEST OF TWY ALPHA 1.
A110-15AFTER HOURS GENERAL AVIATION ACCESS AND FUEL AVBL WITH PPR CALL FIXED BASE OPERATORS AT 909-382-6068.
A110-16AIRFIELD SFC COND NOT MNT BTN THE HRS 2000-0500.
A110-17TWY A, A1, E, ACFT WINGSPAN MORE THAN 171 FT USE INBOARD ENGS DRG TAX.
A110-18FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-19REDLANDS ARPT (REI) 4.5 NM EAST TPA 2500 MSL CTAF/AUNICOM 123.05. AEROBATIC AREA 6.2 NM EAST 3500-7000 MSL. RMN VIGILANT TO SEE AND AVOID.
A110-2HIGH TERRAIN N AND E OF APT.
A110-3RY 06 DESIGNATED CALM WIND RY.
A110-6FIRE FIGHTING ACFT CTC US FOREST SVC TANKER BASE ON GND FREQ 123.975.
A39-06/24PCR VALUE: 1260/R/B/W/T
A81-APTWHEN ATCT CLSD HIRL PRESET LOW INTST, TO INCREASE INTST AND ACTVT REILS RYS 06 & 24 ACTVT - CTAF. PAPI RYS 06 AND RY 24 OPER CONTINUOUSLY.
SAN BERNARDINO INTL (ICAO: KSBD, IATA: SBD) is a public airport located in SAN BERNARDINO, CA, US.
