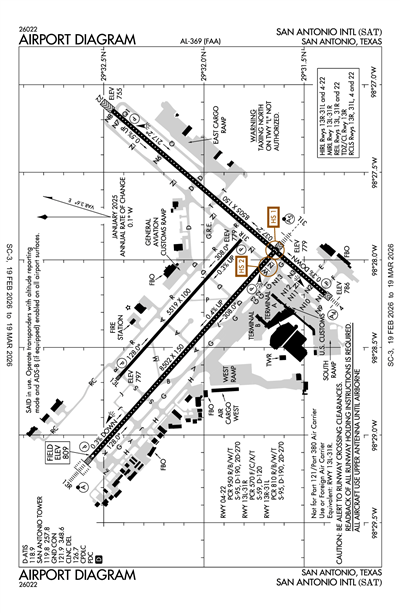

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSAT
SAN ANTONIO INTL
PublicPUB

7 miles N of SAN ANTONIO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 32' 02"N 98° 28' 09"W
809' MSL
1809' MSL
04E
JET A, 100LL
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KSAT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
210-805-5515
 118.9

Approach

APCH/P
 121.375

Approach/Departure

APCH/P DEP/P
141-270 SAT
 118.05
APCH/P DEP/P
360-090 SAT
 124.45
APCH/P DEP/P
091-140 SAT
 128.05
APCH/P DEP/P IC
271-359 SAT
 125.1
APCH/S DEP/S
 125.7
APCH/S DEP/S
 127.1

Clearance Delivery

CD/P
 126.7

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.8

Other

ALAMO DP
RWY 04, 22, 31
 125.1
ALAMO DP
RWY 13
 127.1
ALISS DP
RY 31L/R
 125.1
ALISS DP
RY 13L/R, 22
 125.7
ALISS DP
RWY 4
 127.1
BOWIE DP
RWY 04 LRD TRANSITION
 125.1
BOWIE DP
RWY 13, 22, 31
 125.7
BOWIE DP
RWY 04 CRP TRANSITION
 127.1
CENTERPOINT STAR
RWY 13R, 22
 125.1
CENTERPOINT STAR
RWY 04, 31L
 125.7
CLASS C
141-270 SAT
 118.05
CLASS C
360-090 SAT
 124.45
CLASS C
271-359 SAT
 125.1
CLASS C
091-140 SAT
 128.05
CRVZA RNAV STAR
 125.7
DNKIN RNAV STAR
 125.1
LEJON DP
RWY 04, 22, 31
 125.1
LEJON DP
RWY 13
 125.7
LEMIG STAR
 125.7
MARCS STAR
 127.1
POPPO RNAV STAR
 125.1
QERVO RNAV STAR
 127.1
SLENA DP
RY 13R/L 31L/R, 22
 125.7
SLENA DP
RY 4
 127.1
SNIDR DP
RY 22
 125.7
SNIDR DP
RY 13R/L, 31L/R, 4
 127.1
STONEWALL STAR
 125.1
TJANO DP
RY 13R/L, 31L/R, 22
 125.7
TJANO DP
RY 4
 127.1
YODUH DP
RY 31L/R
 125.1
YODUH DP
RY 22
 125.7
YODUH DP
RY 13R/L, 4
 127.1

Terminal Area Forecast

No TAF is available for this location.
KSAT
Domestic
1/16/250600Z !SAT 01/038 SAT COM REMOTE COM OUTLET 122.3 U/S 2501160600-2501161000
1/13/250335Z !SAT 01/037 SAT RWY 13L PAPI U/S 2501130335-2502072000EST
1/13/250327Z !SAT 01/036 SAT COM REMOTE COM OUTLET 122.3 U/S 2501130327-2502282000EST
1/9/252031Z !SAT 01/026 SAT OBST TOWER LGT (ASR 1052543) 293129.60N0983711.80W (8.0NM W SAT) 1117.1FT (205.1FT AGL) U/S 2501092031-2502082359
1/9/252030Z !SAT 01/025 SAT OBST TOWER LGT (ASR 1052542) 293127.90N0983711.00W (8.0NM W SAT) 1113.2FT (205.1FT AGL) U/S 2501092030-2502082359
1/9/252029Z !SAT 01/024 SAT OBST TOWER LGT (ASR 1052541) 293126.30N0983710.20W (8.0NM W SAT) 1104.0FT (205.1FT AGL) U/S 2501092029-2502082359
12/30/241218Z !SAT 12/160 SAT OBST TOWER LGT (ASR 1051742) 292703.00N0981833.00W (9.8NM ESE SAT) 1028.2FT (370.4FT AGL) U/S 2412301218-2502131217
12/29/241121Z !SAT 12/159 SAT NAV ILS RWY 04 DME NOT MNT 2412291121-2505012000EST
12/23/241121Z !SAT 12/134 SAT TWY A SOUTH OF TWY G CLSD 2412231121-2503222300
12/23/241120Z !SAT 12/133 SAT TWY B BTN TWY G AND TWY H CLSD 2412231120-2503222300
12/12/240314Z !SAT 12/091 SAT SVC AUTOMATED WX BCST SYSTEM CHANGED TO 210-939-4003 2412120314-PERM
12/12/240235Z !SAT 12/090 SAT TWY G BTN TWY S AND TWY L CLSD 2412120235-2501312359
12/5/242206Z !SAT 12/035 SAT TWY B BTN RWY 13R/31L AND TWY G CLSD 2412052206-2502282300
12/5/242205Z !SAT 12/034 SAT TWY A BTN RWY 13R/31L AND TWY G CLSD 2412052205-2502282300
12/3/242125Z !SAT 12/016 SAT TWY N BTN TWY N8 AND TWY D CLSD 2412032125-2501172100
12/3/242124Z !SAT 12/015 SAT TWY N6 CLSD 2412032124-2501172100
12/3/242124Z !SAT 12/014 SAT TWY N7 CLSD 2412032124-2501172100
12/3/242122Z !SAT 12/013 SAT TWY N8 CLSD 2412032122-2501172100
11/23/241748Z !SAT 11/116 SAT TWY J BTN RWY 13R/31L AND TWY S CLSD 2411231748-2502252300
11/23/241747Z !SAT 11/115 SAT TWY P CLSD 2411231747-2502252300
11/23/241747Z !SAT 11/114 SAT TWY M CLSD 2411231747-2502252300
11/18/240510Z !SAT 11/077 SAT NAV ILS RWY 13R DME U/S 2411180510-2509242000EST
11/18/240509Z !SAT 11/076 SAT NAV ILS RWY 31L DME U/S 2411180509-2509242000EST
10/17/241100Z !SAT 10/098 SAT TWY V BTN TWY G AND TWY H CLSD 2410171100-2501152200
FDC
1/15/251400Z !FDC 5/3581 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
ILS OR LOC RWY 13R, AMDT 15...
ILS RWY 13R (CAT II), AMDT 15...
MISSED APPROACH: CLIMB TO 3100 DIRECT POYIG AND ON TRACK 170.57 TO EMBOW AND HOLD,
SAT VORTAC OUT OF SERVICE. 2501151400-2501220150EST
1/15/251400Z !FDC 5/3578 SAT SID SAN ANTONIO INTL, SAN ANTONIO, TX.
ALAMO FOUR DEPARTURE...
BOWIE SEVEN DEPARTURE...
LEJON FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAT VORTAC OUT OF SERVICE. 2501151400-2501220147EST
1/15/251400Z !FDC 5/3577 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
ILS OR LOC RWY 31L, AMDT 12...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAT VORTAC OUT OF SERVICE. 2501151400-2501220147EST
1/15/251400Z !FDC 5/3574 SAT SID SAN ANTONIO INTL, SAN ANTONIO, TX.
ALAMO FOUR DEPARTURE...
BOWIE SEVEN DEPARTURE...
LEJON FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAT VORTAC OUT OF SERVICE. 2501151400-2501220147EST
1/15/251400Z !FDC 5/3573 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
ILS OR LOC RWY 31L, AMDT 12...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAT VORTAC OUT OF SERVICE. 2501151400-2501220147EST
1/15/251400Z !FDC 5/3571 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
ILS OR LOC RWY 4, AMDT 23...
MISSED APPROACH: CLIMB TO 1700 THEN CLIMBING LEFT TURN TO 3500 ON HEADING 025 FOR RADAR VECTORS.
NOTE: RADAR REQUIRED,
SAT VORTAC OUT OF SERVICE. 2501151400-2501220147EST
12/30/242033Z !FDC 4/1979 SAT SID SAN ANTONIO INTL, SAN ANTONIO, TX.
BOWIE SEVEN DEPARTURE...
CORPUS CHRISTI TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
LAREDO TRANSITION DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
THX VOR OUT OF SERVICE. 2412302033-2501302033EST
12/18/241615Z !FDC 4/8434 SAT STAR SAN ANTONIO INTL, SAN ANTONIO, TX. LEMIG ONE
ARR CRP AND THX TRANSITION NA EXC FOR ACFT EQUIPPED WITH SUITABLE
RNAV SYSTEM WITH GPS, THX VOR U/S
2412181615-2508070901
11/25/241555Z !FDC 4/8494 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
ILS OR LOC RWY 13R, AMDT 15...
ILS RWY 13R (CAT II), AMDT 15....
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
VDP NA.
I-ANT DME OUT OF SERVICE.
2411251555-2507071555EST
11/25/241554Z !FDC 4/8492 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
ILS OR LOC RWY 31L, AMDT 12...
S-LOC 31L NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
VDP NA..
I-IZR DME OUT OF SERVICE.
2411251554-2507071554EST
10/22/241736Z !FDC 4/2294 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
RNAV (GPS) Y RWY 4, AMDT 4...
CHANGE CHART NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS,
LNAV/VNAV NA BELOW -5C OR ABOVE 54C...
THIS IS RNAV (GPS) Y RWY 4, AMDT 4A. 2410221736-PERM
Yes
ALL
CITY OF SAN ANTONIO
100 MILITARY PLAZA
SAN ANTONIO, TX 78207
Phone: 210-207-7253
JESUS H. SAENZ, JR.
9800 AIRPORT BLVD
SAN ANTONIO, TX 78216
Phone: 210-207-3444
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SAT
Sunset to Sunrise
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

8505 ft. x 150 ft.
CONC
Good
GRVD
HIGH
91 /R/B/W/T
95,000lbs
190,000lbs
270,000lbs
--
  Runway 04 Runway 22
True Heading 41°221°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 31' 24"N 29° 32' 27"N
Longitude 98° 28' 12"W 98° 27' 09"W
Elevation 786' 754'
Threshold Crossing Height 79 ft. AGL 85 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALS
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 13L/31R

5519 ft. x 100 ft.
ASPH
Fair
NONE
MED
61 /F/C/W/T
59,000lbs
120,000lbs
--
--
  Runway 13L Runway 31R
True Heading 132°312°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 29° 32' 25"N 29° 31' 49"N
Longitude 98° 28' 40"W 98° 27' 53"W
Elevation 797' 779'
Threshold Crossing Height 40 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 13R/31L

8502 ft. x 150 ft.
CONC
Poor
GRVD
HIGH
86 /R/B/W/T
95,000lbs
190,000lbs
270,000lbs
--
  Runway 13R Runway 31L
True Heading 132°312°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 32' 34"N 29° 31' 38"N
Longitude 98° 29' 08"W 98° 27' 56"W
Elevation 809' 778'
Threshold Crossing Height 75 ft. AGL 82 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-12GLIDER/SOARING OPNS APRXLY 17 MILES NW OF ARPT DURG VFR.
A110-16NOISE SENSITIVE AREAS EXIST ON ALL SIDES OF ARPT, AT PILOTS DISCRETION CLIMB AS QUICKLY AND QUIETLY AS SAFELY POSSIBLE ON DEPARTURE AND USE CONSIDERATION WHEN FLYING OVER POPULATED AREAS BY MINIMIZING FLT AND HIGH PWR SETTINGS. MILITARY AIRCRAFT: DEPARTING AND ARRIVING AIRCRAFT WILL USE MINIMUM POWER SETTINGS CONSISTENT WITH AIRCRAFT FLIGHT MANUALS, AFTERBURNER TAKEOFF IS PROHIBITED UNLESS REQUIRED FOR SAFETY OF FLIGHT. ENGINE-UPS ARE PERMITTED BTN 0600-2300.
A110-17ACFT TAXIING ON RY 04 NE BOUND LOOK FOR HOLD SHORT TO RY 31L.
A110-18ACFT TAXIING ON TWY N SW BOUND LOOK FOR HOLD SHORT TO RY 31R.
A110-20GROUND RUN-UP ENCLOSURE AVBL 24 HRS.
A110-21TERMINAL GATES A1, A2, A6, A7, A8, A15 & A17 USE ONLY WITH PPR CALL OPNS 210-413-4928.
A110-24RY 13L/31R NOT AVBL FOR PART 121 ACR OPNS.
A110-25THE FLWG TWYS ARE NOT AVBL FOR ACFT 59000 LBS OR OVR: TWY A, TWY M, TWY H NORTHWEST OF TWY Z AND TWY E EAST OF RWY 04/22.
A110-26TWY Z CLSD TO ACFT WITH WINGSPAN GREATER THAN 118 FT.
A110-27C130 AND C17 TYPE ACFT MUST PARK ON WEST RAMP TO CLR CUST.
A110-31INNER RAMP TAXILANE NORTH OF TRML A AND B IS CLSD TO ACFT WITH WINGSPAN GTR THAN 135 FT.
A110-33PPR WITH ARPT OPNS FOR ACFT POWERING BACK FM TERMINAL GATES.
A110-34TWYS L & B CLSD TO ACFT WITH WINGSPANS GREATER THAN 118 FT EXITING RY 31L.
A110-38ACFT AT TERMINAL A & B ADVISE GND CTL PRIOR TO PUSH.
A110-4TWY L CLSD NORTHBOUND.
A110-46ARPT RSTD TO ACFT WITH WINGSPAN GTR THAN 171 FT, PPR WITH 24HR OPS 210-413-4928. RQRD FOR AUTH.
A110-49APRON EAST CARGO RAMP INT OF RWY 04/22 AND TWY DELTA ACFT ARE REQ TO APPLY THE MNM THRUST WHEN XNG THE RWY TO AVOID DMG DUE TO JET BLAST.
A110-50ALL INTL GENERAL AVIATION CLEAR U.S. CSTMS AT NORTH FIXED BASE OPERATOR RAMP EAST SIDE, CALL U.S. CSTMS 210-821-6965 UPON ARR.
A110-52FOREIGN MIL ACFT WITH WINGSPAN LESS THAN 100 FT MUST REP TO GA RAMP FED INSPECTION STATION FOR CUST PROCESSING, CTC AP MANAGEMENT AT 210-207-3433.
A110-7NUMEROUS FLOCKS OF BIRDS INVOF ARPT.
SAN ANTONIO INTL (ICAO: KSAT, IATA: SAT) is a public airport located in SAN ANTONIO, TX.
