iFlightPlanner



...

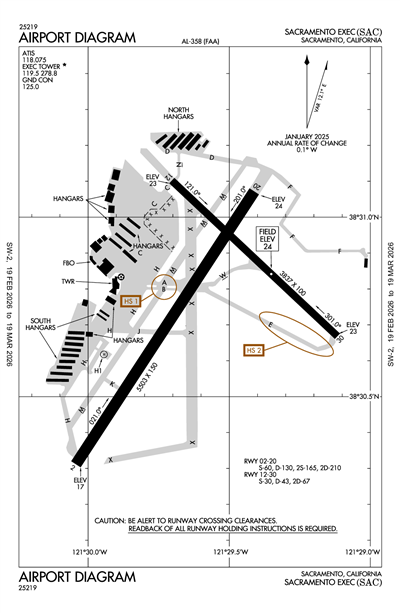

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSAC
SACRAMENTO EXEC
PublicPUB

3 miles S of SACRAMENTO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 30' 46"N 121° 29' 36"W
24' MSL
1024' MSL
14E
JET A, 100LL
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
7/11/24-8/8/24
KSAC VFR
3:53 AM PDT
Clear
10sm
57°F
53°F
29.82"Hg
Calm
AO2 SLP096 T01390117
KSAC 191053Z AUTO 00000KT 10SM CLR 14/12 A2982 RMK AO2 SLP096 T01390117
Add Your Business

KSAC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.5

ATIS

ATIS
916-428-7066
 125.5

Ground

GND/P
 125.0

Tower

LCL/P
 119.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSAC
Wed, 9/18 10:20 PM PDT
Wed, 9/18 11:00 PM PDT - Thu, 9/19 11:00 PM PDT
VFR
11:00 PM PDT - 4:00 PM PDT
Broken 12,000'
6sm
VRB° 5kts
VFR
4:00 PM PDT - 11:00 PM PDT
Few 25,000'
6sm
210° 6kts
KSAC 190520Z 1906/2006 VRB05KT P6SM BKN120
   FM192300 21006KT P6SM FEW250
KSAC
Domestic
9/10/241330Z !SAC 09/005 SAC OBST CRANE (ASN 2023-AWP-8038-OE) 383436N1212933W (3.9NM NE SAC) 450FT (428FT AGL) FLAGGED AND LGTD 2409101330-2411030030
8/26/241703Z !SAC 08/028 SAC TWY E IRREGULAR SFC ADJ NORTH SIDE 2408261703-2503312359
8/25/241500Z !SAC 08/023 SAC SVC TWR OPN SUN-THU 1500-0145 2408251500-2412270145
8/23/241300Z !SAC 08/021 SAC SVC TWR CLSD MNT CTAF 119.5 FRI SAT 1300-0400 2408231300-2412290400
8/6/241602Z !SAC 08/001 SAC OBST TOWER LGT (ASR 1015842) 383029.00N1213450.00W (4.1NM W SAC) 309.1FT (298.9FT AGL) U/S 2408061602-2409302359
6/19/241600Z !SAC 06/009 SAC AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF
382955.20N1212623.30W (2.7NM E SAC) SFC-400FT AGL WED-SAT 1600-0800
2406191600-2411030800
12/10/221600Z !SAC 12/005 SAC OBST CRANE (ASN 2022-AWP-16115-OE) 383433N1212952W (3.8NM N SAC) 334FT (321FT AGL) FLAGGED AND LGTD 2212101600-2508311600
FDC
6/19/241300Z !FDC 4/9858 SAC IAP SACRAMENTO EXEC, SACRAMENTO, CA.
ILS OR LOC RWY 2, AMDT 24F...
RNAV (GPS) RWY 2, AMDT 1...
VOR RWY 2, AMDT 10F...
CIRCLING CAT B/C MDA 580/ HAA 556. TEMPORARY CRANES UP TO 217 MSL 1.8NM SE OF SAC AIRPORT (2024-AWP-4932 THRU 4935-OE).
2406191300-2410161300EST
Yes
0800-1600
CITY OF SACRAMENTO
6151 FREEPORT BLVD.
SACRAMENTO, CA 95322-3518
Phone: 916-929-5411
LARRY FLESHMAN
6151 FREEPORT BLVD
SACRAMENTO, CA 95822
Phone: 916-875-9035
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
SAC
--
DUSK-DAWN. WHEN ATCT CLSD ACTVT ALL AIRFIELD LGTS - CTAF.
DUSK-DAWN. WHEN ATCT CLSD ACTVT APT BCN - CTAF
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
149
18
4
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 02/20

5503 ft. x 150 ft.
ASPH
Good
NONE
MED

60,000lbs
130,000lbs
210,000lbs
--
  Runway 02 Runway 20
True Heading 33°213°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 30' 19"N 38° 31' 04"N
Longitude 121° 30' 03"W 121° 29' 25"W
Elevation 17' 24'
Threshold Crossing Height -- 36 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 12/30

3837 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
43,000lbs
67,000lbs
--
  Runway 12 Runway 30
True Heading 133°313°
Traffic Pattern Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 31' 06"N 38° 30' 40"N
Longitude 121° 29' 42"W 121° 29' 07"W
Elevation 23' 23'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

60 ft. x 60 ft.
ASPH
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 69°249°
Traffic Pattern
Markings
Markings Condition
Latitude 38° 30' 37"N N/A
Longitude 121° 29' 57"W N/A
Elevation 19' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-12RY 20 CALM WIND RY.
A110-16NO TOUCH & GO LNDGS, LOW APPCHS OR PRACTICE INST APPCHS BTN HRS 2100-0600 LOCAL; FOR MORE INFO CALL (916) 874-0359.
A110-18BIRDS INVOF OF APRT.
A110-19DITCH AND CONCRETE BRIDGE IN RY 02/20 SAFETY AREA LCTD 500 FT PRIOR TO RY 02 THLD ON CL.
A110-20ARPT NOISE ABATEMENT PROCEDURES IN EFFECT 2100-0600 FOR MORE INFO CALL (916) 875-9037 OR (916) 875-9035.
A110-21ARPT 24HR EMERGENCY 916-929-5000.
A110-22PRIOR PERMISSION FROM AIRPORT OPERATOR REQUIRED FOR ACFT OVER 50,000 LBS MAX TAKEOFF WEIGHT.
A110-23DSTC BTN TWY A AND TWY B CNTRLN IS 75 FT.
A110-24RWY 12 BLAST PAD MARKINGS NOT STD.
A110-25FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-6874.
A110-3GOLF COURSE LGTS SHINE ACROSS RY 02 FINAL APCH 800 FT RY CL DUSK TO 2200.
A110-8NO MID-FIELD, INTERSECTION OR FORMATION TKOFS.
SACRAMENTO EXEC (ICAO: KSAC, IATA: SAC) is a public airport located in SACRAMENTO, CA.
