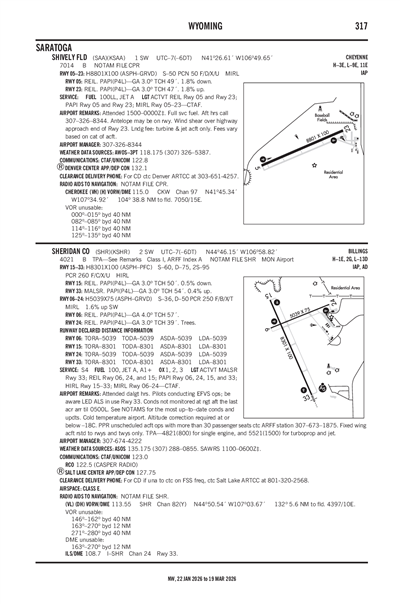

SHIVELY FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSAA
ICAO KSAAIATA SAALocal SAA
SHIVELY FLD
PublicPUB

1 miles SW of SARATOGA, WY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 26' 37"N 106° 49' 39"W
Elevation
7014' MSL
Pattern Alt
8014' MSL
Mag Variation
9°E
Declination
12°E
Fuel
JET A, 100LL
FSS
CASPER (CPR)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KSAA VFR
4:35 AM MST
Scattered 3,500'
10sm
25°F
25°F
30.17"Hg
130° 5kts
AO2
METAR KSAA 041135Z AUTO 13005KT 10SM SCT035 M04/M04 A3017 RMK AO2
+ Add Your Business

KSAA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.175
(307) 326-5387

Common

CTAF 122.8
ACTVT REIL RWY 5 & 23; PAPI RWY 5 & 23; MIRL RWY 05/23 - CTAF.
UNICOM 122.8

Center

DENVER CENTER 132.1
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.1/254.35 (CHEROKEE RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KRWL (27nm)
Wed, 3/4 4:25 AM MST
Wed, 3/4 5:00 AM MST - Thu, 3/5 5:00 AM MST
VFR
5:00 AM MST - 9:00 AM MST
Few 25,000'
6sm
VRB° 6kts
VFR
9:00 AM MST - 11:00 AM MST
Few 25,000'
6sm
220° 8kts
VFR
11:00 AM MST - 6:00 PM MST
Few 25,000'
6sm
230° 15kts
Gusts 25kts
VFR
6:00 PM MST - 5:00 AM MST
Few 25,000'
6sm
220° 8kts
TAF KRWL 041125Z 0412/0512 VRB06KT P6SM FEW250
   FM041600 22008KT P6SM FEW250
   FM041800 23015G25KT P6SM FEW250
   FM050100 22008KT P6SM FEW250
KSAA
No NOTAM Available
No
0700-1700
TOWN OF SARATOGA
P.O. BOX 486
SARATOGA, WY 82331
Phone: 307-326-8335
LARRY DEANDRADE
P.O. BOX 1015
SARATOGA, WY 82331
Phone: 307-326-8344
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
CPR
--
ACTVT REIL RWY 5 & 23; PAPI RWY 5 & 23; MIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

8801 ft. x 100 ft.
ASPH
Good
GRVD
MED
50/F/D/X/U
50,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 66°246°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 26' 19"N 41° 26' 54"N
Longitude 106° 50' 32"W 106° 48' 46"W
Elevation 7,014' 6,857'
Threshold Crossing Height 49 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3WIND SHEAR OVER HIGHWAY APCH END RWY 23.
A110-5FOR CD CTC DENVER ARTCC AT 303-651-4257.
A24TURBINE & JET ACFT ONLY. FEES VARY BASED ON CAT OF ACFT.
A70-AFULL SVC FUEL. AFT HRS CALL 307-326-8344.
A81-APTACTVT REIL RWY 5 & 23; PAPI RWY 5 & 23; MIRL RWY 05/23 - CTAF.
SHIVELY FLD (ICAO: KSAA, IATA: SAA) is a public airport located in SARATOGA, WY, US.
