RAWLINS MUNI/HARVEY FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRWL
ICAO KRWLIATA RWLLocal RWL
RAWLINS MUNI/HARVEY FLD
PublicPUB

2 miles NE of RAWLINS, WY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 48' 21"N 107° 12' 01"W
Elevation
6817' MSL
Pattern Alt
7817' MSL
Mag Variation
9°E
Declination
10°E
Fuel
JET A, 100LL
FSS
CASPER (CPR)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KRWL VFR
7:53 PM MST
Clear
10sm
25°F
22°F
30.22"Hg
320° 8kts
AO2 SLPNO T10391056 53009
METAR KRWL 040253Z AUTO 32008KT 10SM CLR M04/M06 A3022 RMK AO2 SLPNO T10391056 53009
+ Add Your Business

KRWL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 118.525
(307) 328-0031

Common

CTAF 123.0
ACTVT REIL RWY 22 & 29; MIRL RWY 04/22 & 11/29 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
UNICOM 123.0

Center

DENVER CENTER 132.1
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.1/254.35 (CHEROKEE RCAG).

Flight Service

Flight Service 122.2
(CPR)

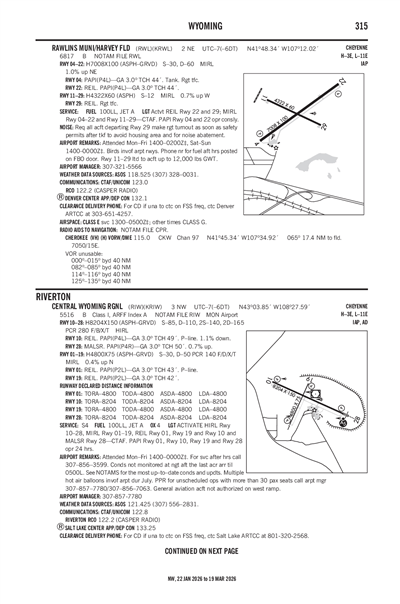

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KRWL
Tue, 3/3 4:20 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 9:00 PM MST
Scattered 15,000'
Scattered 6,000'
6sm
VRB° 6kts
VFR
9:00 PM MST - 9:00 AM MST
Fog in vicinity
Sky Clear
6sm
230° 5kts
VFR
9:00 AM MST - 5:00 PM MST
Sky Clear
6sm
230° 16kts
Gusts 24kts
TAF KRWL 032320Z 0400/0424 VRB06KT P6SM SCT060 SCT150
   FM040400 23005KT P6SM VCFG SKC
   FM041600 23016G24KT P6SM SKC
KRWL
EffectiveExpiresCategoryNOTAM
Domestic
2/7/26
2115Z
3/24/26
2359Z
!RWL 02/003 RWL OBST WIND TURBINE LGT (ASN 2008-WTW-6131-OE) 413141N1072218W (18.3NM SSW RWL) 8603FT (270FT AGL) U/S 2602072115-2603242359
2/3/26
1029Z
3/20/26
1029Z
!RWL 02/001 RWL OBST TOWER LGT (ASN 2008-WTW-8185-OE) 414047N1070349W (9.7NM SE RWL) 7189FT (270FT AGL) U/S 2602031029-2603201029
FDC
4/25/25
1627Z
!FDC 5/1580 RWL IAP RAWLINS MUNI/HARVEY FLD, RAWLINS, WY.
RNAV (GPS) RWY 22, AMDT 1...
CHART PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.00/TCH 44.0.
2504251627-2704251627EST
No
MON-FRI 0700-1900
SAT-SUN 0700-1700
RAWLINS CARBON CO ARPT BOARD
P.O. BOX 1363
RAWLINS, WY 82301
Phone: 307-324-2361
BOB HEPNER
1300 AIRPORT ROAD
RAWLINS, WY 82301
Phone: 307-321-5566
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
RWL
--
ACTVT REIL RWY 22 & 29; MIRL RWY 04/22 & 11/29 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance

Runway 04/22

7008 ft. x 100 ft.
ASPH
Good
GRVD
MED

30,000lbs
60,000lbs
--
--
  Runway 04 Runway 22
True Heading 54°234°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 48' 00"N 41° 48' 41"N
Longitude 107° 12' 37"W 107° 11' 22"W
Elevation 6,744' 6,817'
Threshold Crossing Height 44 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 11/29

4322 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 115°295°
Traffic Pattern Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 41° 48' 30"N 41° 48' 11"N
Longitude 107° 12' 30"W 107° 11' 39"W
Elevation 6,776' 6,747'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-17800 FT MTN 3 MILES WEST, 7200 FT MTN 3 MILES SW, 7200 FT MTN 3 MILES NE.
A110-2RWY 11/29 LMTD TO ACFT UP TO 12000 LBS GWT.
A110-5REQ ALL ACFT DEPNG RWY 29 MAKE RIGHT TURNOUT AS SOON AS SAFETY PMTS AFT TKOF TO AVOID HOUSING AREA AND FOR NOISE ABATEMENT.
A110-6BIRDS INVOF ARPT RWYS.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC DENVER ARTCC AT 303-651-4257.
A70-100LLPHONE NR FOR FUEL AFT HRS POSTED ON FBO DOOR.
A81-APTACTVT REIL RWY 22 & 29; MIRL RWY 04/22 & 11/29 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
RAWLINS MUNI/HARVEY FLD (ICAO: KRWL, IATA: RWL) is a public airport located in RAWLINS, WY, US.
