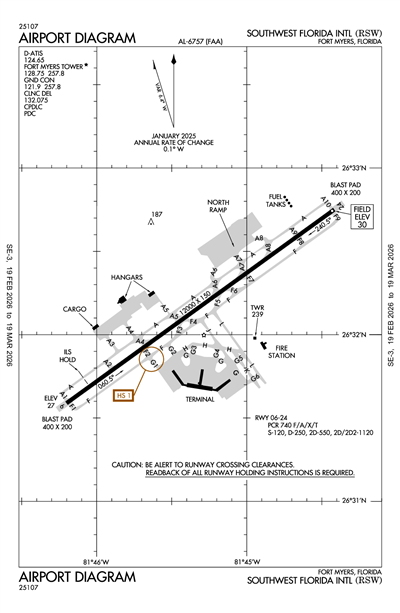

SOUTHWEST FLORIDA INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRSW
SOUTHWEST FLORIDA INTL
PublicPUB

10 miles SE of FORT MYERS, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 32' 10"N 81° 45' 19"W
30' MSL
1030' MSL
06W
JET A, JET A (FSII), 100LL
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
4/17/25-5/15/25
KRSW VFR
5:53 PM EST
Clear
10sm
77°F
65°F
30.08"Hg
240° 5kts
AO2 SLP182 T02500183 $
METAR KRSW 082253Z 24005KT 10SM CLR 25/18 A3008 RMK AO2 SLP182 T02500183 $
+ Add Your Business

KRSW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

D-ATIS 124.65
ASOS 124.65
239-416-1031

Clearance

CD/P 132.075

Ground

GND/P 121.9

Tower

LCL/P 128.75

Approach

APCH/P IC 125.15
RWY 06
APCH/P IC 126.8
RWY 24

Other

ALICO DP 126.8
RWY 06
ALICO DP 134.425
RWY 24
CLASS C 124.125
121-240
CLASS C 126.8
001-120
CLASS C 127.05
301-360
CLASS C 134.425
241-300
CSHEL DP 126.8
RWY 06
CSHEL DP 134.425
RWY 24
JOSFF STAR 134.425
MOOKY DP 124.125
RWY 06
MOOKY DP 134.425
RWY 24
PUMPP STAR 134.425
SCUBY DP 124.125
SHFTY STAR 126.8
TYNEE STAR 134.425

Terminal Area Forecast

KRSW
Thu, 1/8 12:20 PM EST
Thu, 1/8 1:00 PM EST - Fri, 1/9 1:00 PM EST
VFR
1:00 PM EST - 4:00 PM EST
Few 25,000'
6sm
120° 7kts
VFR
4:00 PM EST - 7:00 PM EST
Scattered 25,000'
Scattered 3,000'
6sm
160° 6kts
VFR
7:00 PM EST - 5:00 AM EST
Scattered 25,000'
Few 1,000'
6sm
VRB° 3kts
VFR
5:00 AM EST - 10:00 AM EST
Patches Fog
Scattered 200'
6sm
VRB° 3kts
VFR
10:00 AM EST - 1:00 PM EST
Scattered 25,000'
Scattered 1,000'
6sm
140° 9kts
TAF KRSW 081720Z 0818/0918 12007KT P6SM FEW250
   FM082100 16006KT P6SM SCT030 SCT250
   FM090000 VRB03KT P6SM FEW010 SCT250
   FM091000 VRB03KT 6SM BCFG SCT002
   FM091500 14009KT P6SM SCT010 SCT250
KRSW
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
1400Z
1/7/26
2100Z
!RSW 01/026 RSW NAV ILS RWY 06 U/S 2601071400-2601072100
1/7/26
0357Z
1/7/26
1900Z
!RSW 01/030 RSW TWY K BTN TWY G5 AND TWY G6, TWY L BTN TWY G5 AND TWY G6, TWY G6 BTN TWY L AND TWY G CLSD 2601070357-2601071900
1/7/26
0208Z
1/7/26
1900Z
!RSW 01/029 RSW TWY H BTN TWY G AND TWY G4, TWY G3 BTN TWY H AND TWY G CLSD 2601070208-2601071900
12/31/25
1942Z
6/30/26
2359Z
!RSW 12/138 RSW OBST CRANE (ASN UNKNOWN) 263141N0814515W (0.47NM SSE RSW)
UNKNOWN (190FT AGL) FLAGGED AND LGTD 2512311942-2606302359
12/31/25
1942Z
6/30/26
2359Z
!RSW 12/137 RSW OBST CRANE (ASN UNKNOWN) 263130N0814540W (0.73NM SSW RSW)
UNKNOWN (220FT AGL) FLAGGED 2512311942-2606302359
12/31/25
1941Z
6/30/26
2359Z
!RSW 12/136 RSW OBST CRANE (ASN UNKNOWN) 263133N0814533W (0.65NM SSW RSW)
UNKNOWN (220FT AGL) FLAGGED 2512311941-2606302359
12/31/25
1932Z
6/30/26
2300Z
!RSW 12/135 RSW OBST CRANE (ASN 2024-ASO-8199-NRA) 263142N0814526W (0.5NM SSW RSW) 276FT (248FT AGL) FLAGGED AND LGTD 2512311932-2606302300
12/31/25
1931Z
6/30/26
2300Z
!RSW 12/134 RSW OBST CRANE (ASN 2024-ASO-8195-NRA) 263138N0814531W (0.6NM SSW RSW) 276FT (248FT AGL) FLAGGED AND LGTD 2512311931-2606302300
12/31/25
1914Z
6/30/26
2300Z
!RSW 12/132 RSW OBST CRANE (ASN 2024-ASO-8194-NRA) 263139N0814542W (0.6NM SW RSW) 276FT (248FT AGL) FLAGGED AND LGTD 2512311914-2606302300
12/31/25
1914Z
6/30/26
2300Z
!RSW 12/131 RSW OBST CRANE (ASN 2024-ASO-11395-NRA) 263248N0814438W (0.9NM NE RSW) 148FT (120FT AGL) FLAGGED AND LGTD 2512311914-2606302300
12/30/25
1419Z
1/8/26
0500Z
!RSW 12/123 RSW OBST CRANE (ASN UNKNOWN) 263001N0814821W (2.4NM SW RSW)
UNKNOWN (130FT AGL) FLAGGED AND LGTD 2512301419-2601080500
12/29/25
2026Z
1/8/26
0459Z
!RSW 12/117 RSW OBST CRANE (ASN UNKNOWN) 263001N0814820W (2.6NM SW RSW)
UNKNOWN (130FT AGL) FLAGGED AND LGTD 2512292026-2601080459
12/29/25
1931Z
6/24/26
0359Z
!RSW 12/116 RSW OBST CRANE (ASN 2024-ASO-20411-OE) 262943N0814702W (2.9NM SSW RSW) 207FT (184FT AGL) FLAGGED AND LGTD 2512291931-2606240359
12/27/25
1259Z
!RSW 12/103 RSW NAV VOR U/S 2512271259-2602062000EST
12/26/25
0843Z
2/9/26
0721Z
!RSW 12/094 RSW OBST TOWER LGT (ASR 1032129) 262655.40N0814853.70W (6.2NM SSW RSW) 494.1FT (483.9FT AGL) U/S 2512260843-2602090721
12/25/25
0619Z
!RSW 12/086 RSW NAV ILS RWY 06 GP U/S 2512250619-2601092000EST
12/19/25
1212Z
3/19/26
0500Z
!RSW 12/055 RSW OBST TOWER LGT (ASR 1011860) 263625.00N0813826.00W (7.6NM NE RSW) 323.8FT (298.9FT AGL) U/S 2512191212-2603190500
12/13/25
1557Z
6/30/27
2359Z
!RSW 12/035 RSW OBST CRANE (ASN UNKNOWN) 263142N0814520W (.45NM S RSW)
UNKNOWN (320FT AGL) FLAGGED AND LGTD 2512131557-2706302359
12/3/25
1000Z
12/2/26
2200Z
!RSW 12/005 RSW OBST CRANE (ASN 2025-ASO-18674-OE) 262951N0814257W (3.1NM SE RSW) 284FT (260FT AGL) FLAGGED AND LGTD 2512031000-2612022200
12/1/25
2236Z
12/1/26
2200Z
!RSW 12/004 RSW OBST CRANE (ASN 2025-ASO-21374-OE) 262924N0814717W (3.3NM SSW RSW) 119FT (97FT AGL) FLAGGED AND LGTD 2512012236-2612012200
11/28/25
1402Z
2/20/26
2359Z
!RSW 11/076 RSW OBST TOWER LGT (ASR 1044752) 262750.20N0814214.00W (5.0NM SSE RSW) 327.1FT (304.1FT AGL) U/S 2511281402-2602202359
11/14/25
1448Z
12/31/26
2300Z
!RSW 11/039 RSW APRON TXL G1 SE OF TWY G1 CLSD TO ACFT WINGSPAN MORE THAN 118FT. 2511141448-2612312300
10/16/25
1334Z
10/14/26
0400Z
!RSW 10/033 RSW OBST ANTENNA (ASN 2025-ASO-6887-OE) 262926N0813501W (9.6NM ESE RSW) 176FT (149FT AGL) LGTD 2510161334-2610140400
10/15/25
1020Z
10/14/26
0400Z
!RSW 10/030 RSW OBST CRANE (ASN 2025-ASO-17425-OE) 263018N0814805W (3.2NM SW RSW) 189FT (166FT AGL) FLAGGED AND LGTD 2510151020-2610140400
FDC
9/26/25
1458Z
!FDC 5/0904 RSW IAP SOUTHWEST FLORIDA INTL, FORT MYERS, FL.
ILS OR LOC RWY 6, AMDT 8...
S-ILS 6 DA 345/HAT 318 ALL CATS, VIS ALL CATS RVR 2400. S-LOC 6 MDA 540/HAT 513 ALL CATS, VIS CATS C/D/E RVR 5500. CIRCLING CAT A/B/C MDA 660/HAA 630, VIS CAT C 1 3/4. VDP AT I-RSW 3.5 DME; DISTANCE VDP TO THLD 1.4NM. CHANGE INOP NOTE TO READ: FOR INOP MALSR, INCREASE S-ILS 6 ALL CATS VISIBILITY TO RVR 4500, AND S-LOC 6 CAT C/D/E VISIBILITY TO 1 3/8 SM. TEMPORARY CRANES 276 MSL BEGINNING 2726FT E OF RWY 6 (2024-ASO-8193 THRU 8201-NRA). TEMPORARY CRANES UP TO 349 MSL BEGINNING 4448FT E OF APCH END RWY 6 (2021-ASO-3238 THRU 3251-NRA). TEMPORARY CRANES UP TO 175 MSL BEGINNING 1720FT E OF APCH END RWY 6 (2021-ASO-3252 THRU 3255-NRA). TEMPORARY CRANE 249 MSL 3834FT E OF RWY 6 (2025-ASO-8329-NRA). TEMPORARY CRANE 195 MSL 2.5NM SW OF RWY 6 (2025-ASO-6580-OE).
2509261458-2710171458EST
9/26/25
1458Z
!FDC 5/0903 RSW IAP SOUTHWEST FLORIDA INTL, FORT MYERS, FL.
RNAV (GPS) Y RWY 6, AMDT 2...
LNAV MDA 500/HAT 473 ALL CATS, VIS CATS C/D RVR 5000. CIRCLING CAT A/B/C MDA 660/HAA 630, VIS CAT C 1 3/4. VDP 1.3 NM TO RW06. TEMPORARY CRANE 195 MSL 2.5NM SW OF RWY 6 (2025-ASO-6580-OE). TEMPORARY CRANES UP TO 349 MSL BEGINNING 4448FT E OF APCH END RWY 6 (2021-ASO-3238 THRU 3251-NRA). TEMPORARY CRANE 249 MSL 3420FT SW OF RSW AIRPORT (2025-ASO-8329-NRA).
2509261458-2710171458EST
8/20/25
1600Z
!FDC 5/0562 RSW IAP SOUTHWEST FLORIDA INTL, FORT MYERS, FL.
RNAV (RNP) Z RWY 6, ORIG...
RNP 0.11 DA 381/HAT 354 ALL CATS, VIS ALL CATS RVR 3000. TEMPORARY CRANE 249 MSL 2950FT E OF RWY 6 (2025-ASO-8362-NRA).
2508201600-2703151510EST
7/14/25
0232Z
!FDC 5/7851 RSW IAP SOUTHWEST FLORIDA INTL, FORT MYERS, FL.
VOR OR TACAN RWY 24, AMDT 2D...
S-24 MDA 540/HAT 510 ALL CATS. VIS CATS C/D 1 3/8. CIRCLING CAT A/B/C MDA 660/HAA 630, VIS CAT C 1 3/4. TEMPORARY CRANES UP TO 349 MSL BEGINNING 4448FT E OF APCH END RWY 6 (2021-ASO-3238 THRU 3251-NRA). TEMPORARY CRANES 277 MSL BEGINNING 5433FT SW OF APCH END RWY 24 (2020-ASO-876 THRU 880-NRA). TEMPORARY CRANE 249 MSL 3420FT SW OF RSW AIRPORT (2025-ASO-8329-NRA).
2507140232-2710160232EST
7/14/25
0232Z
!FDC 5/7850 RSW IAP SOUTHWEST FLORIDA INTL, FORT MYERS, FL.
RNAV (GPS) Y RWY 24, AMDT 2...
CIRCLING CAT A/B/C MDA 660/HAA 630, VIS CAT C 1 3/4. TEMPORARY CRANES UP TO 349 MSL BEGINNING 4448FT E OF APCH END RWY 6 (2021-ASO-3238 THRU 3251-NRA). TEMPORARY CRANE 249 MSL 3420FT SW OF RSW AIRPORT (2025-ASO-8329-NRA).
2507140232-2710160232EST
Yes
0700-0100
BOARD OF COM LEE CO PORT AUTH
PO BOX 398
FORT MYERS, FL 33902
Phone: 239-590-4800
STEVEN HENNIGAN
11000 TERMINAL ACCESS RD.
FORT MYERS, FL 33913
Phone: 239-590-4400
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
RSW
--
ACTVT MALSR RWY 06 - CTAF. ALL OTHER LGTS OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling

Runway 06/24

12000 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 06 Runway 24
True Heading 54°234°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 26° 31' 35"N 26° 32' 45"N
Longitude 81° 46' 12"W 81° 44' 25"W
Elevation 27' 30'
Threshold Crossing Height 69 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-14CAUTION: OPEN BAGGAGE BAYS & CONST WITHIN TERMINAL RAMP AREA. AIRCREWS USE MINIMUM THRUST SETTINGS IN THESE AREAS, SPCLY DURG SINGLE ENG TAXI. CROSS-BLEED STARTS ONLY ALLOWED AFT REACHING THE TUG RELEASE POINT.
A110-2ACR USE RAMP PROC PRESCRIBED BY ARPT OPS.
A110-21TFC PROCD DRCTLY TO GATE UNLESS DRCTD BY ATC; ADVISE ATC IF GATE IS NOT AVBL.
A110-22DEP - ACFT MUST OBTAIN APVL FM GND CTL PRIOR TO PUSHBACK FM GATES B7, B9, C8, C9, D9 AND D11. PILOTS ADVISE TUG OPRS THAT YOU HAVE OBTAINED CLNC FM GND CTL PRIOR TO ENTERING TWY G.
A110-23GATES B7 & B9 EXP CALL SPOT 7. GATES C8 & C9 EXP CALL SPOT 4.
A110-24FOR CD IFUN TO CTC ON MIAMI CTR FREQ, CTC MIAMI ARTCC AT 305-716-1731 (0100-0700).
A110-25TWY A5 BTN FBO RAMP AND TWY A CLSD TO ACFT WINGSPAN MORE THAN 118 FT.
A110-26CAUTION: GS ANT 130 FT SW OF TWY A CNTRLN BTN TWY A1 & TWY A2.
A110-27OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-28ALL ACFT ON RAMP EXP CLKWS FLOW. OBND TFC FM GATES D6, D8 & D10 PCD TO CALL SPOT 1; GATES D9 AND D11 EXP CALL SPOT 2. OBND TFC FM GATES C2, C4, C6, D1, D3, D5 & D7 PCD TO CALL SPOT 3; OBND TFC FM GATES B2, B4, B6, B8, C1, C3, C5 & C7 PCD TO CALL SPOT 5; OBND TFC FM GATES B1, B3 & B5 PCD TO CALL SPOT 9; ALL OBND TFC REQ TAXI INSTRUCTIONS.
A110-4NO HELI OPS PERMITTED ON TRML APRON.
A110-6LGTS ON PARALLEL ROAD & PARKING LOT NW OF RWY 06/24 CAN BE MISTAKEN FOR RWY & APCH ENVIRONMENT.
A110-7GND CLNC RQRD PRIOR TO ENTERING TWY G.
A110-8RWY USE PROGRAM IN EFFECT; USE DISTANT NOISE ABATEMENT DEP PROFILE. VISUAL APCH TO RWY 06 W OF FORT MYERS BEACH MAINTAIN 3000 FT UNTIL CROSSING SHORELINE 12 NM SW OF ARPT. RWY 24 PREFERRED BTN 2200-0600. FOR NOISE ABATEMENT PROC CTC AMGR.
A24FEES FOR CHARTER, TRAVEL CLUBS & REVENUE PRODUCING ACFT.
A39-06/24PCR VALUE: 740/F/A/X/T
A81-APTACTVT MALSR RWY 06 - CTAF. ALL OTHER LGTS OPR CONSLY.
E80US CUSTOMS USER FEE ARPT.
SOUTHWEST FLORIDA INTL (ICAO: KRSW, IATA: RSW) is a public airport located in FORT MYERS, FL.
