KRRL
ICAO KRRLIATA RRLLocal RRL
MERRILL MUNI
PublicPUB

1 miles NW of MERRILL, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 11' 56"N 89° 42' 46"W
Elevation
1318' MSL
Pattern Alt
2318' MSL
Mag Variation
3°W
Declination
1°W
Fuel
JET A (FSII), 100LL
FSS
GREEN BAY (GRB)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KRRL VFR
10:55 PM CST
Clear
7sm
26°F
24°F
30.16"Hg
Calm
AO2 T10311046 TSNO
METAR KRRL 040455Z AUTO 00000KT 7SM CLR M03/M05 A3016 RMK AO2 T10311046 TSNO
+ Add Your Business

KRRL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.925
(715) 539-8422

Common

CTAF 122.8
MIRL RWY 07/25 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 16/34; - CTAF.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 124.4
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 124.4/317.7 (MOSINEE RCAG).

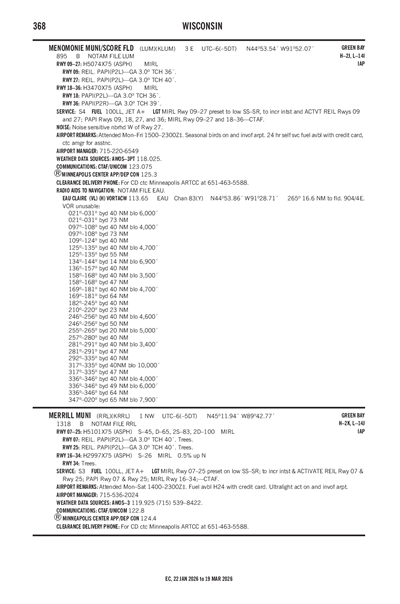

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAUW (17nm)
Tue, 3/3 5:36 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 12:00 AM CST
Sky Clear
6sm
270° 3kts
VFR
12:00 AM CST - 8:00 AM CST
Mist
Scattered 500'
6sm
VRB° 3kts
IFR
Temporary 2:00 AM CST - 6:00 AM CST
Mist
Broken 500'
2sm
Calm
VFR
8:00 AM CST - 12:00 PM CST
Scattered 600'
6sm
200° 2kts
VFR
12:00 PM CST - 6:00 PM CST
Sky Clear
6sm
190° 4kts
TAF KAUW 032336Z 0400/0424 27003KT P6SM SKC
   FM040600 VRB03KT 6SM BR SCT005
   TEMPO 0408/0412 2SM BR BKN005
   FM041400 20002KT P6SM SCT006
   FM041800 19004KT P6SM SKC
KRRL
EffectiveExpiresCategoryNOTAM
FDC
10/9/25
1825Z
!FDC 5/9039 RRL IAP MERRILL MUNI, MERRILL, WI.
RNAV (GPS) RWY 25, AMDT 1C...
LPV AND LNAV/VNAV NA. LNAV MDA 1720/HAT 409. NOTE: PROCEDURE NA AT NIGHT. DISREGARD NOTE: CIRCLING RWY 16, 34 NA AT NIGHT. CHANGE HELICOPTER NOTE TO READ: RWY 25 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. VDP NA.
2510091825-2710091825EST
10/9/25
1823Z
!FDC 5/9035 RRL IAP MERRILL MUNI, MERRILL, WI.
RNAV (GPS) RWY 7, AMDT 1D...
LPV NA. NOTE: PROCEDURE NA AT NIGHT. DISREGARD NOTE: CIRCLING RWY 16, 34 NA AT NIGHT. CHANGE HELICOPTER NOTE TO READ: RWY 7 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. VDP NA.
2510091823-2710091823EST
No
MON-SAT 0800-1700
CITY OF MERRILL
N2241 AIRPORT RD
MERRILL, WI 54452
Phone: 715-536-2024
RICH MCCULLOUGH
N2241 AIRPORT RD
MERRILL, WI 54452
Phone: 715-536-2024
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
RRL
--
MIRL RWY 07/25 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 16/34; - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Minor
None
None
Pilot Instruction
Aircraft Rental

Runway 07/25

5101 ft. x 75 ft.
ASPH
Good
NONE
MED

45,000lbs
65,000lbs
100,000lbs
--
  Runway 07 Runway 25
True Heading 69°249°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 11' 45"N 45° 12' 03"N
Longitude 89° 43' 31"W 89° 42' 24"W
Elevation 1,318' 1,306'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16/34

2997 ft. x 75 ft.
ASPH
Fair
NONE
MED

26,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 156°336°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 45° 12' 13"N 45° 11' 46"N
Longitude 89° 42' 36"W 89° 42' 19"W
Elevation 1,318' 1,303'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2ULTRALIGHT ACT ON & INVOF ARPT.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A70-100LLFUEL AVBL H24 VIA CREDIT CARD.
A81-APTMIRL RWY 07/25 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 16/34; - CTAF.
MERRILL MUNI (ICAO: KRRL, IATA: RRL) is a public airport located in MERRILL, WI, US.
