GRAHAM MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRPH
ICAO KRPHIATA RPHLocal RPH
GRAHAM MUNI
PublicPUB

2 miles E of GRAHAM, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 06' 39"N 98° 33' 17"W
Elevation
1123' MSL
Pattern Alt
2123' MSL
Mag Variation
4°E
Declination
7°E
Fuel
JET A (FSII), 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KRPH VFR
4:55 AM CST
Clear
10sm
69°F
63°F
29.93"Hg
160° 5kts
AO2 T02040174
METAR KRPH 041055Z AUTO 16005KT 10SM CLR 20/17 A2993 RMK AO2 T02040174
+ Add Your Business

KRPH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.025
(940) 521-0685

Common

CTAF 122.975
MIRL RWY 03/21 SS-SR PRESET TO LOW, TO INCR INTST ACTVT - CTAF.
UNICOM 122.975

Center

FORT WORTH CENTER 127.0
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 127.0/360.6 (MINERAL WELLS RCAG).

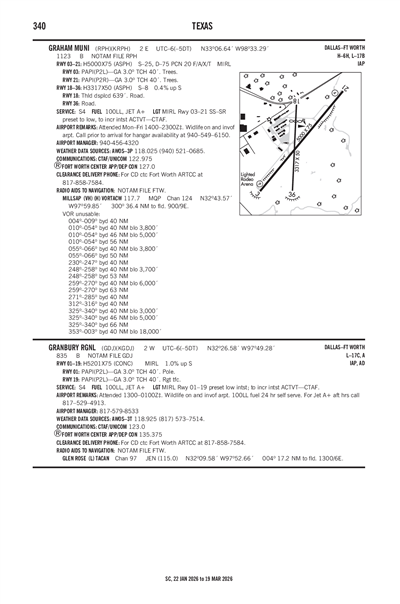

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSPS (52nm)
Tue, 3/3 11:22 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 5:00 AM CST
Broken 10,000'
Scattered 5,000'
6sm
040° 5kts
MVFR
5:00 AM CST - 12:00 AM CST
Overcast 1,500'
6sm
340° 9kts
TAF KSPS 040522Z 0406/0506 04005KT P6SM SCT050 BKN100
   FM041100 34009KT P6SM OVC015
KRPH
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
1114Z
4/13/26
1113Z
!RPH 02/012 RPH OBST TOWER LGT (ASR 1035877) 330737.00N0983536.00W (2.2NM WNW RPH) 1260.2FT (205.1FT AGL) U/S 2602271114-2604131113
2/19/26
2028Z
12/31/26
2359Z
Runway!RPH 02/006 RPH RWY 18/36 NOW 3317FT X 50FT 2602192028-2612312359
2/11/26
1832Z
5/10/26
2359Z
!RPH 02/002 RPH OBST TOWER LGT (ASR 1052445) 330710.00N0983513.00W (1.7NM WNW RPH) 1319.2FT (219.2FT AGL) U/S 2602111832-2605102359
1/3/26
1611Z
1/1/28
2359Z
Runway!RPH 01/002 RPH RWY 03 DECLARED DIST: TORA 4200FT TODA 4200FT ASDA 4200FT LDA 4200FT. 2601031611-2801012359
1/3/26
1611Z
1/1/28
2359Z
Runway!RPH 01/001 RPH RWY 21 THR DISPLACED 800FT MARKING NOT STD. DECLARED DIST: TORA 4200FT TODA 4200FT ASDA 4200FT LDA 4200FT 2601031611-2801012359
10/28/25
2212Z
12/31/26
1159Z
!RPH 10/011 RPH TWY ALL SFC MARKINGS FADED 2510282212-2612311159
FDC
12/20/25
0119Z
!FDC 5/2156 RPH IAP GRAHAM MUNI, GRAHAM, TX.
RNAV (GPS) RWY 21, ORIG-A...
LNAV MDA NA.
2512200119-2608012355EST
8/22/25
1541Z
!FDC 5/1880 RPH ODP GRAHAM MUNI, GRAHAM, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKEOFF MINIMUMS RWY 3, PROCEDURE NA. ALL OTHER DATA REMAINS AS PUBLISHED. 2508221541-2708221541EST
No
MON-FRI 0800-1700
CITY OF GRAHAM
BOX 1449
GRAHAM, TX 76450
Phone: 940-456-4320
JON DELAMARTER
1810 4TH STREET
GRAHAM, TX 76450
Phone: 940-456-4320
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
RPH
--
MIRL RWY 03/21 SS-SR PRESET TO LOW, TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
None

Runway 03/21

5001 ft. x 75 ft.
ASPH
Good
NONE
MED
20/F/A/X/T
25,000lbs
75,000lbs
--
--
  Runway 03 Runway 21
True Heading 40°220°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 06' 21"N 33° 06' 59"N
Longitude 98° 33' 35"W 98° 32' 57"W
Elevation 1,113' 1,114'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

3317 ft. x 60 ft.
ASPH
Fair
NONE


8,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 183°3°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 33° 06' 54"N 33° 06' 21"N
Longitude 98° 33' 18"W 98° 33' 20"W
Elevation 1,104' 1,123'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF ARPT.
A110-2FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A57-03ALSO 50 FT MKD POLE LINE 1630 FT DSTC, 28:1. CONTROLLING OBSTRUCTION EXCEEDS A 45 DEGREE SLOPE.
A57-18APCH RATIO 31:1 FM DSPLCD THR TO +23 FT ROAD, 730 FT FM DSPLCD THR, 85 FT RIGHT OF CNTRLN. APCH SLOPE 20:1 TO DTHLD.
A58-0315 FT TREES 0-200 FT DSTC.
A58-1821 FT RD, 62 FT DSTC, 7 FT FENCE 0 FT DSTC.
A58-2125 FT TREE, 190 FT DSTC, 245 FT L.
A58-3610 FT TREE, 10 FT DSTC, 90 FT R.
A75-HCALL PRIOR TO ARR FOR HNGR AVBL AT 940-456-4320.
A81-APTMIRL RWY 03/21 SS-SR PRESET TO LOW, TO INCR INTST ACTVT - CTAF.
GRAHAM MUNI (ICAO: KRPH, IATA: RPH) is a public airport located in GRAHAM, TX, US.
