KROW
ROSWELL AIR CENTER
PublicPUB

3 miles S of ROSWELL, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 17' 60"N 104° 31' 46"W
3671' MSL
4671' MSL
10E
JET A, JET A-1+, 100LL
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
4/17/25-5/15/25
KROW VFR
12:51 AM MDT
Clear
10sm
69°F
52°F
29.89"Hg
Calm
AO2 SLP060 T02060111 403110183
KROW 030651Z AUTO 00000KT 10SM CLR 21/11 A2989 RMK AO2 SLP060 T02060111 403110183
+ Add Your Business

KROW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.5

ATIS

ATIS
 128.45

ASOS

ASOS
575-286-1096
 128.45

Approach/Departure

APCH/P DEP/P
WEST OF V291
 120.35
APCH/P DEP/P IC
EAST OF V291
 119.6

Clearance Delivery

CD/P
 132.875

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.5

FAA A/FD Pages

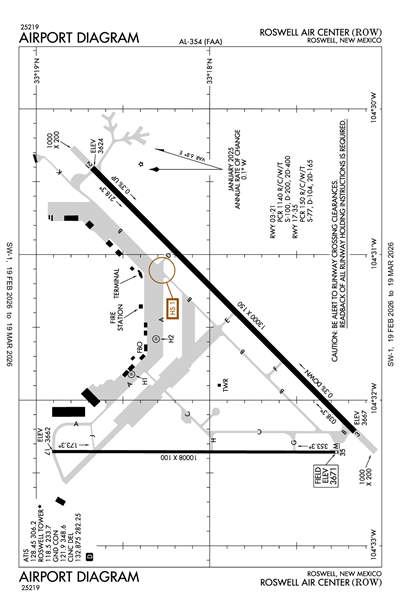

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KROW
Mon, 6/2 11:29 PM MDT
Tue, 6/3 12:00 AM MDT - Wed, 6/4 12:00 AM MDT
VFR
12:00 AM MDT - 1:00 PM MDT
Few 12,000'
6sm
260° 8kts
VFR
1:00 PM MDT - 8:00 PM MDT
Scattered 10,000'
6sm
020° 9kts
VFR
8:00 PM MDT - 12:00 AM MDT
Broken 9,000'
6sm
030° 12kts
Gusts 20kts
KROW 030529Z 0306/0406 26008KT P6SM FEW120
   FM031900 02009KT P6SM SCT100
   FM040200 03012G20KT P6SM BKN090
KROW
Domestic
5/21/250554Z !ROW 05/043 ROW NAV ILS RWY 21 TOPAN LOM U/S 2505210554-2506042300EST
5/20/251915Z !ROW 05/042 ROW TWY A WIP AIR RACE FENCING ADJ SOUTH EDGE 135FT
CLEARANCE BETWEEN BARRIERS 2505201915-2505302359
5/20/251330Z !ROW 05/041 ROW TWY C, J, M, H, G, TWY A BTN TWY C AND APCH END RWY 17 CLSD EXC AIR RACE ACFT DURING RACE HOURS TUE-FRI 1330-2359 2505201330-2505232359
5/19/251345Z !ROW 05/037 ROW RWY 17/35 CLSD EXC AIR RACE ACFT MON-FRI 1345-2359 2505191345-2505232359
5/18/251800Z !ROW 05/014 ROW AIRSPACE SEE FDC 5/8548 ZAB 91.145 AERIAL DEMONSTRATION 2505181800-2505232359
5/18/251700Z !ROW 05/018 ROW RWY 35 PAPI U/S 2505181700-2505240600
5/18/251700Z !ROW 05/017 ROW RWY 17 PAPI U/S 2505181700-2505240600
5/16/251603Z !ROW 05/021 ROW TWY C WIP ADJ 2505161603-2506061603
5/15/251735Z !ROW 05/020 ROW TWY S CLSD 2505151735-PERM
5/10/251915Z !ROW 05/013 ROW OBST TOWER LGT (ASR 1052110) 332405.00N1042247.00W (9.7NM NE ROW) 3996.1FT (245.1FT AGL) U/S 2505101915-2506102359
3/5/251703Z !ROW 03/004 ROW NAV ILS RWY 21 OM U/S 2503051703-2509102300EST
2/19/251523Z !ROW 02/017 ROW AD AP ALL SFC WIP CONST W SIDE MEN AND EQUIPMENT 2502191523-PERM
1/29/252257Z !ROW 01/035 ROW AIRSPACE SEE CME 01/034 UAS 2501292257-2601292359
FDC
5/13/251437Z !FDC 5/9874 ROW IAP ROSWELL AIR CENTER, ROSWELL, NM.
ILS Z OR LOC Z RWY 21, AMDT 18C...
S-LOC 21: DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TOPAN (RO) LOM OUT OF SERVICE. 2505131437-2506251436EST
Yes
0600-2100
AFT HR - 575-347-2054 OR 575-626-3697.
CITY OF ROSWELL
425 N RICHARDSON AVE
ROSWELL, NM 88201-4730
Phone: 575-624-6700
BOBBI THOMPSON
1 JERRY SMITH CIR
ROSWELL, NM 88203-8427
Phone: 239-980-5114
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ROW
--
ACTVT MALSR RWY 21; MIRL RWY 17/35 - CTAF. VASI RWY 03; PAPI RWY 17 & 35 - ON CONSLY. WHEN ATCT CLSD MIRL RWY 03/21 ON MED INTST.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
Low Pressure
Air Freight
Air Ambulance
Pilot Instruction

Runway 03/21

13000 ft. x 150 ft.
CONC
Excellent
NONE
MED

100,000lbs
200,000lbs
400,000lbs
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Right Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 33° 17' 10"N 33° 18' 41"N
Longitude 104° 32' 13"W 104° 30' 24"W
Elevation 3,667' 3,624'
Threshold Crossing Height 48 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V6L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17/35

10008 ft. x 100 ft.
ASPH
Good
GRVD
MED

77,000lbs
104,000lbs
165,000lbs
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 18' 55"N 33° 17' 16"N
Longitude 104° 32' 21"W 104° 32' 21"W
Elevation 3,662' 3,671'
Threshold Crossing Height 49 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

55 ft. x 55 ft.

ASPH
NONE


--
--
--
--
  Runway H1 Runway
True Heading 82°262°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 18' 27"N N/A
Longitude 104° 31' 49"W N/A
Elevation 3,660' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

55 ft. x 55 ft.

ASPH
NONE


--
--
--
--
  Runway H2 Runway
True Heading 82°262°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 18' 19"N N/A
Longitude 104° 31' 35"W N/A
Elevation 3,653' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1AFT HR EXIT RAMP/FBO AREA USE LGTD PEDESTRIAN GATE - 575-347-2054.
A110-3BIRDS ON & INVOF ARPT.
A110-6LRG ACFT LONG TERM STORAGE AVBL.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
ROSWELL AIR CENTER (ICAO: KROW, IATA: ROW) is a public airport located in ROSWELL, NM.
