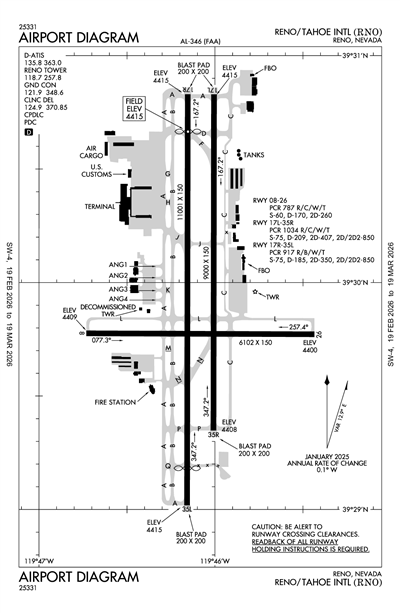

RENO/TAHOE INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRNO
ICAO KRNOIATA RNOLocal RNO
RENO/TAHOE INTL
PublicPUB

3 miles SE of RENO, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 29' 57"N 119° 46' 05"W
Elevation
4415' MSL
Pattern Alt
5215' MSL
Mag Variation
13°E
Declination
13°E
Fuel
JET A-1+, 100LL
FSS
RENO (RNO)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KRNO VFR
12:55 AM PST
Few 23,000'
Few 18,000'
10sm
42°F
31°F
30.09"Hg
Calm
AO2 SLP169 T00561006 58001
METAR KRNO 040855Z 00000KT 10SM FEW180 FEW230 06/M01 A3009 RMK AO2 SLP169 T00561006 58001
+ Add Your Business

KRNO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 135.8
(775) 348-1550
ASOS 135.8
(775) 432-6755

Common

UNICOM 122.95

Clearance

Clearance Delivery 124.9

Ground

RENO GROUND 121.9

Tower

RENO TOWER 118.7

Arrival

ANAHO STAR 126.3
RWY 16L/R, RWY 34L/R
EELZA STAR 126.3
RWY 34L/R
KLUBS STAR 126.3
MYBAD STAR 126.3
RWY 16L/R
ORRCA STAR 126.3
RYANN STAR 119.2
RWY 16 ONLY
SCOLA STAR 119.2
TARVR STAR 119.2
RWY 34L/R
WADOL STAR 126.3
RWY 34L/R
WINRZ STAR 126.3

Approach

NORCAL APPROACH 119.2
036-225 FMG
NORCAL APPROACH 126.3
226-035 FMG

Departure

ALPYN DP 119.2
MUSTANG DP 119.2
RWY 16L/R
NORCAL DEPARTURE 119.2
036-225 FMG
NORCAL DEPARTURE 126.3
226-035 FMG
PVINE DP 126.3
RWY 34L/R
RENO DP 119.2
RWY 16L/R
RENO DP 126.3
RWY 25, RWY 34L/R
SPARKS DP 119.2
RWY 17L/R
SPARKS DP 126.3
RWY 26, RWY 35L/R
WAGGE DP 119.2
RWY 16L/R
ZEFFR DP 119.2
RWY 16L/R

Flight Service

Flight Service 122.2

Emergency

Emergency 121.5

Other

CLASS C 119.2
036-225 FMG
CLASS C 126.3
226-035 FMG

Terminal Area Forecast

KRNO
Tue, 3/3 9:20 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 9:00 AM PST
Scattered 20,000'
6sm
250° 5kts
VFR
9:00 AM PST - 12:00 PM PST
Scattered 20,000'
6sm
220° 16kts
Gusts 26kts
VFR
12:00 PM PST - 4:00 PM PST
Scattered 20,000'
6sm
280° 23kts
Gusts 33kts
VFR
4:00 PM PST - 10:00 PM PST
Broken 10,000'
6sm
310° 15kts
TAF KRNO 040520Z 0406/0506 25005KT P6SM SCT200
   FM041700 22016G26KT P6SM SCT200
   FM042000 28023G33KT P6SM SCT200
   FM050000 31015KT P6SM BKN100
KRNO
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1500Z
3/4/26
2100Z
!RNO 03/008 RNO NAV LOC RWY 17R BC U/S 2603041500-2603042100
3/4/26
1500Z
3/4/26
2100Z
!RNO 03/007 RNO NAV ILS RWY 35L UNUSABLE DA TO TDZ 2603041500-2603042100
3/4/26
1500Z
3/4/26
2100Z
!RNO 03/006 RNO NAV ILS RWY 17R U/S 2603041500-2603042100
3/2/26
1811Z
5/12/26
2359Z
!RNO 03/002 RNO TWY ALL HLDG PSN SIGN FOR RWY 08/26 LGT U/S
2603021811-2605122359
3/2/26
1804Z
5/12/26
2359Z
!RNO 03/001 RNO TWY L BTN APCH END RWY 26 AND TWY C CLSD 2603021804-2605122359
3/2/26
1500Z
!RNO 02/302 RNO TWY L BTN APCH END RWY 08 AND TWY A CLSD 2603021500-2605012359EST
3/2/26
1500Z
Runway!RNO 02/301 RNO RWY 08/26 CLSD 2603021500-2605012359EST
FDC
3/4/26
1600Z
3/10/26
2200Z
!FDC 6/2878 RNO SID RENO/TAHOE INTL, RENO, NV.
WAGGE EIGHT DEPARTURE...
LOVELOCK TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HZN VORTAC OUT OF SERVICE. 2603041600-2603102200EST
3/4/26
1600Z
3/10/26
2200Z
!FDC 6/2877 RNO SID RENO/TAHOE INTL, RENO, NV.
PVINE FIVE DEPARTURE (RNAV)...
PYGOW TRANSITION: GPS REQUIRED,
HZN VORTAC OUT OF SERVICE. 2603041600-2603102200EST
8/27/25
1657Z
!FDC 5/4589 RNO IAP RENO/TAHOE INTL, RENO, NV.
RNAV (GPS) Y RWY 35L, AMDT 1A...
ALTERNATE MINIMUMS NA.
2508271657-2609081656EST
7/11/25
1526Z
!FDC 5/7017 RNO IAP RENO/TAHOE INTL, RENO, NV.
RNAV (RNP) Z RWY 17L, AMDT 2...
RNAV (RNP) Z RWY 17R, AMDT 2...
PLANVIEW NOTE AT TRUCK: (RNP 0.8).
PLANVIEW NOTE AT AVVYY: (RNP 0.5).
PLANVIEW NOTE AT WINRZ: (RNP 0.7) AND AT 230 KIAS.
INITIAL FROM HOBOA TO JUDPU NA.
2507111526-2707111526EST
4/29/25
1616Z
!FDC 5/2962 RNO IAP RENO/TAHOE INTL, RENO, NV.
RNAV (RNP) Y RWY 17L, AMDT 2...
RNAV (RNP) Y RWY 17R, AMDT 2...
PLANVIEW NOTE AT KLOCK: (RNP 0.50).
2504291616-2705011616EST
Yes
ALL
RENO-TAHOE AIRPORT AUTHORITY
P O BOX 12490
RENO, NV 89510
Phone: 775-328-6600
DAREN GRIFFIN, A.A.E.
P O BOX 12490
RENO, NV 89510
Phone: 775-328-6600
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Cargo Handling
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

6102 ft. x 150 ft.
CONC
Good
GRVD
MED

60,000lbs
170,000lbs
260,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 29' 47"N 39° 29' 46"N
Longitude 119° 46' 44"W 119° 45' 26"W
Elevation 4,409' 4,400'
Threshold Crossing Height 48 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3.2° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17L/35R

9000 ft. x 150 ft.
CONC
Good
GRVD
HIGH

75,000lbs
209,000lbs
407,000lbs
850,000lbs
  Runway 17L Runway 35R
True Heading 180°0°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 30' 50"N 39° 29' 21"N
Longitude 119° 46' 00"W 119° 46' 00"W
Elevation 4,415' 4,408'
Threshold Crossing Height 75 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3.35°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 17R/35L

11001 ft. x 150 ft.
CONC
Good
GRVD
HIGH

75,000lbs
185,000lbs
350,000lbs
850,000lbs
  Runway 17R Runway 35L
True Heading 180°0°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 30' 50"N 39° 29' 01"N
Longitude 119° 46' 09"W 119° 46' 09"W
Elevation 4,415' 4,414'
Threshold Crossing Height 77 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3.06° 3.54°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-1WATERFOWL ALL QUADRANTS ALL SEASONS. CONCENTRATED NW OF RWY 17R AND EAST OF RWY 17L.
A110-10GLIDER/SOARING OPER 30-50 MILES SOUTH OF ARPT DURING VFR WEATHER & MOUNTAIN WAVE WIND CONDITIONS 1100 TO SS.
A110-15TWY C BTN TWY L AND TWY D CLSD TO AIR CARRIER ACFT.
A110-16TWY A BETWEEN NORTH TWY B AND TWY D CLSD TO ACFT WITH WINGSPAN GREATER THAN 149 FT.
A110-17ALL COMMERCIAL AIRCRAFT CONTACT GROUND CONTROL FOR ADVISORIES PRIOR TO PUSH BACK ON THE TERMINAL RAMP.
A110-19INTENSIVE GLIDER ACTIVITY INVOF ARPT AND SURROUNDING AREAS UP TO 18000 FT.
A110-224 HRS PPR FOR TSNT ACFT PRKG WITH WINGSPANS GTR THAN 75 FT CALL 775-328-6600.
A110-20ANG: PPR 24 HR PN RQRD.
A110-21TWY M CLSD TO AIR CARRIER ACFT.
A110-22TWY J EAST OF RWY 17L/35R CLSD TO AIR CARRIER ACFT.
A110-23ANG: ANG OPS 1430-2359Z++ MON-FRI EXC HOL AND SKED DAYS OFF; OTR TIMES BY NOTAM; DSN 830-4709 OR C775-788-4709.
A110-24ANG: APN HAS 22 FT X 6 FT ACFT GND EQUIP (AGE) BOXES LCTD TO THE EAST OF EA PKG SPOT.
A110-26ACFT OVR 12500 LBS: WRITTEN PPR FOR TRG FLTS; FOR FTHR INFO CTC ARPT OPS 1-775-328-6600.
A110-27ANG: COMSEC MTRL STORAGE AVBL WITH PRIOR CDN AT 152 CF/SCXS, DSN 830-4798.
A110-28COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -13C.
A110-3TWY C BTN TWY L & TWY D RSTRD TO ACFT 100000 LBS OR LESS.
A110-4NOISE SENSITIVE AREA ALL QUADS. PILOTS OF TBJT ACFT USE RCMDD NOISE ABATEMENT PROCS; AVBL ON REQ.
A110-5NOISE NOTE CONT: PILOTS OF NON-TBJT ACFT USE BEST ABATEMENT PROCS AND SETTINGS. AVOID AS MUCH AS FEASIBLE FLYING OVER POPULATED AREAS.
A110-6MIL ACFT: TSNT ACFT EXECUTE STRAIGHT-IN FULL STOP APCH. OVERHEAD PAT NOT AUTH FOR TSNT ACFT.
A110-7MIL ACFT: NOISE ABTMT CRITICAL TERMINATE AFTERBURNER ASAP THEN CLIMB TO 6500 FT MSL ASAP.
A39-08/26PCR VALUE: 787/R/C/W/T
A39-17L/35RPCR VALUE: 1034/R/C/W/T
A39-17R/35LPCR VALUE: 917/R/B/W/T
A57-35LAPCH RATIO 37:1 TO DTHR.
E147800 FT AGL SNGL ENG; 1000 FT AGL MULT ENG/TURBOPROP/JET.
E80LDG RIGHTS ARPT, PPR - CALL (775) 784-5585; AFT HRS LDG WO PRIOR APVL NA.
RENO/TAHOE INTL (ICAO: KRNO, IATA: RNO) is a public airport located in RENO, NV, US.
