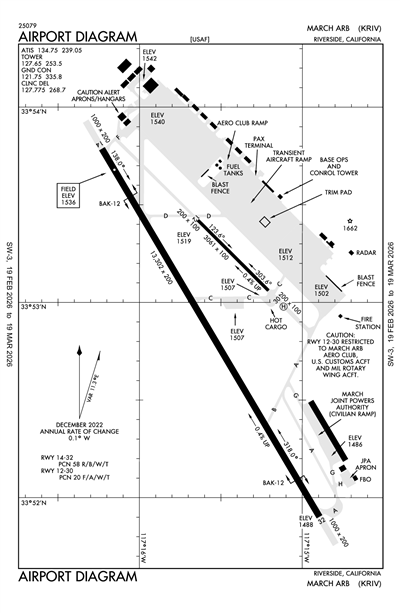

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRIV
MARCH ARB
PublicPUB

6 miles SE of RIVERSIDE, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 52' 55"N 117° 15' 32"W
1536' MSL
2536' MSL
14E
JET A, JET A+, CILI, 100LL
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
7/11/24-8/8/24
KRIV MVFR
3:40 AM PDT
Overcast 1,500'
10sm
61°F
57°F
29.88"Hg
320° 5kts
AO2 CIG 009 RWY14 SLP107
KRIV 191040Z AUTO 32005KT 10SM OVC015 16/14 A2988 RMK AO2 CIG 009 RWY14 SLP107
Add Your Business

KRIV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 134.75

Approach/Departure

APCH/P DEP/P
 133.5
APCH/S DEP/S
 119.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.75

Tower

LCL/P
 127.65

Other

CLASS C
 119.25
CLASS C
 133.5
COMD POST
 138.45

Terminal Area Forecast

KRIV
Thu, 9/19 12:24 AM PDT
Thu, 9/19 12:00 AM PDT - Fri, 9/20 3:00 AM PDT
VFR
12:00 AM PDT - 1:00 AM PDT
Few 1,500'
6sm
29.85"Hg
150° 6kts
MVFR
Becoming 1:00 AM PDT - 4:00 AM PDT
Broken 1,500'
6sm
29.88"Hg
150° 6kts
MVFR
Becoming 4:00 AM PDT - 8:00 AM PDT
Showers in vicinity
Overcast 2,500'
Broken 1,500'
6sm
29.88"Hg
180° 6kts
MVFR
Becoming 8:00 AM PDT - 12:00 PM PDT
Broken 15,000'
Broken 2,500'
Scattered 1,500'
6sm
29.88"Hg
220° 9kts
VFR
Becoming 12:00 PM PDT - 6:00 PM PDT
Broken 15,000'
Scattered 3,000'
Few 2,000'
6sm
29.85"Hg
270° 9kts
VFR
Temporary 2:00 PM PDT - 6:00 PM PDT
No Clouds
N/A
290° 12kts
Gusts 18kts
MVFR
Becoming 6:00 PM PDT - 9:00 PM PDT
Broken 2,500'
6sm
29.85"Hg
290° 9kts
MVFR
Becoming 9:00 PM PDT - 3:00 AM PDT
Overcast 2,500'
Broken 1,500'
6sm
29.88"Hg
290° 6kts
TAF AMD KRIV 190724Z 1907/2010 15006KT 9999 FEW015 QNH2986INS
   BECMG 1908/1909 15006KT 9999 BKN015 QNH2987INS
   BECMG 1911/1912 18006KT 9999 VCSH BKN015 OVC025 QNH2988INS
   BECMG 1915/1916 22009KT 9999 NSW SCT015 BKN025 BKN150 QNH2987INS WND 180V250
   BECMG 1919/1920 27009KT 9999 FEW020 SCT030 BKN150 QNH2985INS WND 230V320
   TEMPO 1921/2001 29012G18KT
   BECMG 2001/2002 29009KT 9999 BKN025 QNH2986INS
   BECMG 2004/2005 29006KT 9999 BKN015 OVC025 QNH2987INS TX26/1922Z TN12/1913Z
KRIV
Military
9/17/241328Z AERODROME FIRE FIGHTING AND RESCUE CAPABILITY IS 4,900 GALLONS.
9/16/241536Z NORTH PARKING RAMP PARKING SPOT D-4 CLOSED
9/10/240508Z RWY 32 RUNWAY CENTERLINE MARKINGS OBSCURED FIRST 5300FT DUE TO RUBBER BUILDUP.
8/26/240303Z PTD 372.2 UNSERVICEABLE.
8/16/241539Z USE CAUTION MEN AND EQUIPMENT CONSTRUCTING CONCRETE FOUNDATIONS 300' EAST OF SPOT P1 ON SOUTH RAMP
8/5/241602Z !KRIV M0219/24 RIV NAV ILS RWY 32 NOT MNT 2408051602-2411012359
7/29/241902Z AERODROME TAKEOFF MINIMUMS: RWY 32, 1200-3 OR STANDARD WITH A MINIMUM CLIMB OR 240 FT PER NM TO 3100, AND 2300-3 FOR VCOA.
7/29/241859Z AERODROME DEPARTURE PROCEDURES: RWY 32, CLIMB LEFT TURN HDG BETWEEN 150° TO 135° CCW FROM DER. DO NOT EXCEED 250 KIAS. FOR CLIMB IN VISUAL CONDITIONS OBTAIN ATC APPROVAL FOR VCOA WHEN REQUESTING IFR CLEARANCE. CLIMB IN VISUAL CONDITIONS. WITHIN 4.5 NM OF MARCH ARB, TO CROSS MARCH ARB AT OR ABOVE 3700 MSL, THEN CLIMB AND MAINTAIN 6000 DIRECT HDF VOR, THEN VIA HDF R-153 TO HDF R-153/PDZ R-130, DIRECT SKYES INT. DO NOT EXCEED 250 KIAS UNTIL PASSING SKYES. VCOA NOT AVAILABLE FOR CAT E AIRCRAFT.
7/29/241855Z AERODROME HI-VOR Z RWY 32 NA
7/29/241853Z AERODROME RWY 14 DEPARTURE PROCEDURES AND SKYES FOUR RWY 14 DEPARTURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEMS WITH GPS
7/29/241851Z AERODROME VOR Y RWY 32 NA
7/29/241849Z AERODROME ILS OR LOC Y RWY 32 MISSED APPROACH ISSUED BY ATC
7/29/241845Z AERODROME VOR HOMELAND HDF OTS
Yes
0700-2300
OPR H24; OPS FM 0700-1500Z++ RQR 452 OG/CC APVL, EXC FOR KRIV BASED ALERT MSN.
UNITED STATES AIR FORCE
2685 GRAEBER STREET, BLDG 395
MARCH ARB, CA 92518
Phone: 951-655-4053
BART W. DARNELL
2685 GRAEBER STREET, BLDG 395
MARCH ARB, CA 92518
Phone: 951-655-4053
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
RIV
--
--
N/A
N/A
No
No
None
NOT a Landing Rights Airport
Airport of Entry
2
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling
Charter Service

Runway 12/30

3061 ft. x 100 ft.
ASPH
Poor
NONE

20 /F/A/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern
Markings
Markings Condition
Latitude 33° 53' 25"N 33° 53' 04"N
Longitude 117° 15' 38"W 117° 15' 13"W
Elevation 1,519' 1,507'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

13302 ft. x 200 ft.
CONC
Good
NONE
HIGH
58 /R/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 149°329°
Traffic Pattern Left Left
Markings BSC PIR
Markings Condition GOOD GOOD
Latitude 33° 53' 47"N 33° 51' 54"N
Longitude 117° 16' 14"W 117° 14' 54"W
Elevation 1,536' 1,488'
Threshold Crossing Height 56 ft. AGL 59 ft. AGL
Visual Glide Path Angle 2.59° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1CAUTION: NSTD RWY MRK-LANDING ZONE (LZ) MARK (3500X90 PAINTED ON RWY 32 FOR BASE ASGN C17 ACFT ONLY).
A110-11TSNT ACFT NO PRACTICE APCH 2100-0700.
A110-12GEN AVN OPS PMTD DUR FBO BUS HRS. FBO BUS HRS 1400-0600Z++ MON-FRI, OPEN SAT-SUN (IF REQ PRIOR TO CLOSE OF BUS FRI) AND WILL HONOR MEDICAL REQ MADE AT ANY TIME, CALL 951-247-2111.
A110-13USE EXTREME CAUTION FOR EXTV UAS OPS IN VCNTY.
A110-14NONSTANDARD TACAN CHECKPOINT SIGNS LCTD AT RWY A AND TWY F.
A110-16MIL RMK: 24 HR PN/PPR FOR ALL TRAN ACFT, CTC AFLD MGMT OPS DSN 447-4404/2422, C951-655-4404/2422.
A110-17MIL RMK: ALL INBD PAX/CARGO ACFT MUST CTC COMD POST DSN 447-4665 24 HR PRIOR TO ARR WITH TYPE CARGO AND NR OF PAX.
A110-18CSTMS/AG/IMG - CTC AFLD MGMT OPS DSN 447-4404/2422, C951-655-4404/2422 AT LEAST 24 HR PN TO ARR RQR. LTD SVC, NO RESIDENT CSTMS AGENT, BUT ON CALL H24, DRIVING FR ONTARIO INTL. NO-NTC ACFT THAT RQR CSTMS EXP MIN 2 HR DELAY. CSTMS RQR FOLLOWING FORMS FOR ARR ACFT - CBP FORM 7507 GENERAL DECLARATION, CBP FORM 6059B CUSTOMS DECLARATION FR ALL PERS ONBOARD LCTD HTTPS://WWW.CBP.GOV/NEWSROOM/PUBLICATIONS/FORMS, PAX/CARGO MANIFEST AS APPLICABLE. AIRCREW, PAX, CARGO RQR TO REMAIN IN ACFT TIL RELEASED BY CSTMS. APV LDG RIGHTS AND OVFT EXM REQ. NOT A PORT OF ENTRY, IMG SVC EXTREMELY LTD, CASE-BY-CASE BASIS. CTC PTD 2 HR PRIOR TO LDG VIA DRCT A/G COM OR FONE PATCH.
A110-19SERVICE - OIL: JOAP AVBL ONLY ON RESERVE WKEND. O-148.
A110-2CAUTION: EXTV GLIDER, SKYDIVING, BALLOONIST AND ULTRALIGHT ACT AT PERRIS ARPT, 7 NM S OF MARCH.
A110-20RSTD: V-22 OPS RSTD TO RWY 14/32. HELIPAD AND RWY 12/30 ARE UNSUITABLE FOR V-22 OPS DUE TO RWY IN VERY POOR COND AND FOD POTENTIAL.
A110-3CAUTION: HEAVY MILITARY FLIGHT TRAINING.
A110-4JOINT USE AIRPORT - OWNED AND OPERATED BY US AIR FORCE/ NO CIVIL TOUCH AND GO OPS OR MANEUVERS.
A110-5AIRFIELD USE AGREEMENT WITH CIVIL ARPT AUTH (MARCH INLAND PORT ARPT AUTH) MILITARY, CIVIL COMMERCIAL AND GENERAL AVIATION(GA) USES.
A110-6GA OPS - PPR AND/OR LANDING PERMIT NOT REQ FOR USE OF CIVIL APRON AND RAMPS/FBO INF. -FREEMAN HOLDINGS 951-247-2111 / FREQS 130.075.
A110-8RY 12/30 CLSD TO PUBLIC DUE TO MUNITIONS AND EXPLOSIVES OPS IN CLOSE PROXIMITY OF RY 12/30 PER UFC & DOD REGULATIONS.
A110-9TRANSPORTATION LIMITED, PRIOR COORDINATION REQUIRED, CTC DSN 447-7787 WKND.
MARCH ARB (ICAO: KRIV, IATA: RIV) is a public airport located in RIVERSIDE, CA.
