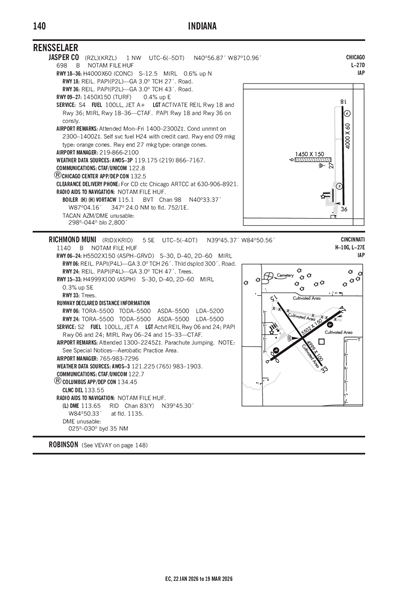

RICHMOND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRID
ICAO KRIDIATA RIDLocal RID
RICHMOND MUNI
PublicPUB

5 miles SE of RICHMOND, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 45' 22"N 84° 50' 34"W
Elevation
1140' MSL
Pattern Alt
2140' MSL
Mag Variation
6°W
Declination
3°W
Fuel
JET A, 100LL
FSS
TERRE HAUTE (HUF)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KRID MVFR
8:55 PM EST
Rain
Overcast 4,800'
Broken 1,200'
Scattered 300'
4sm
45°F
45°F
30.15"Hg
350° 5kts
AO2 P0020
METAR KRID 040155Z AUTO 35005KT 4SM RA SCT003 BKN012 OVC048 07/07 A3015 RMK AO2 P0020
+ Add Your Business

KRID FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 121.225
(765) 983-1903

Common

CTAF 122.7
ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 & 15/33 - CTAF.
UNICOM 122.7

Clearance

Clearance Delivery 133.55

Approach

COLUMBUS APPROACH 134.45

Departure

COLUMBUS DEPARTURE 134.45

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDAY (30nm)
Tue, 3/3 6:39 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
7:00 PM EST - 10:00 PM EST
Light Rain and Mist
Overcast 900'
3sm
210° 8kts
IFR
Temporary 7:00 PM EST - 10:00 PM EST
Light Rain and Mist
Overcast 500'
2sm
Calm
IFR
10:00 PM EST - 4:00 AM EST
Mist
Overcast 600'
2sm
360° 4kts
LIFR
10:00 PM EST - 4:00 AM EST
Light Rain and Mist
Overcast 300'
1sm
Calm
LIFR
4:00 AM EST - 10:00 AM EST
Light Rain and Mist
Overcast 300'
1.5sm
050° 4kts
IFR
10:00 AM EST - 4:00 PM EST
Light Rain and Mist
Overcast 800'
2sm
080° 5kts
IFR
10:00 AM EST - 4:00 PM EST
Light Rain and Mist
Overcast 500'
1.5sm
Calm
IFR
4:00 PM EST - 7:00 PM EST
Light Rain and Mist
Overcast 800'
4sm
120° 5kts
TAF KDAY 032339Z 0400/0424 21008KT 3SM -RA BR OVC009
   TEMPO 0400/0403 2SM -RA BR OVC005
   FM040300 36004KT 2SM BR OVC006
   PROB30 0403/0409 1SM -RA BR OVC003
   FM040900 05004KT 1 1/2SM -RA BR OVC003
   FM041500 08005KT 2SM -RA BR OVC008
   PROB30 0415/0421 1 1/2SM -RA BR OVC005
   FM042100 12005KT 4SM -RA BR OVC008
KRID
EffectiveExpiresCategoryNOTAM
Domestic
10/2/25
1912Z
Runway!HUF 10/045 RID RWY 24 RWY END ID LGT U/S 2510021912-2604072111EST
7/8/25
1328Z
!HUF 07/212 RID COM REMOTE TRANS/REC 133.55 U/S 2507081328-2607302000EST
No
0800-1745
RICHMOND BOAC
5169 SR 227 S.
RICHMOND, IN 47375
Phone: 765-983-7296
RODNEY MAYSE
5169 SR 227 S.
RICHMOND, IN 47374
Phone: 765-983-7296
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 & 15/33 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 06/24

5502 ft. x 150 ft.
ASPH
Excellent
GRVD
MED

30,000lbs
40,000lbs
60,000lbs
--
  Runway 06 Runway 24
True Heading 55°235°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 45' 06"N 39° 45' 37"N
Longitude 84° 51' 00"W 84° 50' 03"W
Elevation 1,135' 1,138'
Threshold Crossing Height 26 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 15/33

4999 ft. x 100 ft.
ASPH
Fair
NONE
MED

30,000lbs
40,000lbs
60,000lbs
--
  Runway 15 Runway 33
True Heading 145°325°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 45' 43"N 39° 45' 02"N
Longitude 84° 50' 55"W 84° 50' 18"W
Elevation 1,127' 1,140'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A16AFT HR 765-993-4139.
A57-06APCH RATIO 34:1 TO DTHR.
A57-24APCH RATIO 24:1 TO THR.
A58-1510 FT CROPS 105 FT L OF RWY END CNTRLN.
A58-3310 FT CROPS 100 FT L & R OF RWY END CNTRLN.
A81-APTACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 & 15/33 - CTAF.
RICHMOND MUNI (ICAO: KRID, IATA: RID) is a public airport located in RICHMOND, IN, US.
