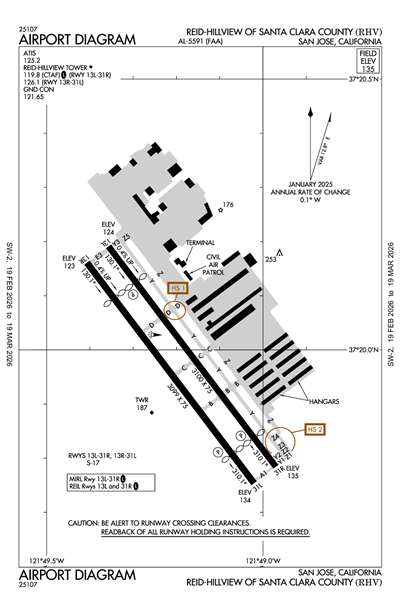

REID-HILLVIEW OF SANTA CLARA COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRHV
ICAO KRHVIATA RHVLocal RHV
REID-HILLVIEW OF SANTA CLARA COUNTY
PublicPUB

4 miles SE of SAN JOSE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 19' 58"N 121° 49' 11"W
Elevation
135' MSL
Pattern Alt
1135' MSL
Mag Variation
13°E
Declination
16°E
Fuel
JET A, 100, UL94
FSS
OAKLAND (OAK)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KRHV VFR
8:47 PM PST
Scattered 1,500'
10sm
55°F
50°F
30.14"Hg
310° 5kts
METAR KRHV 040447Z 31005KT 10SM SCT015 13/10 A3014
+ Add Your Business

KRHV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.2
(408) 923-7100

Common

CTAF 119.8
WHEN ATCT CLSD ACTVT REIL RWYS 13L & 31R; MIRL RWY 13L/31R - CTAF. PAPI RWYS 13L, 31R & 31L OPR CONSLY.
UNICOM 122.95

Ground

REID-HILLVIEW GROUND 121.65
0700-2200

Tower

REID-HILLVIEW TOWER 119.8
0700-2200 - RWY 13L/31R
REID-HILLVIEW TOWER 126.1
0700-2200 - RWY 13R/31L

Approach

NORCAL APPROACH 120.1
Initial Contact
NORCAL APPROACH 133.95
Secondary
NORCAL APPROACH 134.5
Secondary

Departure

NORCAL DEPARTURE 121.3

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KSJC (5nm)
Tue, 3/3 8:59 PM PST
Tue, 3/3 9:00 PM PST - Wed, 3/4 4:00 PM PST
MVFR
9:00 PM PST - 10:00 AM PST
Overcast 1,500'
6sm
320° 10kts
VFR
10:00 AM PST - 4:00 PM PST
Scattered 2,000'
6sm
320° 15kts
Gusts 25kts
TAF KSJC 040459Z 0405/0424 32010KT P6SM OVC015
   FM041800 32015G25KT P6SM SCT020
KRHV
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1948Z
5/23/26
2359Z
!RHV 02/018 RHV OBST CRANE (ASN 2024-AWP-5834-OE) 372006N1214856W (0.2NM ENE RHV) 313FT (180FT AGL) FLAGGED AND LGTD 2602231948-2605232359
2/23/26
1947Z
5/23/26
2359Z
!RHV 02/017 RHV OBST CRANE (ASN 2024-AWP-5833-OE) 372102N1214937W (1.1NM NNW RHV) 296FT (180FT AGL) FLAGGED AND LGTD 2602231947-2605232359
2/23/26
1946Z
5/23/26
2359Z
!RHV 02/016 RHV OBST CRANE (ASN 2024-AWP-4921-OE) 371952N1214846W (0.4NM ESE RHV) 283FT (150FT AGL) FLAGGED AND LGTD 2602231946-2605232359
FDC
6/27/25
1539Z
!FDC 5/9946 RHV ODP REID-HILLVIEW OF SANTA CLARA COUNTY, SAN JOSE, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
HENCE ONE DEPARTURE...
ADD TAKEOFF OBSTACLE NOTE: RWY 13L, TRANSMISSION LINE 4804FT FROM DER 1353FT LEFT OF CENTERLINE, 113 AGL/ 270 MSL (2025-AWP-7391-OE).
ADD TAKEOFF OBSTACLE NOTE: RWY 13R, TRANSMISSION LINE 4805FT FROM DER 1653FT LEFT OF CENTERLINE, 113 AGL/ 270 MSL (2025-AWP-7391-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2506271539-2706271539EST
Yes
0800-1800
COUNTY OF SANTA CLARA
2500 CUNNINGHAM AVE
SAN JOSE, CA 95148
Phone: 408-929-7700
ERIC PETERSON
2500 CUNNINGHAM AVE.
SAN JOSE, CA 95148
Phone: 408-918-7700
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
RHV
--
WHEN ATCT CLSD ACTVT REIL RWYS 13L & 31R; MIRL RWY 13L/31R - CTAF. PAPI RWYS 13L, 31R & 31L OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13L/31R

3100 ft. x 75 ft.
ASPH
Fair
NONE
MED

17,000lbs
--
--
--
  Runway 13L Runway 31R
True Heading 143°323°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD FAIR
Latitude 37° 20' 11"N 37° 19' 47"N
Longitude 121° 49' 21"W 121° 48' 58"W
Elevation 124' 135'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 13R/31L

3099 ft. x 75 ft.
ASPH
Fair
NONE


17,000lbs
--
--
--
  Runway 13R Runway 31L
True Heading 143°323°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR GOOD
Latitude 37° 20' 10"N 37° 19' 45"N
Longitude 121° 49' 24"W 121° 49' 01"W
Elevation 123' 134'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1RY 31R CALM WIND RY WHEN ATCT CLSD.
A110-2NO PURE JET AND NO SURPLUS MIL ACFT EXCEPT THOSE MEETING FAR 36 NOISE CRITERIA.
A110-3NO TURNS BLO 500 FT WHEN LEAVING PATTERN EXCEPT RWY 31R DEPARTURES. AS SOON AS PRACTICABLE AFTER DEPARTURE MAKE A SLIGHT RIGHT TURN TO AVOID SCHOOL ONE HALF MILE OFF DEPARTURE END.
A110-4NO TOUCH & GO LNDGS BTN 2100-0700.
A110-5NO SIMULATED EMERGENCIES IN ARPT TFC AREA.
A110-6BIRDS ON AND INVOF ARPT.
A110-7BE ALERT ALL PILOTS - DO NOT CONFUSE ILLUMINATION FROM STREET LGTS NORTH-EAST OF AND PARALLEL TO RHV RYS THAT COULD BE MISTAKEN FOR RY LGTS. ENSURE PROPER ACTVTN OF PILOT CTLD ARPT SFC LGTG.
A110-8FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-3748.
A13DIRECTOR OF AIRPORTS, ERIC PETERSON
A40-13R/31LRWY 13R/31L UNLGTD.
A57-13LRY 13L APCH RATIO TO DSPLCD THLD 30:1.
A57-13RRY 13R APCH RATIO TO DSPLCD THLD 27:1.
A57-31LAPCH RATIO TO DSPLCD THR 33:1
A57-31RRY 31R APCH RATIO TO DSPLCD THLD 34:1.
A58-31R& 31L +6 FT FENCE 150 FT FROM THR; RY 31R & 31L ROAD EDGE 155 FT FROM THR.
A70-UL94100LL UNAVBL.
A81-APTWHEN ATCT CLSD ACTVT REIL RWYS 13L & 31R; MIRL RWY 13L/31R - CTAF. PAPI RWYS 13L, 31R & 31L OPR CONSLY.
REID-HILLVIEW OF SANTA CLARA COUNTY (ICAO: KRHV, IATA: RHV) is a public airport located in SAN JOSE, CA, US.
