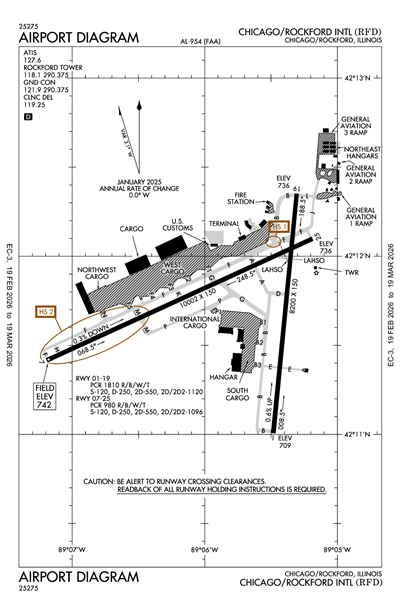

CHICAGO/ROCKFORD INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRFD
CHICAGO/ROCKFORD INTL
PublicPUB

68 miles NW of CHICAGO/ROCKFORD, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 11' 43"N 89° 05' 50"W
742' MSL
1742' MSL
03W
JET A, JET A-1+, 100LL
KANKAKEE (IKK)
CHICAGO
CHICAGO (ZAU)
4/17/25-5/15/25
KRFD IFR
4:54 PM CST
Light Rain and Mist
Overcast 600'
2.5sm
51°F
50°F
29.52"Hg
140° 9kts
Gusts 19kts
AO2 SLP000 P0016 T01060100
METAR KRFD 082254Z 14009G19KT 2 1/2SM -RA BR OVC006 11/10 A2952 RMK AO2 SLP000 P0016 T01060100
+ Add Your Business

KRFD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.6

Clearance

CD/P 119.25

Ground

GND/P 121.9

Tower

LCL/P 118.1

Emergency

EMERG 121.5

Other

TRSA 121.0
EAST
TRSA 126.0
WEST

Terminal Area Forecast

KRFD
Thu, 1/8 2:47 PM CST
Thu, 1/8 3:00 PM CST - Fri, 1/9 12:00 PM CST
IFR
3:00 PM CST - 5:00 PM CST
Light Showers and Rain and Mist
Overcast 1,500'
Broken 800'
3sm
150° 12kts
Gusts 18kts
IFR
5:00 PM CST - 9:30 PM CST
Light Showers and Rain and Mist
Overcast 700'
5sm
150° 15kts
Gusts 30kts
MVFR
9:30 PM CST - 2:00 AM CST
Mist and Showers in vicinity
Overcast 1,500'
Scattered 800'
5sm
190° 14kts
Gusts 24kts
MVFR
2:00 AM CST - 4:00 AM CST
Light Showers and Rain
No Clouds
3sm
240° 25kts
Gusts 35kts
MVFR
2:00 AM CST - 9:00 AM CST
Broken 1,500'
6sm
240° 25kts
Gusts 30kts
VFR
9:00 AM CST - 12:00 PM CST
Scattered 2,500'
6sm
300° 14kts
Gusts 24kts
TAF KRFD 082047Z 0821/0918 15012G18KT 3SM -SHRA BR BKN008 OVC015
   FM082300 15015G30KT 5SM -SHRA BR OVC007 WS020/18055KT
   FM090330 19014G24KT 5SM BR VCSH SCT008 OVC015
   FM090800 24025G30KT P6SM BKN015
   PROB30 0908/0910 24025G35KT 3SM -SHRA
   FM091500 30014G24KT P6SM SCT025
KRFD
EffectiveExpiresCategoryNOTAM
Domestic
1/6/26
2324Z
1/7/26
2324Z
Runway!RFD 01/034 RFD RWY 07 FICON 5/5/5 100 PCT WET OBS AT 2601062324. 2601062324-2601072324
1/6/26
2323Z
1/7/26
2323Z
Runway!RFD 01/033 RFD RWY 01 FICON 5/5/5 100 PCT WET OBS AT 2601062323. 2601062323-2601072323
1/6/26
1224Z
!RFD 01/030 RFD TWY A ELEVATED RWY GUARD LGT BTN RWY 07/25 AND TWY D NOT STD 2601061224-2601312359EST
1/4/26
0118Z
2/28/26
2359Z
Runway!RFD 01/024 RFD RWY 07/25 HLDG PSN SIGN FOR RWY 19 NOT LGTD 2601040118-2602282359
1/1/26
2012Z
2/28/26
2359Z
Runway!RFD 01/015 RFD RWY 19 2000FT DIST REMAINING SIGN MISSING 2601012012-2602282359
1/1/26
2011Z
2/28/26
2359Z
Runway!RFD 01/014 RFD RWY 01 6000FT DIST REMAINING SIGN MISSING 2601012011-2602282359
1/1/26
0716Z
2/15/26
0640Z
!RFD 01/012 RFD OBST POWER LINE LGT (ASN 2016-AGL-8989-OE) 421157N0890418W (1NM E RFD) 829FT (89FT AGL) U/S 2601010716-2602150640
12/31/25
1828Z
2/27/26
2359Z
!RFD 12/287 RFD TWY B ELEVATED RWY GUARD LGT AT APCH END RWY 19 NOT STD 2512311828-2602272359
12/31/25
1823Z
12/31/26
2359Z
!RFD 12/286 RFD AD AP BIRD ACT 2512311823-2612312359
12/31/25
1036Z
1/31/26
2300Z
!RFD 12/279 RFD TWY G ELEVATED RWY GUARD LGT BTN RWY 07/25 AND TWY F NOT STD 2512311036-2601312300
12/29/25
0946Z
2/12/26
0609Z
!RFD 12/246 RFD OBST POWER LINE LGT (ASN 2016-AGL-8993-OE) 421139N0890413W (1.2NM E RFD) 845FT (89FT AGL) U/S 2512290946-2602120609
12/25/25
0439Z
5/31/26
2359Z
!RFD 12/229 RFD TWY F EDGE MARKINGS BTN TWY F1 AND TWY F2 NOT STD 2512250439-2605312359
12/16/25
0049Z
1/16/26
2359Z
Runway!RFD 12/212 RFD RWY 25 PAPI U/S 2512160049-2601162359
12/9/25
1957Z
1/31/26
2359Z
!RFD 12/174 RFD AD AP WINDCONE FOR RWY 07 U/S 2512091957-2601312359
12/4/25
1230Z
1/18/26
1230Z
!RFD 12/076 RFD OBST TOWER LGT (ASN 2016-AGL-8986-OE) 421214N0890418W (1.2NM ENE RFD) 814FT (79FT AGL) U/S 2512041230-2601181230
12/1/25
1806Z
1/15/26
1206Z
!RFD 12/010 RFD OBST POWER LINE LGT (ASN 2016-AGL-8983-OE) 421226N0890418W (1.3NM ENE RFD) 821FT (57FT AGL) U/S 2512011806-2601151206
11/30/25
1417Z
1/31/26
2300Z
Runway!RFD 11/174 RFD RWY 19 PAPI U/S 2511301417-2601312300
11/27/25
1439Z
10/30/26
2359Z
!RFD 11/106 RFD AD AP ALL RWY SAFETY AREA NOT STD 2511271439-2610302359
10/30/25
1736Z
10/31/26
2300Z
!RFD 10/114 RFD TWY B SAFETY AREA AT TWY B2 SW SIDE IRREGULAR SFC 2510301736-2610312300
10/18/25
1954Z
5/29/26
2359Z
!RFD 10/060 RFD TWY J CL MARKINGS BTN GA 2 RAMP AND TWY L FADED 2510181954-2605292359
9/17/25
2145Z
!RFD 09/059 RFD NAV ILS RWY 07 IM U/S 2509172145-2609182111EST
FDC
11/17/25
1445Z
!FDC 5/7337 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
ILS RWY 7 (CAT II-III), AMDT 2B ...
S-ILS 7 CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADAR ALTIMETER. I-UDY INNER MARKER OUT OF SERVICE 2511171445-2606291445EST
3/25/25
1451Z
!FDC 5/7398 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
RADAR-1, AMDT 11...
S-25 MDA 1260/HAT 524 ALL CATS, VIS CAT C/D 1 1/2.
2503251451-2703251451EST
3/19/25
1447Z
!FDC 5/5077 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
RNAV (GPS) RWY 7, AMDT 1E...
LNAV/VNAV DA 1172/ HAT 431 ALL CATS.
2503191447-2703191447EST
2/12/25
1424Z
!FDC 5/2245 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
RNAV (GPS) RWY 25, AMDT 1C...
LNAV/VNAV DA 1259/HAT 523 ALL CATS, VIS 1 1/2 ALL CATS.
2502121424-2702151424EST
3/14/24
1730Z
!FDC 4/7358 RFD IAP CHICAGO/ROCKFORD INTL, CHICAGO/ROCKFORD, IL.
RNAV (GPS) RWY 25, AMDT 1C...
LNAV CAT C/D VISIBILITY 1 1/4 SM.
2403141730-2610241730EST
Yes
ALL
GREATER ROCKFORD ARPT. AUTH.
60 ARPT DRIVE
ROCKFORD, IL 61109-2902
Phone: 815-969-4011
ZACHARY OAKLEY
60 AIRPORT DR
ROCKFORD, IL 61109-2902
Phone: 815-965-4011
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
RFD
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 01/19

8200 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 01 Runway 19
True Heading 5°185°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 11' 00"N 42° 12' 21"N
Longitude 89° 05' 29"W 89° 05' 19"W
Elevation 709' 736'
Threshold Crossing Height -- 75 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 07/25

10002 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,096,000lbs
  Runway 07 Runway 25
True Heading 65°245°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 11' 25"N 42° 12' 06"N
Longitude 89° 07' 12"W 89° 05' 11"W
Elevation 742' 736'
Threshold Crossing Height 69 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1ARFF INDEX E EQUIP AVBL WITH 1 HR PPR CALL 815-969-4011
A110-2BIRDS & DEER ON & INVOF ARPT.
A110-4TRIPLE-TANDEM TRT550 RY 07/25 & TRT590 RY 01/19.
A110-5US CUSTOMS OFFICE RQR 2 HR ADVANCE NOTICE DURING BUSINESS HRS MON-FRI 0830-1700.
A33-07/25CONC PORTION GOOD CONDITION.
A39-01/19PCR VALUE: 1810/R/B/W/T
A39-07/25PCR VALUE: 980/R/B/W/T
CHICAGO/ROCKFORD INTL (ICAO: KRFD, IATA: RFD) is a public airport located in CHICAGO/ROCKFORD, IL.
