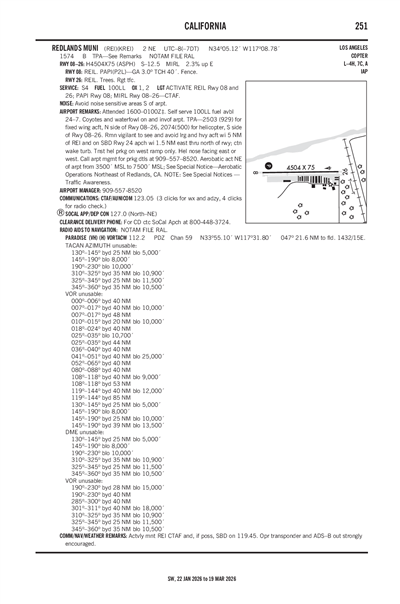

REDLANDS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KREI
ICAO KREILocal REI
REDLANDS MUNI
PublicPUB

2 miles NE of REDLANDS, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 05' 07"N 117° 08' 47"W
Elevation
1574' MSL
Pattern Alt
2503' MSL
Mag Variation
11°E
Declination
14°E
Fuel
100LL
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KSBD (5nm) VFR
1:40 AM PST
Clear
10sm
51°F
42°F
30.02"Hg
Calm
AO2 T01080054
METAR KSBD 040940Z AUTO 00000KT 10SM CLR 11/05 A3002 RMK AO2 T01080054
+ Add Your Business

KREI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.05
ACTVT REIL RWYS 08 & 26; PAPI RWY 08; MIRL RWY 08/26 - CTAF.; RMN VIGILANT TO SEE AND AVOID LRG AND HVY ACFT WI 5 NM OF REI AND ON SBD RWY 24 APCH WI 1.5 NM EAST THRU NORTH OF RWY; CTN WAKE TURB. ACTVLY MNT REI CTAF AND, IF POSS, SBD ON 119.45. OPR TRANSPONDER AND ADS-B OUT STRONGLY ENCOURAGED.
UNICOM 123.05
AUTOMATED UNICOM; 3 CLICKS FOR WX AND ADZY, 4 CLICKS FOR RADIO CHECK.

Approach

SOCAL APPROACH 127.0
NORTH-NE

Departure

SOCAL DEPARTURE 127.0
NORTH-NE

Other

CLASS C 127.0
NORTH-NE

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSBD (5nm)
Tue, 3/3 9:30 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 1:00 PM PST
Scattered 25,000'
6sm
VRB° 5kts
VFR
1:00 PM PST - 10:00 PM PST
Scattered 25,000'
6sm
290° 7kts
TAF KSBD 040530Z 0406/0506 VRB05KT P6SM SCT250
   FM042100 29007KT P6SM SCT250
KREI
EffectiveExpiresCategoryNOTAM
Domestic
8/27/25
1318Z
10/31/26
0057Z
!RAL 08/112 REI AIRSPACE AEROBATIC ACFT WI AN AREA DEFINED AS 1NM RADIUS OF POM071033.8 (2.5NM NE REI) ACT 3800FT-7800FT DLY SR-SS 2508271318-2610310057
No
0800-1700
CITY OF REDLANDS
35 CAJON STREET, SUITE 15A
REDLANDS, CA 92374
Phone: 909-798-7668
TED RICHARDSON
1745 SESSUMS DRIVE
REDLANDS, CA 92373
Phone: 909-557-8520
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
RAL
--
ACTVT REIL RWYS 08 & 26; PAPI RWY 08; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

4504 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 05' 07"N 34° 05' 07"N
Longitude 117° 09' 14"W 117° 08' 20"W
Elevation 1,472' 1,574'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1AVOID NOISE SENSITIVE AREAS S OF ARPT.
A110-2AEROBATIC ACT NE OF ARPT FROM 3800 FT MSL TO 7800 FT MSL; SEE SPECIAL NOTICE - AEROBATIC OPERATIONS NORTHEAST OF REDLANDS, CA.
A110-3COYOTES AND WATERFOWL ON AND INVOF ARPT.
A110-4FOR CD CTC SOCAL APCH AT 800-448-3724.
A110-5RMN VIGILANT TO SEE AND AVOID LRG AND HVY ACFT WI 5 NM OF REI AND ON SBD RWY 24 APCH WI 1.5 NM EAST THRU NORTH OF RWY; CTN WAKE TURB. ACTVLY MNT REI CTAF AND, IF POSS, SBD ON 119.45. OPR TRANSPONDER AND ADS-B OUT STRONGLY ENCOURAGED.
A110-7TSNT HEL PRKG ON WEST RAMP ONLY. HEL NOSE FACING EAST OR WEST. CALL ARPT MGMT FOR PRKG DTLS AT 909-557-8520.
A16MAIN NO: 909-557-8520
A70-100LLSELF SERVE 100LL FUEL AVBL 24-7.
A81-APTACTVT REIL RWYS 08 & 26; PAPI RWY 08; MIRL RWY 08/26 - CTAF.
A82AUTOMATED UNICOM; 3 CLICKS FOR WX AND ADZY, 4 CLICKS FOR RADIO CHECK.
E147TPA - 929 FOR FIXED WING ACFT, N SIDE OF RWY 08/26; 500 FOR HEL, S SIDE OF RWY 08/26.
REDLANDS MUNI (ICAO: KREI, IATA: REI) is a public airport located in REDLANDS, CA, US.
