iFlightPlanner



...

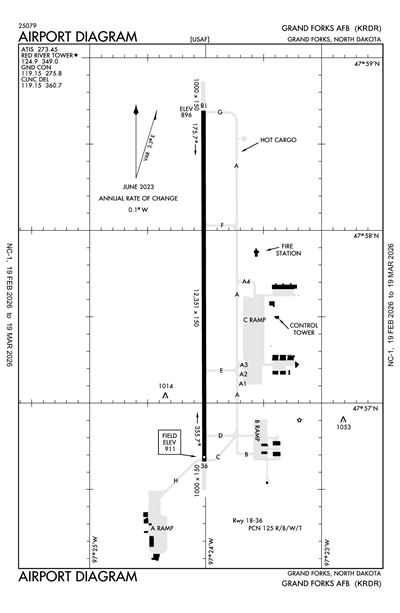

GRAND FORKS AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRDR
ICAO KRDRIATA RDRLocal RDR
GRAND FORKS AFB
PrivatePVT

13 miles W of GRAND FORKS, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 57' 41"N 97° 24' 03"W
Elevation
911' MSL
Pattern Alt
2411' MSL
Mag Variation
3°E
Declination
3°E
Fuel
None Listed
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KRDR LIFR
7:55 PM CST
Overcast 400'
10sm
22°F
19°F
30.11"Hg
160° 4kts
AO2A SLP219 T10581072 $
METAR KRDR 040155Z 16004KT 10SM OVC004 M06/M07 A3011 RMK AO2A SLP219 T10581072 $
+ Add Your Business

KRDR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Clearance

Clearance Delivery 119.15

Ground

RED RIVER GROUND 119.15
OPR 1200-0530Z++; CLSD HOL.

Tower

RED RIVER TOWER 124.9
OPR 1200-0530Z++; CLSD HOL.

Arrival

ARRIVAL 121.1
GRAND FORKS
ARRIVAL 126.6
RED RIVER

Approach

GRAND FORKS APPROACH 118.1

Departure

GRAND FORKS DEPARTURE 118.1

Center

GRAND FORKS CENTER 132.15
HIGH, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC (ZMP) ON FREQ 132.15/269.6 (GRAND FORKS RCAG) WHEN GRAND FORKS (RDR) APCH CTL CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

KRDR
Tue, 3/3 12:00 PM CST
Tue, 3/3 12:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
Temporary 12:00 PM CST - 4:00 PM CST
Mist
Overcast 200'
3.73sm
Calm
LIFR
12:00 PM CST - 5:00 PM CST
Overcast 300'
6sm
30.06"Hg
VRB° 6kts
MVFR
Becoming 5:00 PM CST - 6:00 AM CST
Broken 1,000'
6sm
30.06"Hg
VRB° 6kts
VFR
Becoming 6:00 AM CST - 6:00 PM CST
Scattered 4,000'
6sm
30.03"Hg
240° 12kts
Gusts 18kts
TAF KRDR 031800Z 0318/0424 VRB06KT 9999 OVC003 620033 QNH3007INS
   TEMPO 0318/0322 6000 BR OVC002 620023
   BECMG 0323/0324 VRB06KT 9999 BKN010 620103 QNH3007INS
   BECMG 0412/0413 24012G18KT 9999 SCT040 QNH3003INS TXM05/0417Z TNM08/0318Z
KRDR
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1630Z
2/26/26
2230Z
!GFK 02/429 RDR AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF RDR SFC-3500FT AGL ACFT CS FLC92 2602261630-2602262230
Military
2/25/26
1500Z
2/25/26
2200Z
SMALL UAS OPERATIONS IN SECTORS 2, 5, 17, 18, 22, 23, 24, 28, 31, AND 33 IN CLASS D AIRSPACE AT OR BELOW 400FT AGL.
2/24/26
1631Z
2/27/26
1631Z
M0119/26 NOTAMC M0117/26
2/24/26
1604Z
2/27/26
1604Z
M0118/26 NOTAMC M0116/26
2/24/26
1155Z
3/6/26
2359Z
RunwayRWY 18 ILS OTS
2/21/26
0254Z
2/27/26
2359Z
TaxiwayTWY E MANDATORY SIGN OTS
2/21/26
0253Z
2/27/26
2359Z
NORTH 1/11 RDR ON THE WEST SIDE UNSERVICEABLE
2/20/26
2352Z
2/27/26
2359Z
RunwayRWY 36 ILS IN SERVICE, UNMONITORED BY RAPCON
2/9/26
1400Z
5/9/26
2359Z
SMALL UAS OPERATIONS 1/2 MILE OR GREATER WEST OF RWY 18/36, IN CLASS D AIRSPACE AT OR BELOW 9000FT MSL
2/9/26
1400Z
5/9/26
2359Z
SMALL UAS OPERATIONS 1/2 MILE WEST OF THE RWY AT OR BELOW 400FT AGL
1/30/26
0131Z
2/28/26
2359Z
TaxiwayTWY C MANDATORY SIGN UNLIT
1/19/26
1933Z
4/7/26
2359Z
OB LIGHT ON ANTENNA LOCATED 2,895 FT WEST RWY 18/36, 2,759FT N OF RWY 36 THLD NOT LGTD, AGL/MSL UNK.
1/10/26
0446Z
3/27/26
2359Z
C RAMP OBSTACLE LIGHT LOCATED ON C EXTENTION BALLPARK LIGHT 5TH FROM THE SOUTH UNSERVICEABLE
1/10/26
0445Z
3/27/26
2359Z
INFORMATION ON TACAN CHECKPOINT SIGNS UNRELIABLE
1/10/26
0444Z
3/27/26
2359Z
OB LIGHT ON GLIDESLOPE LOCATED AT NORTH END OF RWY 18/36, WEST OF RWY, OTS.
1/9/26
2032Z
4/7/26
2359Z
DE-ICING SERVICES NOT AVAILABLE.
1/5/26
1735Z
4/4/26
2359Z
AerodromeAERODROME OPERATING HOURS 1200-0530Z++ MON-FRI. CLOSED SAT-SUN AND FEDERAL HOLIDAYS
Yes
ALL
USAF
GRAND FORKS AFB
GRAND FORKS, ND 58201
Phone: 701-747-4409
BASE OPERATIONS
GRAND FORKS AFB
GRAND FORKS, ND 58201
Phone: 701-747-4360
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Cargo Handling

Runway 18/36

12351 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
125/R/B/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition POOR POOR
Latitude 47° 58' 42"N 47° 56' 40"N
Longitude 97° 24' 03"W 97° 24' 03"W
Elevation 896' 911'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 2.6° 2.6°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-10JASU: (AM32A-86) (AM32-95)
A110-11CAUTION: UNCTL VEH TFC ON TWY AND RAMPS.
A110-13RSTD: ALL INBD PAX/CARGO ACFT MUST CTC COMD POST NO LATER THAN 30 MIN PRIOR TO LDG. ACFT WITH DGR MATERIALS CTC PTD 30 MIN PRIOR TO ETA.
A110-14FUEL: J8
A110-16OIL: OIL AVBL IN PACKAGE PRODUCT ONLY, HAND TRANSFER RQR. O-133-148
A110-22MISC: ACFT WITH VHF RDO EQPT ONLY MAY CTC AM OPS THRU ATC. NO HGR SPACE. ALL ACFT WITH DV ON BOARD CTC COMD POST 60 NM PRIOR LDG.
A110-24ON BASE LODGING FOR TRANS AIRCREWS UNAVBL.
A110-33CAUTION: UAV OPS WITHIN 11 DME HALF CIRCLE RDR R-180 THRU RDR R-360 W OF GRAND FORKS AFB, SFC TO FL 180.UAV OPS ENTIRE CLASS D AIRSPACE.
A110-35SERVICE: TRAN ALERT: OPR 1300-0100Z++ MON-FRI, 1400-2300Z++ SAT AND SUN. NO NML OPR ON FED HOL.
A110-38AFTER HRS REQ MUST HAVE APVL OF RW/CV.
A110-42RSTD: PPR ALL TSNT ACFT, CTC AFLD GMT DSN 362-4409, C701-747-4409 FAX EXTN 4212.
A110-46RSTD: LTD CLASSIFIED STOR FOR TRAN AIRCREWS.
A110-49MISC: WX SVC AVBL H24 AT DSN 362-4396, C701-747-4396. AN/FMQ-19 AUTOMATED OBSERVING SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC. CTC 15 OWS SCOTT AFB DSN 576-9755, C 618-256-9755 DUR WX FLT CLOSURE OR EVAC. BLDG OBSTN MAY IMPACT PREVAILING VIS 010--220-.
A110-50MISC: RWY COND CODE & FICON NOT RPT.
A110-51RSTD: BASH PHASE I & II DTRMD BY BGNG & END OF WATERFOWL MIGRATION; NOTAM WILL BE PUBL WHEN PHASE II IS IMPLEMENTED.
A110-53CAUTION: RWY SFC DETERIORATED. GROOVES IN RWY MAY NOT PRODUCE EXP BA WHEN THE RWY IS WET.
A110-54OPR 1200-0530Z++; CLSD HOL.
A23-18VFR OVERHEAD AND RECTANGULAR TFC PAT RGT HAND RWY 18.
A31-18/36RWY: FIRST/LAST 1100 FT OF RWY 18/36 IS CONCRETE; MIDDLE 10150 FT OF RWY 18/36 IS ASPHALT. RWY 18/36 GROOVED.
E100OIL AVBL IN PACKAGE PRODUCT ONLY, HAND TRANSFER RQR.
E147HVY, LRG, AND HI PER ACFT: OVHD 2500 FT MSL; RECTANGULAR 2000 FT MSL; LGT ACFT AND HEL 1500 FT MSL.
GRAND FORKS AFB (ICAO: KRDR, IATA: RDR) is a private airport located in GRAND FORKS, ND, US.
