iFlightPlanner



...

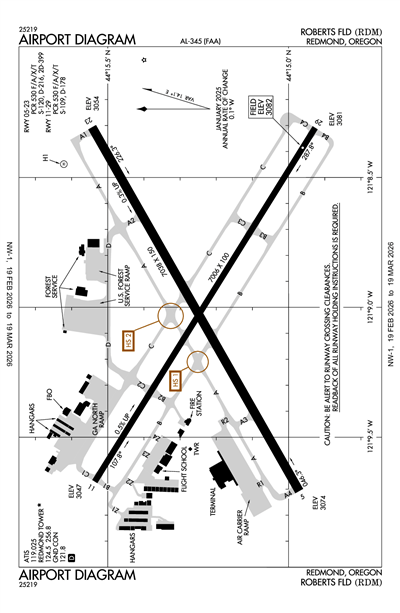

ROBERTS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRDM
ICAO KRDMIATA RDMLocal RDM
ROBERTS FLD
PublicPUB

1 miles SE of REDMOND, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 15' 15"N 121° 08' 60"W
Elevation
3082' MSL
Pattern Alt
4082' MSL
Mag Variation
14°E
Declination
14°E
Fuel
JET A, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KRDM VFR
6:56 PM PST
Few 7,500'
10sm
51°F
39°F
30.00"Hg
350° 5kts
AO2 SLP167 T01060039 53003
METAR KRDM 040256Z 35005KT 10SM FEW075 11/04 A3000 RMK AO2 SLP167 T01060039 53003
+ Add Your Business

KRDM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.025
(541) 548-1742
ASOS 119.025
(541) 504-8743

Common

CTAF 124.5
WHEN ATCT CLSD ACTVT HIRL RY 05/23, MIRL RY 11/29, MALSR RY 23, REIL RY 05, 11 & 29, AND TWY LGTS - CTAF.
UNICOM 122.95

Ground

REDMOND GROUND 121.8
0600-2200

Tower

REDMOND TOWER 124.5
0600-2200

Center

SEATTLE CENTER 126.15
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON FREQS126.15/269.475 (REDMOND RCAG).

Flight Service

Flight Service 122.5
(MMV)

Terminal Area Forecast

KRDM
Tue, 3/3 3:20 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 9:00 PM PST
Scattered 25,000'
6sm
210° 8kts
VFR
9:00 PM PST - 10:00 AM PST
Overcast 5,000'
6sm
VRB° 4kts
VFR
10:00 AM PST - 4:00 PM PST
Light Showers and Rain
Overcast 3,500'
6sm
270° 14kts
Gusts 22kts
TAF KRDM 032320Z 0400/0424 21008KT P6SM SCT250
   FM040500 VRB04KT P6SM OVC050
   FM041800 27014G22KT P6SM -SHRA OVC035
KRDM
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
1600Z
2/25/26
2000Z
Runway!RDM 02/084 RDM RWY 05/23 CLSD 2602251600-2602252000
2/20/26
0356Z
!RDM 02/071 RDM COM REMOTE COM OUTLET U/S 2602200356-2605202000EST
2/6/26
0334Z
!RDM 02/009 RDM NAV ILS RWY 23 GP U/S 2602060334-2609182000EST
1/27/26
1944Z
2/27/26
2359Z
!RDM 01/159 RDM OBST TOWER LGT (ASR 1239767) 441640.20N1210848.60W (1.4NM NE RDM) 3214.9FT (169.9FT AGL) U/S 2601271944-2602272359
FDC
2/24/26
1240Z
!FDC 6/9055 RDM IAP ROBERTS FLD, REDMOND, OR.
ILS OR LOC RWY 23, AMDT 6...
RNAV (GPS) RWY 11, AMDT 4...
RNAV (GPS) Y RWY 23, AMDT 2...
RNAV (GPS) Y RWY 29, AMDT 2B...
RNAV (GPS) Y RWY 5, AMDT 3A...
APT ELEV 3082. CIRC CAT A/B MDA 3600/HAA 518. TEMPORARY CRANE 3243 MSL 1.4NM NW OF RDM AIRPORT (2025-ANM-3822-OE).
2602241240-2610061240EST
2/19/26
1243Z
!FDC 6/6521 RDM IAP ROBERTS FLD, REDMOND, OR.
VOR-A, AMDT 7...
DELETE PROCEDURE NOTE: DME REQUIRED.
THIS IS VOR-A, AMDT 7A. 2602191243-PERM
1/23/26
1708Z
!FDC 6/6463 RDM IAP ROBERTS FLD, REDMOND, OR.
RNAV (GPS) Y RWY 23, AMDT 2...
CHANGE NOTE: CHART SPEED ICON IN PLANVIEW AT YUBUB: MAX 230 KIAS.
2601231708-2801231708EST
12/15/25
1650Z
!FDC 5/9263 RDM IAP ROBERTS FLD, REDMOND, OR.
RNAV (GPS) Y RWY 5, AMDT 3A...
LPV DA 3331/HAT 256 ALL CATS. LNAV/VNAV DA 3384/HAT 309 ALL CATS. TEMPORARY CRANE 3173 MSL, 872FT NW OF RWY 5 (2025-ANM-3180-NRA).
2512151650-2607271650EST
Yes
0400-2000
FOR FUEL AFT HRS CALL FBO 541-504-3848. UNICOM: FBO 122.85.
CITY OF REDMOND
411 SW 9TH STREET
REDMOND, OR 97756
Phone: (541) 504-3085
ZACHARY BASS
2522 SE JESSE BUTLER CIRCLE #17
REDMOND, OR 97756
Phone: (541) 504-3085
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
RDM
--
WHEN ATCT CLSD ACTVT HIRL RY 05/23, MIRL RY 11/29, MALSR RY 23, REIL RY 05, 11 & 29, AND TWY LGTS - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

7038 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
216,000lbs
399,000lbs
--
  Runway 05 Runway 23
True Heading 60°240°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 14' 58"N 44° 15' 33"N
Longitude 121° 09' 42"W 121° 08' 18"W
Elevation 3,074' 3,054'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 11/29

7006 ft. x 100 ft.
ASPH
Good
GRVD
MED

109,000lbs
178,000lbs
--
--
  Runway 11 Runway 29
True Heading 122°302°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 15' 32"N 44° 14' 56"N
Longitude 121° 09' 40"W 121° 08' 19"W
Elevation 3,047' 3,081'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

48 ft. x 48 ft.

CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 44° 15' 37"N N/A
Longitude 121° 08' 27"W N/A
Elevation 3,056' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-12TRANSIENT HELICOPTER OPS PREFERRED NORTH (CONCRETE) GENERAL AVIATION RAMP.
A110-13FOR CD IF UNA TO CTC ON FSS FREQ, CTC SEATTLE ARTCC AT 253-351-3694.
A110-14COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -16C.
A110-15PILOTS CONDUCTING EFVS OPS; BE AWARE LED ALS IN USE RWY 23.
A110-3OCNL WILDLIFE ON AND INVOF ARPT.
A110-4TERMINAL APRON NOT AVBL FOR GENERAL AVIATION ACFT.
A17-M1FOR FUEL AFT HRS CALL FBO 541-504-3848. UNICOM: FBO 122.85.
A30-H1PVT USE HELIPAD, CTC TWR. WHEN TWR CLSD USE CTAF.
A39-05/23PCR VALUE: 530/F/A/X/T
A39-11/29PCR VALUE: 530/F/A/X/T
A43-29UNUSBL BYD 5.0 NM FM THD, DOES NOT PRVD OBSTN CLNC.
A76-AMBLIFE FLIGHT
A76-AVNCSBY APPOINTMENT ONLY
A81-APTWHEN ATCT CLSD ACTVT HIRL RY 05/23, MIRL RY 11/29, MALSR RY 23, REIL RY 05, 11 & 29, AND TWY LGTS - CTAF.
E111ESTABD PRIOR TO 1959.
ROBERTS FLD (ICAO: KRDM, IATA: RDM) is a public airport located in REDMOND, OR, US.
