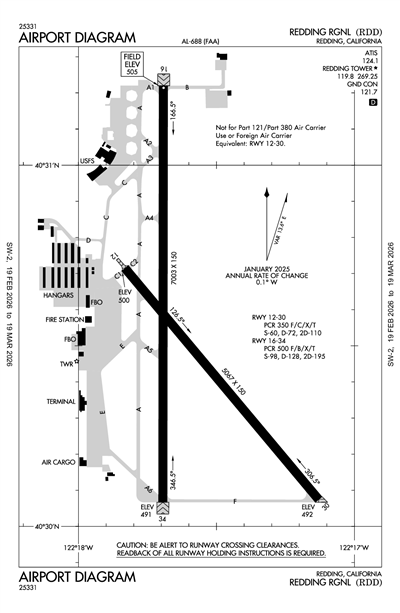

REDDING RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRDD
REDDING RGNL
PublicPUB

6 miles SE of REDDING, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 30' 32"N 122° 17' 36"W
505' MSL
1505' MSL
14E
JET A, 100LL
RANCHO MURIETA (RIU)
KLAMATH FALLS
OAKLAND (ZOA)
4/17/25-5/15/25
KRDD VFR
2:53 PM PST
Clear
10sm
53°F
24°F
30.30"Hg
020° 4kts
AO2 SLP260 T01171044
METAR KRDD 082253Z 02004KT 10SM CLR 12/M04 A3030 RMK AO2 SLP260 T01171044
+ Add Your Business

KRDD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.1

Ground

GND/P 121.7

Tower

LCL/P 119.8

Terminal Area Forecast

KRDD
Thu, 1/8 9:20 AM PST
Thu, 1/8 10:00 AM PST - Fri, 1/9 10:00 AM PST
VFR
10:00 AM PST - 11:00 AM PST
Sky Clear
6sm
340° 8kts
VFR
11:00 AM PST - 4:00 PM PST
Sky Clear
6sm
360° 10kts
Gusts 15kts
VFR
4:00 PM PST - 10:00 PM PST
Sky Clear
6sm
340° 8kts
VFR
10:00 PM PST - 10:00 AM PST
Sky Clear
6sm
340° 5kts
TAF KRDD 081720Z 0818/0918 34008KT P6SM SKC
   FM081900 36010G15KT P6SM SKC
   FM090000 34008KT P6SM SKC
   FM090600 34005KT P6SM SKC
KRDD
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
1600Z
1/7/26
2200Z
!RDD 01/010 RDD NAV ILS RWY 34 U/S 2601071600-2601072200
1/6/26
1457Z
!RDD 01/008 RDD NAV ILS RWY 34 DME NOT MNT 2601061457-2601202000EST
1/5/26
1956Z
5/5/26
1956Z
!RDD 01/007 RDD OBST TOWER LGT (ASR 1243393) 403027.40N1221634.10W (0.8NM E RDD) 620.1FT (124.0FT AGL) U/S 2601051956-2605051956
12/11/25
0000Z
12/4/26
2359Z
!RDD 12/014 RDD AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF
403906.90N1222000.50W (5.8NM NNE O85) SFC-400FT AGL DLY 0000-2359
2512110000-2612042359
12/5/25
1518Z
10/2/26
0152Z
!RDD 12/009 RDD AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
404306.80N1222542.80W (8.7NM NNW O85) SFC-400FT AGL DLY SR-SS
2512051518-2610020152
10/20/25
1900Z
Runway!RDD 10/034 RDD RWY 16/34 CHANGED TO RWY 17/35 2510201900-PERM
10/13/25
1300Z
Runway!RDD 10/030 RDD RWY 12/30 CHANGED TO RWY 13/31 2510131300-PERM
FDC
1/7/26
1630Z
1/13/26
2355Z
!FDC 6/1093 RDD SID REDDING RGNL, REDDING, CA.
SHASTA FOUR DEPARTURE...
DEPARTURE PROCEDURE LOST COMMUNICATIONS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RBL VORTAC OUT OF SERVICE. 2601071630-2601132355EST
1/7/26
1630Z
1/13/26
2355Z
!FDC 6/1092 RDD IAP REDDING RGNL, REDDING, CA.
ILS OR LOC RWY 34, AMDT 12...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RBL VORTAC OUT OF SERVICE. 2601071630-2601132355EST
1/7/26
1630Z
1/13/26
2355Z
!FDC 6/1091 RDD SID REDDING RGNL, REDDING, CA.
HOMAN THREE DEPARTURE...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RED BLUFF TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RBL VORTAC OUT OF SERVICE. 2601071630-2601132355EST
1/7/26
1630Z
1/13/26
2355Z
!FDC 6/1088 RDD SID REDDING RGNL, REDDING, CA.
KENDL FOUR DEPARTURE...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
TOMAD TRANSITION DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
FORTUNA TRANSITION, RED BLUFF TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RBL VORTAC OUT OF SERVICE. 2601071630-2601132355EST
1/7/26
1630Z
1/13/26
2355Z
!FDC 6/1087 RDD ODP REDDING RGNL, REDDING, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5C...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RBL VORTAC OUT OF SERVICE. 2601071630-2601132355EST
9/16/25
1308Z
!FDC 5/4640 RDD IAP REDDING RGNL, REDDING, CA.
RNAV (GPS) RWY 34, AMDT 2...
LPV ALL CATS DA 749/HAT 250, VIS 3/4 SM.
LNAV ALL CATS VIS 3/4 SM.
2509161308-2709161308EST
9/16/25
1212Z
!FDC 5/4578 RDD IAP REDDING RGNL, REDDING, CA.
ILS OR LOC RWY 34, AMDT 12...
VOR RWY 34, AMDT 11...
CHART NOTE: RWY 34 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2509161212-2709161212EST
9/15/25
1930Z
!FDC 5/4101 RDD IAP REDDING RGNL, REDDING, CA.
ILS OR LOC RWY 34, AMDT 12...
LOC BC RWY 16, AMDT 8...
RNAV (GPS) RWY 16, ORIG...
RNAV (GPS) RWY 34, AMDT 2...
VOR RWY 34, AMDT 11...
CIRCLING RWY 13 NA AT NIGHT.
2509151930-2709151930EST
9/15/25
1701Z
!FDC 5/3919 RDD IAP REDDING RGNL, REDDING, CA.
ILS OR LOC RWY 34, AMDT 12...
ILS ALL CATS DA 749/HAT 250, VIS 3/4 SM. LOC ALL CATS VIS 3/4 SM.
2509151701-2709151701EST
Yes
ALL
CITY OF REDDING
AIRPORTS DIVISION, 6751 WOODRUM CIRCLE, #200
REDDING, CA 96002-6071
Phone: 530-224-4321
ANDREW SOLSVIG
6751 WOODRUM, 6751 WOODRUM CIRCLE SUITE 200
REDDING, CA 96002
Phone: 530-224-4321
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RDD
--
ACTVT MALSR RWY 34; REIL RWY 16; PAPI RWY 16; HIRL RWY 16/34; MIRL RWY 12/30; TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 12/30

5067 ft. x 150 ft.
ASPH
Fair
NONE
MED

60,000lbs
72,000lbs
110,000lbs
--
  Runway 12 Runway 30
True Heading 140°320°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 30' 43"N 40° 30' 04"N
Longitude 122° 17' 50"W 122° 17' 08"W
Elevation 500' 492'
Threshold Crossing Height -- 32 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 16/34

7003 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

98,000lbs
128,000lbs
195,000lbs
--
  Runway 16 Runway 34
True Heading 180°0°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 31' 13"N 40° 30' 04"N
Longitude 122° 17' 41"W 122° 17' 42"W
Elevation 505' 491'
Threshold Crossing Height 40 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3.43° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-2U.S. FOREST SERVICE ON FLD, EXPECT HEAVY AIR TANKER ACTIVITY DURING FIRE SEASON.
A110-3FIELD CONDITIONS RWY; APNS & TWYS GOOD TO FAIR.
A110-5FOR NOISE ABATEMENT AVOID OVERFLIGHTS OF RESIDENTIAL HOUSING WHEN POSSIBLE.
A110-6USE CTN BIRDS INVOF ARPT.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC OAKLAND ARTCC AT 510-745-3380.
A14EMAIL: ASOLSVIG@CITYOFREDDING.ORG
A26PPR FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS 2130-0630 CALL AMGR (530) 224-4321.
A39-12/30PCR VALUE: 350/F/C/X/T
A39-16/34PCR VALUE: 500/F/B/X/T
A81-APTACTVT MALSR RWY 34; REIL RWY 16; PAPI RWY 16; HIRL RWY 16/34; MIRL RWY 12/30; TWY LGTS - CTAF.
A83WIND TEE & WIND CONE COLOCATED IN SEGMENTED CIRCLE.
REDDING RGNL (ICAO: KRDD, IATA: RDD) is a public airport located in REDDING, CA.
