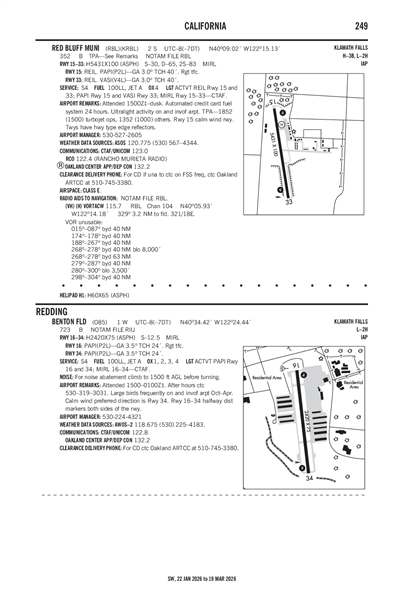

RED BLUFF MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRBL
ICAO KRBLIATA RBLLocal RBL
RED BLUFF MUNI
PublicPUB

2 miles S of RED BLUFF, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 09' 01"N 122° 15' 08"W
Elevation
352' MSL
Pattern Alt
1352' MSL
Mag Variation
14°E
Declination
17°E
Fuel
JET A, 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
KLAMATH FALLS
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KRBL VFR
9:54 PM PST
Clear
10sm
55°F
50°F
30.06"Hg
Calm
AO2 SLP177 T01280100 10211 20122 50010
METAR KRBL 040554Z AUTO 00000KT 10SM CLR 13/10 A3006 RMK AO2 SLP177 T01280100 10211 20122 50010
+ Add Your Business

KRBL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 120.775
(530) 567-4344

Common

CTAF 123.0
ACTVT REIL RWY 15 & 33; PAPI RWY 15 & VASI RWY 33; MIRL RWY 15/33 - CTAF.
UNICOM 123.0

Center

OAKLAND CENTER 132.2
LOW, APCH/DEP CTL SVC PRVDD BY OAKLAND ARTCC (ZOA) ON FREQS 132.2/350.3 (RED BLUFF RCAG).

Flight Service

Flight Service 122.4
(RIU)

Terminal Area Forecast

KRBL
Tue, 3/3 9:20 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 5:00 AM PST
Scattered 15,000'
6sm
VRB° 5kts
VFR
5:00 AM PST - 11:00 AM PST
Light Showers and Rain
Overcast 5,000'
6sm
VRB° 5kts
VFR
11:00 AM PST - 6:00 PM PST
Broken 25,000'
6sm
310° 12kts
Gusts 23kts
VFR
6:00 PM PST - 10:00 PM PST
Few 25,000'
6sm
300° 10kts
TAF KRBL 040520Z 0406/0506 VRB05KT P6SM SCT150
   FM041300 VRB05KT P6SM -SHRA OVC050
   FM041900 31012G23KT P6SM BKN250
   FM050200 30010KT P6SM FEW250
KRBL
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
1732Z
3/14/26
2359Z
!RBL 03/001 RBL AIRSPACE SEE ZOA 03/017 NUMEROUS LOW FLYING ACFT 2603021732-2603142359
2/1/26
2301Z
8/31/26
2359Z
!RBL 02/001 RBL SVC AUTOMATED WX BCST SYSTEM 120.775 U/S USE 530-567-4344 2602012301-2608312359
12/18/25
1548Z
12/31/26
2359Z
!RBL 12/005 RBL COM REMOTE COM A/G 120.775 U/S 2512181548-2612312359
12/9/25
1535Z
Runway!RBL 12/002 RBL RWY 15 RWY END ID LGT U/S 2512091535-2606092111EST
FDC
9/8/25
1622Z
!FDC 5/9601 RBL IAP RED BLUFF MUNI, RED BLUFF, CA.
RNAV (GPS) RWY 15, AMDT 1B...
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED; USE REDDING ALTIMETER SETTING AND INCREASE LPV DA TO 674 FEET AND INCREASE LNAV/VNAV DA TO 860 FEET AND INCREASE LPV AND LNAV/VNAV VISIBILITY ALL CATS 1/8 SM; INCREASE ALL MDAS 80 FEET AND LNAV VISIBILITY CATS C/D 1/8 SM AND CIRCLING VISIBILITY CATS C/D 1/4 SM.
2509081622-2709081622EST
5/8/25
1051Z
!FDC 5/7680 RBL IAP RED BLUFF MUNI, RED BLUFF, CA.
VOR RWY 33, AMDT 8B...
S-33 MDA 800/HAT 488 ALL CATS, VIS CAT C/D 1 3/8. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER NOT RECEIVED, USE RDD ALTIMETER SETTING AND INCREASE ALL MDA 80 FEET; INCREASE S-33 CATS C/D VISIBILITY 1/8 SM AND CIRCLING CATS C/D VISIBILITY 1/4 SM.
2505081051-2705082359EST
8/2/24
1228Z
!FDC 4/2162 RBL IAP RED BLUFF MUNI, RED BLUFF, CA.
VOR/DME RWY 15, AMDT 8B...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE REDDING ALTIMETER SETTING AND INCREASE ALL MDAS 80 FEET AND ALL CAT C/D VISIBILITY 1/4 SM.
2408021228-2608141224EST
No
0700-DUSK
CITY OF RED BLUFF
555 WASHINGTON ST
RED BLUFF, CA 96080
Phone: 530-527-2605
R. SCOTT MILLER
555 WASHINGTON ST
RED BLUFF, CA 96080
Phone: 530-527-2605
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RBL
--
ACTVT REIL RWY 15 & 33; PAPI RWY 15 & VASI RWY 33; MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 15/33

5431 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
65,000lbs
--
--
  Runway 15 Runway 33
True Heading 168°348°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 09' 27"N 40° 08' 35"N
Longitude 122° 15' 15"W 122° 15' 01"W
Elevation 347' 344'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

60 ft. x 65 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE
Markings Condition
Latitude 40° 09' 19"N N/A
Longitude 122° 15' 09"W N/A
Elevation 343' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2TWYS HAVE HWY TYPE EDGE REFLECTORS.
A110-5ULTRALIGHT ACT ON AND INVOF ARPT.
A110-6RWY 15 CALM WIND RWY.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC OAKLAND ARTCC AT 510-745-3380.
A70-100LLAUTOMATED CREDIT CARD FUEL SYSTEM 24 HRS.
A81-APTACTVT REIL RWY 15 & 33; PAPI RWY 15 & VASI RWY 33; MIRL RWY 15/33 - CTAF.
E147TPA: 1500 AGL TBJT OPS; 1000 AGL ALL OTHERS.
RED BLUFF MUNI (ICAO: KRBL, IATA: RBL) is a public airport located in RED BLUFF, CA, US.
