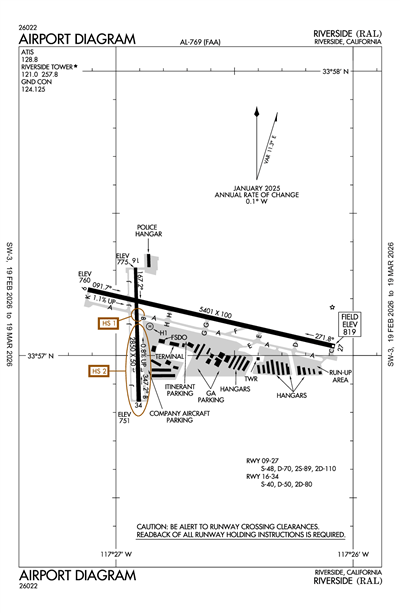

RIVERSIDE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KRAL
ICAO KRALIATA RALLocal RAL
RIVERSIDE
PublicPUB

4 miles SW of RIVERSIDE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 57' 07"N 117° 26' 42"W
Elevation
819' MSL
Pattern Alt
1819' MSL
Mag Variation
11°E
Declination
14°E
Fuel
JET A, 100LL
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KRAL VFR
2:53 AM PST
Clear
10sm
51°F
47°F
30.00"Hg
Calm
AO2 SLP147 T01060083
METAR KRAL 041053Z AUTO 00000KT 10SM CLR 11/08 A3000 RMK AO2 SLP147 T01060083
+ Add Your Business

KRAL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.8
(951) 688-7257
ASOS 128.8
(951) 352-4392

Common

CTAF 121.0
ACTVT MIRL RWYS 09/27 & 16/34; TWY LGTS; HELI PERI LGTS - CTAF. PAPI RWYS 09, 27 & 34 OPR CONSLY.
UNICOM 122.95

Ground

RIVERSIDE GROUND 124.125
0700-2000

Tower

RIVERSIDE TOWER 121.0
0700-2000

Arrival

SETER STAR 127.0
ZIGGY STAR 127.0

Approach

SOCAL APPROACH 135.4

Departure

SOCAL DEPARTURE 135.4

Flight Service

Flight Service 122.2

Other

CLASS C 135.4
SOUTH-SW

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KONT (9nm)
Tue, 3/3 9:30 PM PST
Tue, 3/3 10:00 PM PST - Thu, 3/5 4:00 AM PST
VFR
10:00 PM PST - 1:00 PM PST
Scattered 25,000'
6sm
VRB° 4kts
VFR
1:00 PM PST - 4:00 AM PST
Scattered 25,000'
6sm
250° 13kts
TAF KONT 040530Z 0406/0512 VRB04KT P6SM SCT250
   FM042100 25013KT P6SM SCT250
KRAL
EffectiveExpiresCategoryNOTAM
Domestic
2/2/26
1305Z
5/3/26
0500Z
!RAL 02/004 RAL OBST TOWER LGT (ASR 1015189) 335501.90N1172641.20W (2.1NM S RAL) 923.9FT (122.0FT AGL) U/S 2602021305-2605030500
12/30/25
2002Z
12/31/26
1159Z
Runway!RAL 12/160 RAL RWY 09 PAPI U/S 2512302002-2612311159
FDC
3/4/26
1500Z
3/11/26
1540Z
!FDC 6/2638 RAL IAP RIVERSIDE MUNI, RIVERSIDE, CA.
ILS OR LOC RWY 9, AMDT 8E...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
POM VORTAC OUT OF SERVICE. 2603041500-2603111540EST
2/24/26
1726Z
8/14/26
2355Z
!FDC 6/9368 RAL IAP RIVERSIDE MUNI, RIVERSIDE, CA.
VOR-A, ORIG-B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HDF VOR OUT OF SERVICE. 2602241726-2608142355EST
2/23/26
1446Z
!FDC 6/8358 RAL IAP RIVERSIDE, RIVERSIDE, CA.
VOR RWY 9, AMDT 1C...
PROCEDURE NA.
RAL VOR R-259 UNUSABLE.
2602231446-2802281446EST
1/28/26
1420Z
!FDC 6/7923 RAL IAP RIVERSIDE, RIVERSIDE, CA.
RNAV (GPS) RWY 27, ORIG-A...
VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 40).
2601281420-2801281420EST
Yes
M-F 0700-1700
S-S 0600-1600
CITY OF RIVERSIDE
6951 FLIGHT ROAD
RIVERSIDE, CA 92504
Phone: 951-351-6113
DR. DANIEL PRATHER
6951 FLIGHT ROAD
RIVERSIDE, CA 92504
Phone: 951-351-6113
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
RAL
--
ACTVT MIRL RWYS 09/27 & 16/34; TWY LGTS; HELI PERI LGTS - CTAF. PAPI RWYS 09, 27 & 34 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 09/27

5401 ft. x 100 ft.
ASPH
Good
NONE
MED

48,000lbs
70,000lbs
110,000lbs
--
  Runway 09 Runway 27
True Heading 103°283°
Traffic Pattern Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 33° 57' 14"N 33° 57' 02"N
Longitude 117° 27' 07"W 117° 26' 05"W
Elevation 760' 819'
Threshold Crossing Height 41 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 16/34

2850 ft. x 50 ft.
ASPH
Fair
NONE
MED

40,000lbs
50,000lbs
80,000lbs
--
  Runway 16 Runway 34
True Heading 179°359°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 57' 19"N 33° 56' 50"N
Longitude 117° 26' 55"W 117° 26' 54"W
Elevation 774' 751'
Threshold Crossing Height -- 36 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

60 ft. x 60 ft.
ASPH
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 33° 57' 06"N N/A
Longitude 117° 26' 51"W N/A
Elevation 766' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1ACFT DEP RYS 09 & 27 NOT VSBL TO ACFT AT OTHER END OF RY.
A110-10NUMEROUS POWER LINES 1,780 - 2,887 FEET NORTH OF RY 16 THLD AT OR BLO 80 FEET AGL.
A110-11S 1,400 FT OF RWY 34 & TWY J AND S 500 FT OF TWY B NOT VSB FM TWR.
A110-12TWY E STEEP SLOPE
A110-13TWY L NOT VSB FM TWR.
A110-14FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-15TURBINE ENG ACFT: PREFERRED ROLLING TKOF FOR NOISE MGMT.
A110-16RWY 27 DEP: FOR NOISE MGMT, AFTER DEP TURN RIGHT 10 DEGS; ASSUME CRS AFTER RCHG 1500 MSL.
A110-17NO HIGH PWR ENG MAINT RUNS BTN 2200-0700 LCL.
A110-18FOR NOISE MGMT: NO TURNS BFR ARPT BDRY AND 1500 MSL.
A110-5RWY 27: -20 FT DITCH 50 FT FM RWY 27 THLD.
A110-9POWER PLANT 3,000 FT NORTH OF RY 16 THLD PRODUCING THERMAL PLUME, AVOIDANCE ADZD,
A14DPRATHER@RIVERSIDECA.GOV
A35-16/34LTD BY ARPT OPERATOR TO 12500 LBS SINGLE WHEEL GEAR.
A58-27SUPPLEMENTAL WIND CONE 0 FT FM THR 350 FT S OF RY CNTRLN.
A70-100LLFOR FUEL AFTER HRS CALL (951) 321-0091.
A81-APTACTVT MIRL RWYS 09/27 & 16/34; TWY LGTS; HELI PERI LGTS - CTAF. PAPI RWYS 09, 27 & 34 OPR CONSLY.
E147TPA LGT ACFT 1000'; JET AND ALL OTHER ACFT 1500'.
RIVERSIDE (ICAO: KRAL, IATA: RAL) is a public airport located in RIVERSIDE, CA, US.
