KRAC
BATTEN INTL
PublicPUB

2 miles NW of RACINE, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 45' 40"N 87° 48' 50"W
674' MSL
1674' MSL
02W
JET A, JET A (FSII), 100LL
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KRAC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

ASOS

ASOS
262-635-0959
 121.425

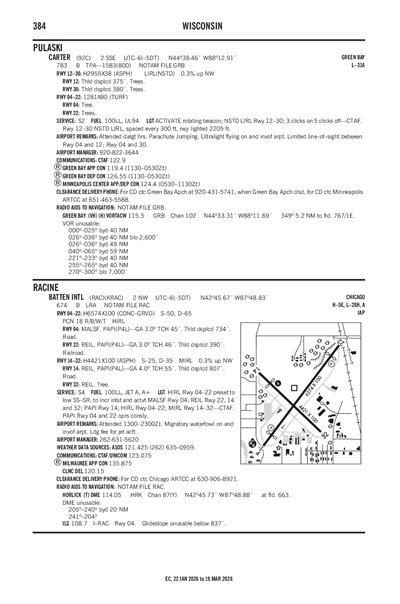

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KRAC
Domestic
1/3/251723Z !RAC 01/004 RAC AD AP WILDLIFE HAZARD OCCASIONAL DEER IN THE FIELDS NE SIDE 2501031723-PERM
FDC
12/26/241150Z !FDC 4/0874 RAC ODP BATTEN INTL, RACINE, WI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5B...
ADD TAKEOFF OBSTACLE NOTE: RWY 22, TEMPORARY CRANE BEGINNING 1316FT FROM DER, 141FT RIGHT OF CENTERLINE, 87FT AGL/728FT MSL (2024-AGL-6450/6453-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2412261150-2509281150EST
8/5/241928Z !FDC 4/3354 RAC IAP BATTEN INTL, RACINE, WI.
RNAV (GPS) RWY 32, ORIG-B...
LNAV MDA 1080/HAT 413 ALL CATS.
2408051928-2608051928EST
2/10/231848Z !FDC 3/4516 RAC IAP BATTEN INTL, RACINE, WI.
RNAV (GPS) RWY 22, ORIG-B...
LPV VIS 1 ALL CATS.
LNAV MDA 1080/HAT 414 ALL CATS. VIS CATS C/D 1 1/8.
VDP NA.
CHANGE ALTIMETER NOTE: LNAV CAT C AND D VISIBILITY 1/4 SM, REST OF ALTIMETER NOTE UNCHANGED.
2302101848-2502101848EST
No
0700-1700
RACINE COMMERCIAL APRT CORP.
3239 N. GREEN BAY RD
RACINE, WI 53404
Phone: 262-631-5620
TAMARA SANDBERG
3239 N. GREEN BAY RD
RACINE, WI 53404
Phone: 262-631-5620
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
RAC
--
HIRL RWY 04/22 PRESET TO LOW SS-SR; TO INCR INTST & ACTVT MALSF RWY 04; REIL RWY 22, 14 & 32; PAPI RWY 14; HIRL RWY 04/22; MIRL RWY 14/32 - CTAF. PAPI RWY 04 & 22 OPRS CONSLY.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

6574 ft. x 100 ft.
CONC
Good
GRVD
HIGH
18 /R/B/W/T
50,000lbs
65,000lbs
--
--
  Runway 04 Runway 22
True Heading 37°217°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 45' 16"N 42° 46' 08"N
Longitude 87° 49' 13"W 87° 48' 20"W
Elevation 672' 665'
Threshold Crossing Height 45 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 14/32

4421 ft. x 100 ft.
ASPH
Fair
NONE
MED

25,000lbs
35,000lbs
--
--
  Runway 14 Runway 32
True Heading 133°313°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 45' 53"N 42° 45' 23"N
Longitude 87° 49' 16"W 87° 48' 33"W
Elevation 674' 658'
Threshold Crossing Height 55 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-2FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
BATTEN INTL (ICAO: KRAC, IATA: RAC) is a public airport located in RACINE, WI.
