KPYM
PLYMOUTH MUNI
PublicPUB

4 miles SW of PLYMOUTH, MA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 54' 32"N 70° 43' 39"W
148' MSL
1148' MSL
16W
JET A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
7/11/24-8/8/24
KGHG (11nm) IFR
6:35 AM EDT
Overcast 500'
10sm
66°F
63°F
29.92"Hg
VRB° 4kts
AO2
KGHG 191035Z AUTO VRB04KT 10SM OVC005 19/17 A2992 RMK AO2
Add Your Business

KPYM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

ASOS

ASOS
508-732-8358
 135.625

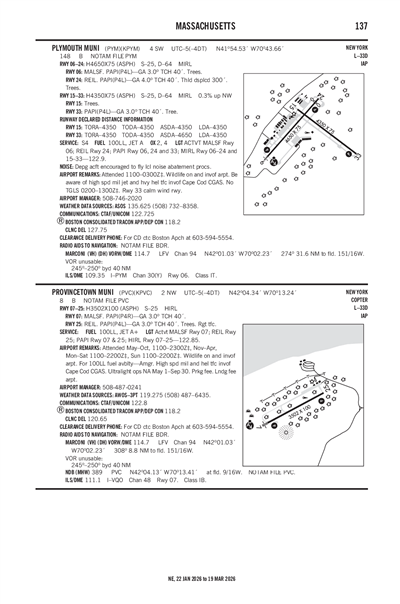

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFMH (18nm)
Thu, 9/19 1:20 AM EDT
Thu, 9/19 2:00 AM EDT - Fri, 9/20 2:00 AM EDT
IFR
2:00 AM EDT - 3:00 AM EDT
Showers in vicinity
Broken 800'
6sm
060° 6kts
IFR
3:00 AM EDT - 7:00 AM EDT
Light Showers and Rain and Mist
Overcast 700'
4sm
060° 6kts
LIFR
7:00 AM EDT - 8:00 AM EDT
Showers and Rain and Mist
Overcast 400'
4sm
050° 12kts
Gusts 20kts
IFR
8:00 AM EDT - 2:00 AM EDT
Light Showers and Rain and Mist
Overcast 600'
5sm
050° 12kts
Gusts 21kts
KFMH 190520Z 1906/2006 06006KT P6SM VCSH BKN008
   FM190700 06006KT 4SM -SHRA BR OVC007
   FM191100 05012G20KT 4SM SHRA BR OVC004
   FM191200 05012G21KT 5SM -SHRA BR OVC006 AMD NOT SKED
KPYM
Domestic
9/17/240431Z !PYM 09/006 PYM OBST TOWER LGT (ASR 1235743) 415041.00N0704538.10W (4.2NM SSW PYM) 247.7FT (152.9FT AGL) U/S 2409170431-2410020331
6/7/241756Z !PYM 06/004 PYM NAV ILS RWY 06 NOT MNT 2406071756-2502202000EST
1/22/241400Z !PYM 01/043 PYM AIRSPACE SEE ZBW 01/184 UAS 2401221400-2501171400
FDC
9/18/241100Z !FDC 4/6696 PYM IAP PLYMOUTH MUNI, PLYMOUTH, MA.
ILS OR LOC RWY 6, AMDT 1H...
MISSED APPROACH: CLIMB TO 640 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 100 AND ON ACK VOR/DME R-341 TO FREDO INT/ACK 45.00 DME AND HOLD,
BOS VOR/DME OUT OF SERVICE. 2409181100-2409251100EST
7/23/241344Z !FDC 4/6103 PYM IAP PLYMOUTH MUNI, PLYMOUTH, MA.
ILS OR LOC RWY 6, AMDT 1H...
CHANGE CIRCLING NOTE TO READ: CIRCLING RWY 15 NA AT NIGHT.
THIS IS ILS OR LOC RWY 6, AMDT 1I. 2407231344-PERM
7/23/240930Z !FDC 4/6073 PYM IAP PLYMOUTH MUNI, PLYMOUTH, MA.
RNAV (GPS) RWY 24, ORIG-D...
DELETE NOTE: STRAIGHT-IN RWY 24 NA AT NIGHT.
CHANGE CIRCLING NOTE TO READ: CIRCLING RWY 15 NA AT NIGHT.
THIS IS RNAV (GPS) RWY 24, ORIG-E. 2407230930-PERM
7/23/240927Z !FDC 4/6072 PYM IAP PLYMOUTH MUNI, PLYMOUTH, MA.
RNAV (GPS) RWY 15, ORIG-B...
CHANGE CIRCLING NOTE TO READ: CIRCLING RWY 15 NA AT NIGHT.
THIS IS RNAV (GPS) RWY 15, ORIG-C. 2407230927-PERM
7/23/240924Z !FDC 4/6071 PYM IAP PLYMOUTH MUNI, PLYMOUTH, MA.
RNAV (GPS) RWY 33, AMDT 1A...
CHANGE CIRCLING NOTE TO READ: CIRCLING RWY 15 NA AT NIGHT.
THIS IS RNAV (GPS) RWY 33, AMDT 1B. 2407230924-PERM
7/23/240920Z !FDC 4/6070 PYM IAP PLYMOUTH MUNI, PLYMOUTH, MA.
RNAV (GPS) RWY 6, AMDT 1E...
CHANGE CIRCLING NOTE TO READ: CIRCLING RWY 15 NA AT NIGHT.
THIS IS RNAV (GPS) RWY 6, AMDT 1F. 2407230920-PERM
No
0600-2200
TOWN OF PLYMOUTH
246 SOUTH MEADOW RD
PLYMOUTH, MA 02360
Phone: 508-746-2020
MATTHEW CARDILLO
246 SOUTH MEADOW RD
PLYMOUTH, MA 02360
Phone: 508-746-2020
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
PYM
--
ACTVT MALSF RWY 06; REIL RWY 24; PAPI RWY 06, 24 & 33; MIRL RWY 06/24 & 15/33 - 122.9.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
76
12
6
3
0
0
Major
Major
Low Pressure
Low Pressure
Air Freight
Crop Dusting
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

4650 ft. x 75 ft.
ASPH
Good
NONE
MED

25,000lbs
64,000lbs
--
--
  Runway 06 Runway 24
True Heading 40°220°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 41° 54' 15"N 41° 54' 51"N
Longitude 70° 44' 11"W 70° 43' 32"W
Elevation 135' 144'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

4350 ft. x 75 ft.
ASPH
Good
NONE
MED

25,000lbs
64,000lbs
--
--
  Runway 15 Runway 33
True Heading 130°310°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 54' 44"N 41° 54' 17"N
Longitude 70° 43' 48"W 70° 43' 04"W
Elevation 145' 133'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO TGLS 2100-0800 LCL.
A110-3BE AWARE OF HIGH SPD MIL JET AND HVY HEL TFC INVOF CAPE COD CGAS.
A110-4WILDLIFE ON AND INVOF AIRPORT.
A110-5DEPG ACFT ENCOURAGED TO FLY LCL NOISE ABATEMENT PROCS.
A110-6FOR CD CTC BOSTON APCH AT 603-594-5554. WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A110-7(CONTACT TITLE) TMAHER@TOWNHALL.PLYMOUTH.MA.US.
PLYMOUTH MUNI (ICAO: KPYM, IATA: PYM) is a public airport located in PLYMOUTH, MA.
