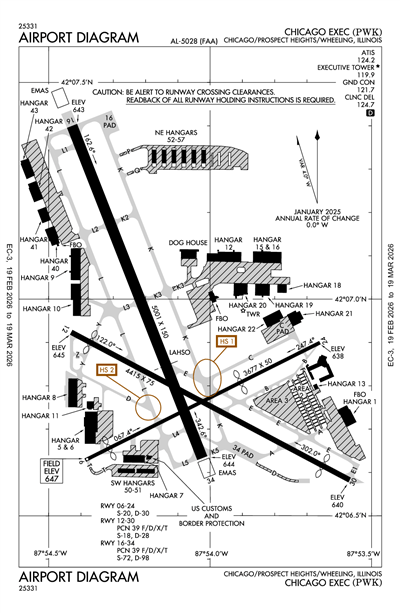

CHICAGO EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPWK
ICAO KPWKIATA PWKLocal PWK
CHICAGO EXEC
PublicPUB

18 miles NW of CHICAGO/PROSPECT HEIGHTS/WHEELING, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 06' 51"N 87° 54' 06"W
Elevation
647' MSL
Pattern Alt
1647' MSL
Mag Variation
4°W
Declination
2°W
Fuel
JET A-1+, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KPWK IFR
10:52 PM CST
Overcast 500'
8sm
34°F
33°F
30.23"Hg
Calm
AO2 SLP244 T00110006
METAR KPWK 040452Z AUTO 00000KT 8SM OVC005 01/01 A3023 RMK AO2 SLP244 T00110006
+ Add Your Business

KPWK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.2
ASOS (847) 465-0291

Common

CTAF 119.9
ACTVT REIL RWY 16 & 34; RLLS RWY 16; HIRL RWY 06/24; 16/34; MIRL RWY 12/30 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 124.7
Clearance Delivery 124.7
WHEN TWR CLSD

Ground

EXECUTIVE GROUND 121.7
0600-2200 MON-FRI & 0700-2200 SAT-SUN

Tower

EXECUTIVE TOWER 119.9
0600-2200 MON-FRI & 0700-2200 SAT-SUN

Approach

CHICAGO APPROACH 120.55
CHICAGO APPROACH 128.575
Secondary

Departure

CHICAGO DEPARTURE 120.55
CHICAGO DEPARTURE 128.575
Secondary

Terminal Area Forecast

KORD (9nm)
Tue, 3/3 8:56 PM CST
Tue, 3/3 9:00 PM CST - Thu, 3/5 12:00 AM CST
IFR
Temporary 9:00 PM CST - 12:00 AM CST
Broken 900'
N/A
Calm
MVFR
9:00 PM CST - 12:00 AM CST
Mist
Overcast 1,000'
Scattered 900'
6sm
050° 5kts
IFR
12:00 AM CST - 10:00 AM CST
Mist
Overcast 800'
Scattered 400'
5sm
040° 5kts
IFR
Temporary 4:00 AM CST - 8:00 AM CST
Mist
Broken 600'
Scattered 300'
2sm
Calm
MVFR
10:00 AM CST - 12:00 PM CST
Mist
Broken 2,000'
Scattered 600'
6sm
090° 10kts
MVFR
12:00 PM CST - 4:00 PM CST
Overcast 1,500'
Scattered 1,000'
6sm
090° 9kts
MVFR
4:00 PM CST - 9:00 PM CST
Light Showers and Rain and Mist
Overcast 1,000'
5sm
060° 9kts
IFR
9:00 PM CST - 12:00 AM CST
Light Drizzle and Mist
Overcast 500'
Scattered 300'
3sm
040° 6kts
TAF KORD 040256Z 0403/0506 05005KT 6SM BR SCT009 OVC010
   TEMPO 0403/0406 BKN009
   FM040600 04005KT 5SM BR SCT004 OVC008
   TEMPO 0410/0414 2SM BR SCT003 BKN006
   FM041600 09010KT 6SM BR SCT006 BKN020
   FM041800 09009KT P6SM SCT010 OVC015
   FM042200 06009KT 5SM -SHRA BR OVC010
   FM050300 04006KT 3SM -DZ BR SCT003 OVC005
KPWK
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
2130Z
3/2/26
1230Z
!PWK 02/178 PWK AD AP SFC COND NOT REP 2602272130-2603021230
2/26/26
2130Z
2/27/26
1230Z
!PWK 02/169 PWK AD AP SFC COND NOT REP 2602262130-2602271230
2/18/26
0509Z
3/5/26
0409Z
!PWK 02/134 PWK OBST TOWER LGT (ASR 1009402) 420922.30N0874820.00W (5.0NM ENE PWK) 896.0FT (247.0FT AGL) U/S 2602180509-2603050409
2/11/26
1615Z
5/15/26
2359Z
!PWK 02/125 PWK OBST TOWER LGT (ASR 1253385) 420824.20N0875308.50W (1.7NM NNE PWK) 817.9FT (161.1FT AGL) U/S 2602111615-2605152359
2/11/26
1615Z
5/15/26
2359Z
!PWK 02/124 PWK OBST TOWER LGT (ASR 1253382) 420824.10N0875306.90W (1.7NM NNE PWK) 817.9FT (161.7FT AGL) U/S 2602111615-2605152359
2/11/26
1614Z
5/15/26
2359Z
!PWK 02/123 PWK OBST TOWER LGT (ASR 1253380) 420820.20N0875307.40W (1.7NM NNE PWK) 817.9FT (161.1FT AGL) U/S 2602111614-2605152359
2/11/26
1613Z
5/15/26
2359Z
!PWK 02/122 PWK OBST TOWER LGT (ASR 1253376) 420820.50N0875308.90W (1.6NM NNE PWK) 817.9FT (161.1FT AGL) U/S 2602111613-2605152359
1/16/26
0606Z
3/2/26
0539Z
!PWK 01/247 PWK OBST POWER LINE LGT (ASN 2023-AGL-6953-OE) 420712N0875509W (.86NM WNW PWK) 749FT (102FT AGL) U/S 2601160606-2603020539
12/3/25
1607Z
!PWK 12/054 PWK TWY F CLSD EXC VEHICLES 2512031607-PERM
12/3/25
1604Z
!PWK 12/053 PWK APRON AREA 2 RAMP CLSD 2512031604-PERM
11/6/25
0358Z
10/31/26
2359Z
!PWK 11/044 PWK APRON HANGAR 13 RAMP CLSD 2511060358-2610312359
4/14/25
2133Z
4/14/26
2359Z
!PWK 04/076 PWK OBST TOWER LGT (ASN UNKNOWN) 420708N0874927W (3.8NM E PWK) 650FT (60FT AGL) NOT LGTD 2504142133-2604142359
Yes
ALL
CITIES OF WHEELING & PROSPECT HGTS
1020 S. PLANT ROAD
WHEELING, IL 60090
Phone: 847-537-2580
JEFF MILLER
1020 S. PLANT ROAD
WHEELING, IL 60090
Phone: 847-537-2580
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
PWK
--
ACTVT REIL RWY 16 & 34; RLLS RWY 16; HIRL RWY 06/24; 16/34; MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 06/24

3677 ft. x 50 ft.
ASPH
Fair
NONE
HIGH

20,000lbs
30,000lbs
--
--
  Runway 06 Runway 24
True Heading 63°243°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 42° 06' 38"N 42° 06' 54"N
Longitude 87° 54' 23"W 87° 53' 40"W
Elevation 647' 638'
Threshold Crossing Height 33 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

4415 ft. x 75 ft.
ASPH
Good
GRVD
MED
39/F/D/X/T
18,000lbs
28,000lbs
--
--
  Runway 12 Runway 30
True Heading 118°298°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 06' 55"N 42° 06' 35"N
Longitude 87° 54' 26"W 87° 53' 34"W
Elevation 645' 640'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 16/34

5001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
39/F/D/X/T
72,000lbs
98,000lbs
--
--
  Runway 16 Runway 34
True Heading 159°339°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 07' 24"N 42° 06' 38"N
Longitude 87° 54' 26"W 87° 54' 01"W
Elevation 643' 644'
Threshold Crossing Height 49 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights RLLS
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-11NOISE SENSITIVE AREA N & S.
A110-14CONDS NOT RPRTD MON, THU & FRI 2100-0630; TUE, WED & WKEND 1530-0630.
A110-19NOISE ABATEMENT PROC: RWY 34 HOLD PAD PREFERRED TURBINE RUN UP AREA; ALIGN 190 DEG FOR TKOF OR RUN UP. RWY 16 HOLD PAD ALIGN 315 DEG.
A110-23TWY F, P, Q & T EDGE LGT NA; REFLECTORS ONLY.
A110-24HANGAR 5 & 6 APRON, NE T QUARANT, SW T HANGARS PERMITTED TENANT ACFT PRKG ONLY. NO TRANSIENT ACFT PERMITTED.
A110-25NE HNGR TRANSVERSE OPS ENTER TWY Q; EXIT TWY P.
A110-26RWY GUARD LGTS NOT AVBL AT ALL RWY & TWY INTS.
A110-28FOR CD WHEN ATCT CLSD, AND IF UNA ON FREQ, CTC CHICAGO APCH AT 847-289-0926.
A110-29MAINT RUN UP AREA: TXY C ABM ATCT; EXHAUST FACING TWD CNTR OF ARPT. RWY 16 HOLD PAD MAINT RUN NA. TURBINE ENG RUN 2200- 0700 NA. ATCT RADIO CTC RQRD.
A110-30TAXILANE P; TWR VIEW PRLY OBSTD BY HNGRS & TREES. TAXILANE Q AND NE HNGRS; TWR VIEW PRLY OBSTD BY BLDGS & TREES. TWY T AND SW HNGRS; TWR VIEW PRLY OBSTD BY HNGRS.
A110-33CUST CLNC 2 HR PPR - 847-894-7292. TSNT UTILIZE FBO AFT CLR CUST. FBO CBP USER FEE.
A110-35ARR ALERT NOTICE PUBLD LNDG NW RWY 34 & RWY 30. VISIT FAA.GOV/AIRPORTS/RUNWAY_SAFETY/HOTSPOTS/AAN/PWK-ARRIVAL-ALERT-NOTICE.PDF
A110-37PRE-PAID ARFF SDBY SER AVBL W/72 HOUR NOTICE VISIT WWW.CHIEXEC.COM OR HTTPS://CHIEXEC.JOTFORM.COM/252055531962052
A110-38RWY SAFETY AREAS USED FOR EMERGENCY TAKE OFF AND LANDING ONLY.
A110-39WHEN SNOW AND/OR ICE REMOVAL OPS NOTAM ACTIVE, FULL STOP TAXI BACKS AND TOUCH AND GOES NOT PERMITTED.
A110-4BIRDS & WILDLIFE ON AND INVOF ARPT. PYROTECHNICS, WILDLIFE LASER BIRD CTL IN USE, PLASTIC COYOTE EFFIGIES INVOF A/P.
A110-40TWY F CLSD EXC VEHICLES PERMANTLEY.
A110-41AREA 2 CLSD PERM.
A23-34CTN: WHEN CRCG E FOR R TFC RWY 34 VFY ALNMT; DO NOT MISALIGN WITH RWY 30.
A43-16PAPI UNUSBL BYD 8 DEG LEFT & 9 DEG RIGHT OF CNTRLN.
A43-34PAPI UNUSBL BYD 8 DEG LEFT & RIGHT OF CNTRLN.
A49-16NSTD SPACING.
A57-06APCH RATIO 22:1 AT DTHR.
A57-12APCH RATIO 20:1 AT DTHR.
A57-16CTLG OBSTN EXCEEDS 45 DEG SLP.
A57-24APCH RATIO 20:1 AT DTHR.
A57-30APCH RATIO 21:1 AT DTHR.
A58-1215 FT ROAD & 6 FT FENCE.
A58-2414 FT ROAD & +40 FT TREES 150 FT & 50 FT L; 6 FT FENCE.
A58-30+6 FT FENCE 0 FT FM THR; +20 FT TREES 0 FT & 50 FT FM THR; 15 FT ROAD.
A81-APTACTVT REIL RWY 16 & 34; RLLS RWY 16; HIRL RWY 06/24; 16/34; MIRL RWY 12/30 - CTAF.
E111ARPT ESTD PRIOR TO 1959. NO OBJECTION FOR ASP ON RWYS 12L/30R & 16/34 ONLY.
E60-16_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) RWY 16 DEP END: 242.97 FT IN LENGTH BY 170.10 FT IN WIDTH, SETBACK 35 FT FROM RWY END.
E60-34_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) RWY 34 DEP END: 230.82 FT IN LENGTH BY 170.10 FT IN WIDTH, SETBACK 304.18 FT FROM RWY END.
E80ACUST USER FEE. MON-FRI 1100-1900.
CHICAGO EXEC (ICAO: KPWK, IATA: PWK) is a public airport located in CHICAGO/PROSPECT HEIGHTS/WHEELING, IL, US.
