iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPWG
MC GREGOR EXEC
PublicPUB

4 miles W of WACO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 29' 06"N 97° 18' 60"W
592' MSL
1592' MSL
06E
JET A-1+, 100LL
FORT WORTH (FTW)
SAN ANTONIO
FORT WORTH (ZFW)
10/31/24-11/28/24
KPWG VFR
5:56 AM CST
Clear
10sm
53°F
49°F
30.05"Hg
330° 4kts
AO2 SLP173 7//// T01170094 10167 20117 53002
KPWG 091156Z AUTO 33004KT 10SM CLR 12/09 A3005 RMK AO2 SLP173 7//// T01170094 10167 20117 53002
Add Your Business

KPWG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3PT

AWOS-3PT
254-848-4581
 135.525

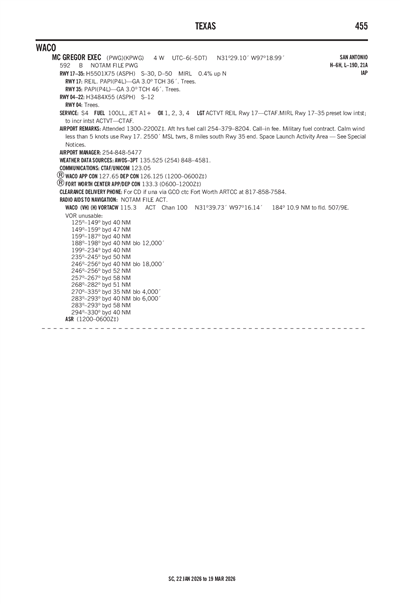

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KACT (9nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 9:00 AM CST
Scattered 6,000'
6sm
330° 7kts
VFR
9:00 AM CST - 7:00 PM CST
Scattered 10,000'
6sm
340° 8kts
VFR
7:00 PM CST - 6:00 AM CST
Scattered 25,000'
6sm
080° 3kts
KACT 091120Z 0912/1012 33007KT P6SM SCT060
   FM091500 34008KT P6SM SCT100
   FM100100 08003KT P6SM SCT250
KPWG
Domestic
11/4/240258Z !PWG 11/004 PWG OBST TOWER LGT (ASR 1254938) 312303.00N0971639.00W (6.3NM SSE PWG) 1295.9FT (656.2FT AGL) U/S 2411040258-2412032359
10/24/241250Z !PWG 10/008 PWG OBST TOWER LGT (ASR 1214396) 312644.40N0972337.70W (4.6NM WSW PWG) 1016.1FT (310.0FT AGL) U/S 2410241250-2504302359
10/24/241248Z !PWG 10/007 PWG OBST TOWER LGT (ASR 1033724) 312646.00N0972345.00W (4.7NM WSW PWG) 1025.9FT (316.9FT AGL) U/S 2410241248-2504302359
10/23/241400Z !PWG 10/005 PWG OBST TOWER LGT (ASR 1046229) 311919.20N0971903.00W (9.7NM S PWG) 2520.0FT (1667.0FT AGL) U/S 2410231400-2412312359
6/7/241819Z !PWG 06/003 PWG COM UNICOM/CTAF FREQ 122.8 CHANGED TO 123.05 2406071819-PERM
FDC
1/31/241909Z !FDC 4/9860 PWG IAP MC GREGOR EXEC, WACO, TX.
RNAV (GPS) RWY 35, AMDT 1C...
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WACO RGNL ALTIMETER SETTING: INCREASE LPV DA TO 861 FEET; INCREASE LNAV/VNAV DA TO 861 FEET; INCREASE ALL MDAS 40 FEET AND LNAV VISIBILITY CAT B/C TO 1 1/4 SM, AND CIRCLING VISIBILITY CAT B TO 1 1/4 SM, CAT C TO 2 1/4 SM.
2401311909-2601311908EST
8/11/231933Z !FDC 3/2961 PWG PART 1 OF 2 ODP MC GREGOR EXEC, WACO, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKEOFF OBSTACLE NOTES: RWY 17: TREE 897 FT FROM DER, 576 FT RIGHT
OF CENTERLINE, 38 FT AGL/592 FT MSL.
TREES BEGINNING 969 FT FROM DER, 268 FT LEFT OF CENTERLINE, UP TO
43 FT AGL/599 FT MSL.
TREES BEGINNING 1083 FT FROM DER, 53 FT LEFT OF CENTERLINE, UP TO
54 FT AGL/603 FT MSL.
TREE 1213 FT FROM DER, 11 FT RIGHT OF CENTERLINE, 52 FT AGL/599 FT
MSL.
TREES BEGINNING 1326 FT FROM DER, 241 FT LEFT OF CENTERLINE, UP TO
63 FT AGL/610 FT MSL.
TREE 1331 FT FROM DER, 167 FT RIGHT OF CENTERLINE, 60 FT AGL/608 FT
MSL.
TREE 1774 FT FROM DER, 246 FT RIGHT OF CENTERLINE, 62 FT AGL/616 FT
MSL.
TREE 1805 FT FROM DER, 271 FT RIGHT OF CENTERLINE, 67 FT AGL/620 FT
MSL. RWY 35: TREE 764 FT FROM DER, 515 FT LEFT OF CENTERLINE, 36
FT AGL/618 FT MSL.
TREE 966 FT FROM DER, 420 FT LEFT OF CENTERLINE, 39 FT AGL/619 FT
MSL.
MSL. 2308111933-2508081933EST
END PART 1 OF 2
!FDC 3/2961 PWG PART 2 OF 2 ODP MC GREGOR EXEC, WACO, TX.
TREE 1177 FT FROM DER, 474 FT LEFT OF CENTERLINE, 45 FT AGL/625 FT
MSL.
TREE 1207 FT FROM DER, 590 FT LEFT OF CENTERLINE, 46 FT AGL/629 FT
MSL. 2308111933-2508081933EST
END PART 2 OF 2
No
0700-1900
CITY OF MCGREGOR
P O BOX 192
MC GREGOR, TX 76657
Phone: 254-840-2806
BARRY LIGHTFOOT
PO BOX 192
MC GREGOR, TX 76657
Phone: 254-848-5477
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
PWG
--
ACTVT REIL RWY 17 - CTAF. MIRL RWY 17/35 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

3484 ft. x 55 ft.
ASPH
Good
NONE


12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 44°224°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 28' 46"N 31° 29' 11"N
Longitude 97° 19' 04"W 97° 18' 36"W
Elevation 568' 568'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5501 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
50,000lbs
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 29' 38"N 31° 28' 43"N
Longitude 97° 19' 06"W 97° 19' 05"W
Elevation 590' 566'
Threshold Crossing Height 36 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1GCO AVBL ON FREQ 121.725 THRU ACT CD & FLT SVCS.
A110-2CALM WIND LESS THAN 5 KNOTS USE RWY 17.
A110-32550 FT MSL TWRS, 8 MILES SOUTH RWY 35 END.
A110-4FOR CD IF UNA VIA GCO CTC FORT WORTH ARTCC AT 817-858-7584.
MC GREGOR EXEC (ICAO: KPWG, IATA: PWG) is a public airport located in WACO, TX.
