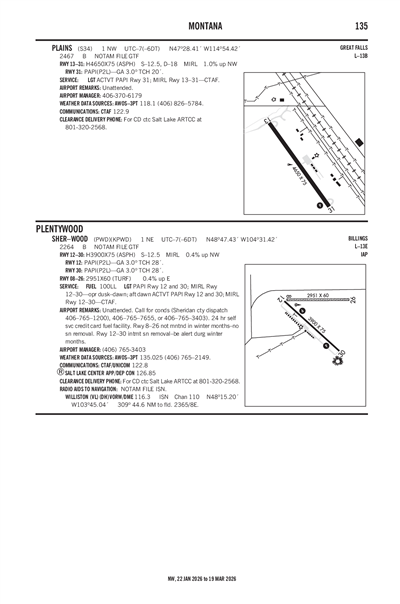

SHER-WOOD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPWD
ICAO KPWDIATA PWDLocal PWD
SHER-WOOD
PublicPUB

1 miles NE of PLENTYWOOD, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 47' 26"N 104° 31' 25"W
Elevation
2264' MSL
Pattern Alt
3264' MSL
Mag Variation
8°E
Declination
10°E
Fuel
100LL
FSS
GREAT FALLS (GTF)
Sectional
BILLINGS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KPWD VFR
11:55 PM MST
Clear
10sm
36°F
30°F
29.84"Hg
130° 7kts
AO2
METAR KPWD 040655Z AUTO 13007KT 10SM CLR 02/M01 A2984 RMK AO2
+ Add Your Business

KPWD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 135.025
(406) 765-2149

Common

CTAF 122.8
PAPI RWY 12 & 30; MIRL RWY 12/30 - OPR DUSK-DAWN; AFT DAWN ACTVT PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
UNICOM 122.8

Center

SALT LAKE CENTER 126.85
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (WATFORD CITY RCAG) ON FREQS 126.85/305.2.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KXWA (45nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 5:00 AM CST
Broken 25,000'
6sm
210° 13kts
VFR
5:00 AM CST - 9:00 AM CST
Broken 25,000'
6sm
250° 10kts
VFR
9:00 AM CST - 2:00 PM CST
Broken 5,000'
6sm
330° 8kts
VFR
2:00 PM CST - 6:00 PM CST
Broken 20,000'
6sm
050° 10kts
VFR
6:00 PM CST - 12:00 AM CST
Broken 20,000'
6sm
080° 16kts
TAF KXWA 040520Z 0406/0506 21013KT P6SM BKN250
   FM041100 25010KT P6SM BKN250
   FM041500 33008KT P6SM BKN050
   FM042000 05010KT P6SM BKN200
   FM050000 08016KT P6SM BKN200
KPWD
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
2124Z
4/12/26
2123Z
!GTF 02/231 PWD OBST TOWER LGT (ASR 1303192) 483252.90N1043505.50W (14.8NM S PWD) 2442FT (266FT AGL) U/S 2602262124-2604122123
2/13/26
1516Z
!GTF 02/072 PWD SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2602131516-2603042359EST
FDC
10/22/25
1122Z
!FDC 5/4577 PWD ODP SHER-WOOD, PLENTYWOOD, MT.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
CHANGE TAKEOFF MINIMUMS TO READ:
RWY 8, 26: NA ENVIRONMENTAL.
RWY 12, 30: STANDARD.
ALL OTHER DATA REMAINS AS PUBLISHED.
THIS IS TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES,
ORIG-A. 2510221122-PERM
7/29/25
1711Z
!FDC 5/6673 PWD IAP SHER-WOOD, PLENTYWOOD, MT.
RNAV (GPS) RWY 12, ORIG-D...
RNAV (GPS) RWY 30, ORIG-D...
CHANGE NOTE TO READ: CIRCLING RWY 8, 26 NA.
BARO-VNAV AND VDP NA WHEN USING WILLISTON ALTIMETER SETTING.
2507291711-2707291711EST
7/29/25
1709Z
!FDC 5/6671 PWD ODP SHER-WOOD, PLENTYWOOD, MT.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF MINIMUMS: RWY 8, 26: NA - ENVIRONMENTAL. ALL OTHER DATA REMAINS AS PUBLISHED. 2507291709-2707291709EST
No
UNATNDD
CALL FOR CONDS (SHERIDAN CTY DISPATCH 406-765-1200), 406-765-7655, OR 406-765-3403).
CITY OF PLENTWOOD & SHER CTY
100 WEST LAUREL AVE
PLENTYWOOD, MT 59254
Phone: 406-765-3403
MARY LYNCH
100 W. LAUREL AVE.
PLENTYWOOD, MT 59254
Phone: (406) 765-3403
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
PAPI RWY 12 & 30; MIRL RWY 12/30 - OPR DUSK-DAWN; AFT DAWN ACTVT PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 08/26

2951 ft. x 60 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 48° 47' 34"N 48° 47' 34"N
Longitude 104° 31' 46"W 104° 31' 02"W
Elevation 2,250' 2,261'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

3900 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 132°312°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 47' 33"N 48° 47' 07"N
Longitude 104° 31' 48"W 104° 31' 05"W
Elevation 2,252' 2,238'
Threshold Crossing Height 28 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 8/26 NOT MNTND IN WINTER MONTHS - NO SN REMOVAL.
A110-2FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-3RWY 12/30 INTMT SN REMOVAL - BE ALERT DURG WINTER MONTHS
A17-M1CALL FOR CONDS (SHERIDAN CTY DISPATCH 406-765-1200), 406-765-7655, OR 406-765-3403).
A70-100LL24 HR SELF SVC CREDIT CARD FUEL FAC.
A81-APTPAPI RWY 12 & 30; MIRL RWY 12/30 - OPR DUSK-DAWN; AFT DAWN ACTVT PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
SHER-WOOD (ICAO: KPWD, IATA: PWD) is a public airport located in PLENTYWOOD, MT, US.
