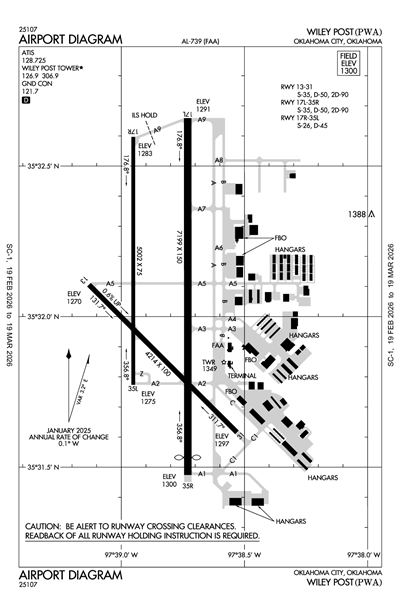

WILEY POST - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPWA
ICAO KPWAIATA PWALocal PWA
WILEY POST
PublicPUB

7 miles NW of OKLAHOMA CITY, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 32' 03"N 97° 38' 49"W
Elevation
1300' MSL
Pattern Alt
2300' MSL
Mag Variation
3°E
Declination
5°E
Fuel
JET A (FSII), 100LL
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KPWA VFR
9:53 PM CST
Scattered 1,200'
10sm
51°F
47°F
30.05"Hg
360° 10kts
AO2 SLP170 T01060083
METAR KPWA 040353Z AUTO 36010KT 10SM SCT012 11/08 A3005 RMK AO2 SLP170 T01060083
+ Add Your Business

KPWA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.725
(405) 798-2059
ASOS (405) 798-2013

Common

CTAF 126.9
0400-1300Z.; WHEN ATCT CLSD ACTVT MALSR RWY 17L & 35R; REIL RWY 17R & 35L; HIRL RWY 17L/35R; MIRL RWY 17R/35L, 13/31 - CTAF. PAPI RWY 17L & 35R, 17R & 35L ON CONSLY.
UNICOM 122.95

Ground

WILEY POST GROUND 121.7
0700-2200

Tower

WILEY POST TOWER 126.9
0700-2200

Arrival

BASTS RNAV STAR 124.6
CCASH RNAV STAR 124.6
DAWKS RNAV STAR 124.6
FAKEY RNAV STAR 124.6
JUDDG RNAV STAR 124.2
WAYMAN RNAV STAR 124.2

Approach

OKE CITY APPROACH 120.45
081-170
OKE CITY APPROACH 124.2
001-080
OKE CITY APPROACH 124.6
Initial Contact - 171-360

Departure

FUNNL DP 124.2
NORTH
FUNNL DP 124.6
SOUTH
KRMSN DP 124.2
NORTH
KRMSN DP 124.6
SOUTH
OKE CITY DEPARTURE 120.45
081-170
OKE CITY DEPARTURE 124.2
001-080
OKE CITY DEPARTURE 124.6
Initial Contact - 171-360
RDHWK DP 124.2
NORTH
RDHWK DP 124.6
SOUTH

Flight Service

Flight Service 122.4
(MLC)

Emergency

Emergency 121.5

Terminal Area Forecast

KOKC (9nm)
Tue, 3/3 5:20 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
Temporary 6:00 PM CST - 7:00 PM CST
Light Showers and Rain
No Clouds
N/A
Calm
VFR
6:00 PM CST - 12:00 AM CST
Broken 15,000'
Broken 5,000'
6sm
360° 10kts
MVFR
12:00 AM CST - 6:00 AM CST
Overcast 1,000'
6sm
010° 9kts
MVFR
12:00 AM CST - 6:00 AM CST
Light Thunderstorm and Rain
Overcast 1,000'
6sm
Calm
IFR
6:00 AM CST - 1:00 PM CST
Mist
Overcast 800'
5sm
010° 7kts
MVFR
1:00 PM CST - 6:00 PM CST
Overcast 1,500'
6sm
350° 9kts
TAF KOKC 032320Z 0400/0424 36010KT P6SM BKN050 BKN150
   TEMPO 0400/0401 -SHRA
   FM040600 01009KT P6SM OVC010
   PROB30 0406/0412 6SM -TSRA OVC010CB
   FM041200 01007KT 5SM BR OVC008
   FM041900 35009KT P6SM OVC015
KPWA
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
0033Z
!PWA 02/010 PWA NAV ILS RWY 35R LOC U/S 2602200033-2602272000EST
1/28/26
1900Z
3/16/26
2300Z
!PWA 01/067 PWA TWY B BTN TERMINAL RAMP AND TWY A3 CLSD 2601281900-2603162300
10/28/25
1336Z
5/31/26
2300Z
!PWA 10/028 PWA OBST CRANE (ASN 2023-ASW-16482-OE) 353045N0973806W (1.4NM SSE PWA) 1448FT (130FT AGL) FLAGGED AND LGTD 2510281336-2605312300
FDC
10/15/25
0903Z
!FDC 5/1011 PWA ODP WILEY POST, OKLAHOMA CITY, OK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
TAKEOFF OBSTACLE NOTES: RWY 13, TEMPORARY RIG, 937FT FROM DER, 538FT RIGHT OF CENTERLINE, 104 AGL/1401 MSL (2020-ASW-7302-NRA), TEMPORARY RIG, 2168 FT FROM DER, 695 FT RIGHT OF CENTERLINE, 104 AGL/1406 MSL (2020-ASW-6824-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2510150903-2604151800EST
5/12/25
1905Z
!FDC 5/9565 PWA IAP WILEY POST, OKLAHOMA CITY, OK.
RADAR-1 AMDT 2A ...
CIRCLING CAT C MDA 1880/HAA 581, VIS 1 5/8 2505121905-2705131904EST
Yes
ALL
CITY OF OKLAHOMA CITY
7100 TERMINAL DR., BOX 937
OKLAHOMA CITY, OK 73159
Phone: (405) 316-3200
KRISTY SLATER
5915 PHILIP J RHOADS RM 104
BETHANY, OK 73008
Phone: 405-316-4061
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
PWA
--
WHEN ATCT CLSD ACTVT MALSR RWY 17L & 35R; REIL RWY 17R & 35L; HIRL RWY 17L/35R; MIRL RWY 17R/35L, 13/31 - CTAF. PAPI RWY 17L & 35R, 17R & 35L ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 13/31

4214 ft. x 100 ft.
CONC
Excellent
NONE
MED

35,000lbs
50,000lbs
90,000lbs
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 32' 06"N 35° 31' 37"N
Longitude 97° 39' 08"W 97° 38' 32"W
Elevation 1,270' 1,297'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17L/35R

7199 ft. x 150 ft.
CONC
Good
GRVD
HIGH

35,000lbs
50,000lbs
90,000lbs
--
  Runway 17L Runway 35R
True Heading 180°360°
Traffic Pattern Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 35° 32' 40"N 35° 31' 28"N
Longitude 97° 38' 44"W 97° 38' 44"W
Elevation 1,290' 1,300'
Threshold Crossing Height 54 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 17R/35L

5002 ft. x 75 ft.
ASPH CONC
Good
NONE
MED

26,000lbs
45,000lbs
--
--
  Runway 17R Runway 35L
True Heading 180°0°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 32' 36"N 35° 31' 46"N
Longitude 97° 38' 57"W 97° 38' 57"W
Elevation 1,283' 1,275'
Threshold Crossing Height 43 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-10BIRDS ON & INVOF ARPT.
A110-11RWY 17L/35R NOISE ABATEMENT PROC IN EFCT; DEP ACFT 12500 LBS OR GTR CLIMB AT MAX RATE CONSISTENT WITH SAFETY TO 1500 FT AGL THEN REDUCE PWR & CLIMB RATE TO 3000 FT AGL OR 2 NM FM ARPT DEPENDING ON ATC & SAFETY CONDS.
A110-13EXP PONDING DURG WET COND ON RWY 17L/35R AT INT OF RWY 13/31.
A110-14SFC COND RPRTD MON-FRI 1300-0400Z.
A110-15FOR CD IFUN TO CTC GND CON, CTC OKE CITY APCH AT 405-681-5683.
A30-13/31CLSD 0400-1300Z; ACFT OVR 12500 LBS GWT NA.
A30-17L/35RUNLGTD 0400-1300Z.
A70-100LL100LL AVBL H24 SELF SVC WITH CREDIT CARD.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 17L & 35R; REIL RWY 17R & 35L; HIRL RWY 17L/35R; MIRL RWY 17R/35L, 13/31 - CTAF. PAPI RWY 17L & 35R, 17R & 35L ON CONSLY.
E1000400-1300Z.
E111PRE DATES THE ACT.
E147TPA RWY 17R/35L 600 FT AGL, ALL OTHER RWYS 1000 FT AGL.
WILEY POST (ICAO: KPWA, IATA: PWA) is a public airport located in OKLAHOMA CITY, OK, US.
