KPRC
PRESCOTT RGNL/ERNEST A LOVE FLD
PublicPUB

7 miles N of PRESCOTT, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 39' 17"N 112° 25' 09"W
5045' MSL
6045' MSL
13E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KPRC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 125.3

ATIS

ATIS
 127.2

ASOS

ASOS
928-541-3850
 127.2

Clearance Delivery

CD/P
 119.25

Ground

GND/P
 121.7

Tower

LCL/P
 125.3

FAA A/FD Pages

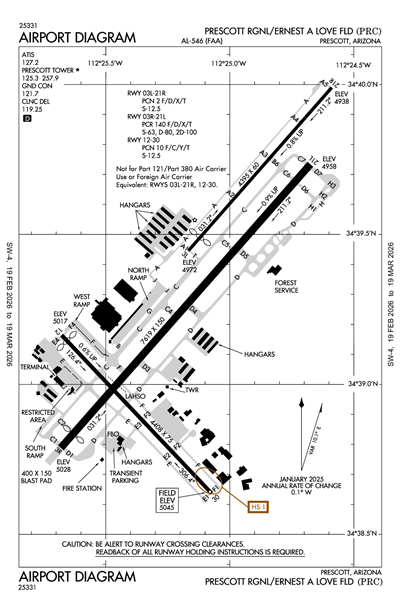

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KPRC
Domestic
1/17/250500Z !PRC 01/093 PRC NAV ILS RWY 21L U/S 2501170500-2501171230
1/17/250500Z !PRC 01/091 PRC SVC ATIS U/S 2501170500-2501171230
1/16/250500Z !PRC 01/092 PRC SVC ATIS U/S 2501160500-2501161230
1/16/250500Z !PRC 01/089 PRC NAV ILS RWY 21L U/S 2501160500-2501161230
1/14/251400Z !PRC 01/100 PRC TWY H BTN TWY D AND TWY D7 RUNUP PAD FOR RWY 21L CLSD 2501141400-2501181900
1/11/251748Z !PRC 01/080 PRC RWY 03R RWY END ID LGT U/S 2501111748-2501182359EST
12/30/241820Z !PRC 12/234 PRC NAV ILS RWY 21L DME NOT MNT 2412301820-2502262000EST
5/24/222023Z !PRC 05/156 PRC RWY 21R DECLARED DIST: TORA 4396FT TODA 4396FT ASDA 4396FT LDA 4396FT. 2205242023-PERM
5/24/222023Z !PRC 05/155 PRC RWY 03L THR DISPLACED 361FT. DECLARED DIST: TORA 4396FT TODA 4396FT ASDA 4396FT LDA 4035FT. 2205242023-PERM
FDC
1/6/251905Z !FDC 5/0751 PRC ODP PRESCOTT RGNL - ERNEST A LOVE FLD, PRESCOTT, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
TAKEOFF OBSTACLE NOTES: RWY 21R, TEMPORARY CRANE 1146FT FROM DER, 655FT RIGHT OF CENTERLINE, 100FT AGL/5089FT MSL (2023-AWP-264-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2501061905-2506011905EST
6/17/241543Z !FDC 4/9892 PRC IAP PRESCOTT RGNL - ERNEST A LOVE FLD, PRESCOTT, AZ.
VOR RWY 12, AMDT 3...
MISSED APPROACH: CLIMBING LEFT TURN TO 9000 DIRECT DRK VORTAC AND DRK R-305, THEN RIGHT TURN DIRECT DRK VORTAC AND HOLD.
2406171543-2606171543EST
5/29/242004Z !FDC 4/0584 PRC IAP PRESCOTT RGNL - ERNEST A LOVE FLD, PRESCOTT, AZ.
ILS OR LOC/DME RWY 21L, AMDT 4C...
DISREGARD NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 55).
2405292004-2605292004EST
8/24/231817Z !FDC 3/0885 PRC IAP PRESCOTT RGNL - ERNEST A LOVE FLD, PRESCOTT, AZ.
ILS OR LOC/DME RWY 21L, AMDT 4C...
FOR INOPERATIVE ALS, INCREASE LOC CAT C/D TO 1 1/8 SM.
CHANGE ALTERNATE MINIMUMS TO READ: ILS: STANDARD; LOC: STANDARD, CAT C 1100-3, CAT D 1700-3. NA WHEN CONTROL TOWER CLOSED.
2308241817-2508241816EST
8/24/231745Z !FDC 3/0853 PRC ODP PRESCOTT RGNL - ERNEST A LOVE FLD, PRESCOTT, AZ.
DIVERSE VECTOR AREA (RADAR VECTORS) ORIG-A ...
RWY 3L, HEADING AS ASSIGNED BY ATC; REQUIRES MINIMUM CLIMB OF 212 FT/NM TO 7000.
RWY 3R, HEADING AS ASSIGNED BY ATC; REQUIRES MINIMUM CLIMB OF 204 FT/NM TO 7000.
RWY 21L, HEADING AS ASSIGNED BY ATC; REQUIRES MINIMUM CLIMB OF 448 FT/NM TO 8300.
RWY 30, HEADING AS ASSIGNED BY ATC; REQUIRES MINIMUM CLIMB OF 212 FT/NM TO 6600.
ALL OTHER DATA REMAINS AS PUBLISHED.
. 2308241745-2505241726EST
Yes
0600-2200
CITY OF PRESCOTT
201 SOUTH CORTEZ STREET
PRESCOTT, AZ 86301
Phone: 928-777-1114
ROBIN SOBOTTA
6630 AIRPORT AVENUE
PRESCOTT, AZ 86301
Phone: 928-777-1114
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
AFT 2200; ACTVT MALSR RWY 21L; REIL RWY 03R; PAPI RWY 03R & 21L - CTAF. ACTVT REIL RWY 12 & 30; PAPI RWY 12/30; MIRL RWY 12/30 - 128.75.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03L/21R

4846 ft. x 60 ft.
ASPH
Good
NONE
MED
2 /F/D/X/T
12,000lbs
--
--
--
  Runway 03L Runway 21R
True Heading 41°221°
Traffic Pattern Right Right
Markings
Markings Condition
Latitude 34° 39' 23"N 34° 39' 59"N
Longitude 112° 25' 14"W 112° 24' 35"W
Elevation 4,975' 4,938'
Threshold Crossing Height 41 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 03R/21L

7619 ft. x 150 ft.
ASPH
Good
PFC
MED

63,000lbs
80,000lbs
100,000lbs
--
  Runway 03R Runway 21L
True Heading 41°221°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 34° 38' 47"N 34° 39' 44"N
Longitude 112° 25' 41"W 112° 24' 41"W
Elevation 5,028' 4,958'
Threshold Crossing Height 45 ft. AGL 55 ft. AGL
Visual Glide Path Angle 4.1° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 12/30

4408 ft. x 75 ft.
ASPH
Good
NONE
MED
10 /F/C/Y/T
12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 137°317°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 34° 39' 10"N 34° 38' 38"N
Longitude 112° 25' 41"W 112° 25' 04"W
Elevation 5,017' 5,045'
Threshold Crossing Height 52 ft. AGL 44 ft. AGL
Visual Glide Path Angle 4.24° 3.6°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-13WILDLIFE ON & INVOF ARPT.
A110-14VOLUNTARY NOISE ABATEMENT PROC IN EFCT - ARPT OPS 928-777-1150.
A110-17WINCH TOW UP TO 2500 FT 6 NM E AT A C GOODWIN MEML FLD.
A110-2EFF RWY GRADIENT RWY 12 0.6% UP; RWY 21L 1.0% UP; RWY 21R 0.8 UP.
A110-20FICON UNMNT 2200-0600.
A110-24FOR CD WHEN ATCT CLSD, CTC PHOENIX APCH AT 602-306-2565.
A110-25ILS UNMON WHEN ATCT CLSD.
A110-26ARFF INDEX B AVBL UPON REQ.
A110-7OVNGT PRKG FEE. LNDG FEE FOR TSNT COML ACR 12500 LB OR GTR BASED ON MAX CRTFYD LNDG WT.
PRESCOTT RGNL/ERNEST A LOVE FLD (ICAO: KPRC, IATA: PRC) is a public airport located in PRESCOTT, AZ.
