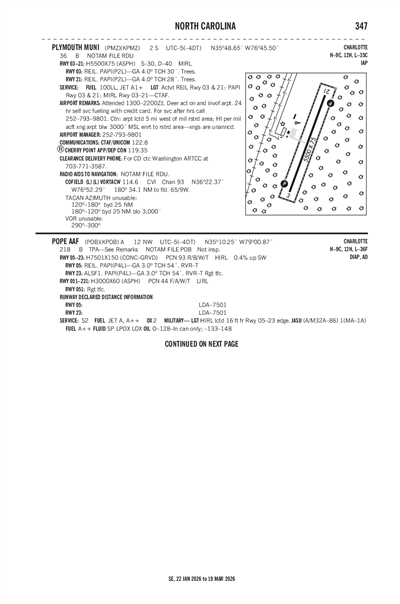

PLYMOUTH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPMZ
ICAO KPMZLocal PMZ
PLYMOUTH MUNI
PublicPUB

2 miles S of PLYMOUTH, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 48' 39"N 76° 45' 30"W
Elevation
36' MSL
Pattern Alt
1036' MSL
Mag Variation
10°W
Declination
10°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KEDE (16nm) MVFR
5:55 AM EST
Haze
Overcast 5,500'
Scattered 4,900'
5sm
32°F
32°F
30.32"Hg
220° 3kts
AO2
METAR KEDE 041055Z AUTO 22003KT 5SM HZ SCT049 OVC055 A3032 RMK AO2
+ Add Your Business

KPMZ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
UNICOM 122.8

Approach

CHERRY POINT APPROACH 119.35

Departure

CHERRY POINT DEPARTURE 119.35

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPGV (32nm)
Wed, 3/4 1:59 AM EST
Wed, 3/4 2:00 AM EST - Thu, 3/5 1:00 AM EST
LIFR
2:00 AM EST - 5:00 AM EST
Fog
Overcast 100'
0.5sm
Calm
LIFR
5:00 AM EST - 9:00 AM EST
Fog
Broken 300'
0.25sm
Calm
IFR
9:00 AM EST - 10:00 AM EST
Mist
Scattered 700'
2sm
VRB° 3kts
VFR
10:00 AM EST - 7:00 PM EST
Few 900'
6sm
230° 8kts
VFR
7:00 PM EST - 1:00 AM EST
Scattered 25,000'
6sm
VRB° 2kts
TAF KPGV 040659Z 0407/0506 00000KT 1/2SM FG OVC001
   FM041000 00000KT 1/4SM FG BKN003
   FM041400 VRB03KT 2SM BR SCT007
   FM041500 23008KT P6SM FEW009
   FM050000 VRB02KT P6SM SCT250 AMD LTD TO CLD VIS AND WIND
KPMZ
No NOTAM Available
No
0800-1700
FOR SVC AFTER HRS CALL 252-793-9801.
WASHINGTON COUNTY
PO BOX 1007 116 ADAMS STREET
PLYMOUTH, NC 27962
Phone: 252-793-5823
MARY MQSCATO
1069 AIRPORT RD.
PLYMOUTH, NC 27962
Phone: 252-793-9801
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 03/21

5500 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
40,000lbs
--
--
  Runway 03 Runway 21
True Heading 17°197°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 48' 13"N 35° 49' 05"N
Longitude 76° 45' 40"W 76° 45' 20"W
Elevation 36' 35'
Threshold Crossing Height 30 ft. AGL 28 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1CTN: ARPT LCTD 5 MI WEST OF MIL RSTRD AREA; HI PER MIL ACFT XNG ARPT BLW 3000 FT MSL ENRT TO RSTRD AREA - XNGS ARE UNANNCD.
A110-3DEER ACT ON & INVOF ARPT.
A110-4FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A17-H1FOR SVC AFTER HRS CALL 252-793-9801.
A70-100LL24 HR SS FUELING WITH CC.
A81-APTACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
PLYMOUTH MUNI (ICAO: KPMZ, IATA: PMZ) is a public airport located in PLYMOUTH, NC, US.
