iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPLN
PELLSTON RGNL/EMMET COUNTY
PublicPUB

1 miles NW of PELLSTON, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 34' 15"N 84° 47' 48"W
721' MSL
1721' MSL
06W
JET A, 100LL
LANSING (LAN)
LAKE HURON
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KPLN VFR
6:54 AM EST
Clear
10sm
23°F
19°F
30.40"Hg
Calm
AO2 SLP304 I1000 I6000 T10501072 11028 21050 53003
KPLN 091154Z AUTO 00000KT 10SM CLR M05/M07 A3040 RMK AO2 SLP304 I1000 I6000 T10501072 11028 21050 53003
Add Your Business

KPLN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
231-539-7700
 119.025

FAA A/FD Pages

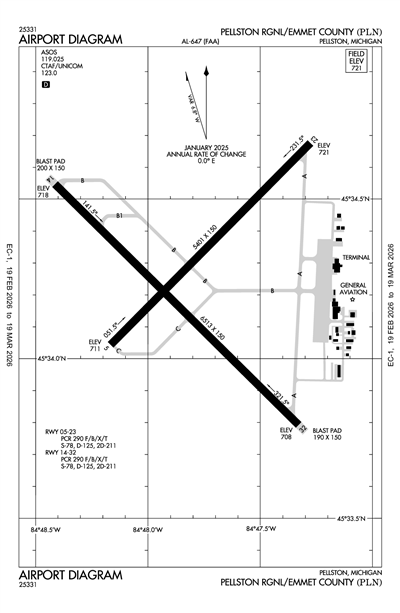

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPLN
Sat, 11/9 6:20 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 10:00 AM EST
Sky Clear
6sm
Calm
VFR
10:00 AM EST - 4:00 AM EST
Scattered 25,000'
6sm
160° 6kts
VFR
4:00 AM EST - 7:00 AM EST
Broken 12,000'
Scattered 6,000'
6sm
160° 4kts
KPLN 091120Z 0912/1012 00000KT P6SM SKC
   FM091500 16006KT P6SM SCT250
   FM100900 16004KT P6SM SCT060 BKN120
KPLN
Domestic
11/5/242020Z !PLN 11/017 PLN APRON MAIN RAMP FICON WET OBS AT 2411052020. 2411052020-2411062020
11/5/242019Z !PLN 11/016 PLN TWY ALL FICON WET OBS AT 2411052019. 2411052019-2411062019
11/5/242018Z !PLN 11/015 PLN RWY 23 FICON 5/5/5 100 PCT WET OBS AT 2411052018. COND NOT MNT 2411060300-2411061000. 2411052018-2411062018
11/5/242010Z !PLN 11/014 PLN RWY 32 FICON 5/5/5 100 PCT WET OBS AT 2411052010. COND NOT MNT 2411060300-2411061000. 2411052010-2411062010
10/19/240118Z !PLN 10/019 PLN TWY B EDGE LGT BTN APCH END RWY 14 AND RWY 05/23 U/S 2410190118-2411300222
9/6/241609Z !PLN 09/008 PLN RWY 23 RWY END ID LGT NOT STD 2409061609-2412021700
FDC
10/2/241441Z !FDC 4/3733 PLN IAP PELLSTON RGNL/EMMET COUNTY, PELLSTON, MI.
ILS OR LOC RWY 32, AMDT 12...
PROCEDURE NA.
2410021441-2610021441EST
No
0600-2300
EMMET COUNTY
1395 N US HIGHWAY 31
PELLSTON, MI 49769-9307
Phone: 231-539-8441
RYAN BACHELOR
1395 N US HIGHWAY 31
PELLSTON, MI 49769-9307
Phone: 231-539-8442
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
PLN
--
ACTVT MALSR RWY 32; REIL RWY 14, 05, & 23; PAPI RWY 14; HIRL RWY 14/32; MIRL RWY 05/23 - CTAF. VASI RWY 05 & 23 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service

Runway 05/23

5401 ft. x 150 ft.
ASPH
Good
GRVD
MED
25 /F/B/X/U
76,000lbs
115,000lbs
215,000lbs
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 34' 03"N 45° 34' 41"N
Longitude 84° 48' 10"W 84° 47' 17"W
Elevation 711' 720'
Threshold Crossing Height 48 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4R V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

6513 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
25 /F/B/X/U
76,000lbs
115,000lbs
215,000lbs
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 45° 34' 33"N 45° 33' 48"N
Longitude 84° 48' 25"W 84° 47' 20"W
Elevation 718' 708'
Threshold Crossing Height 49 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1DEER & GULLS OCNLY ON & INVOF ARPT.
A110-2BE ALERT FOR SNOW REMOVAL EQUIP & ACTIVITY ON & INVOF RYS DURG WINTER MONTHS.
A110-4TWY B1 & E1 CLSD 1 NOV THRU 15 APR..
A110-5SFC CONDS UNMON 2300-0530 DLY.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
PELLSTON RGNL/EMMET COUNTY (ICAO: KPLN, IATA: PLN) is a public airport located in PELLSTON, MI.
