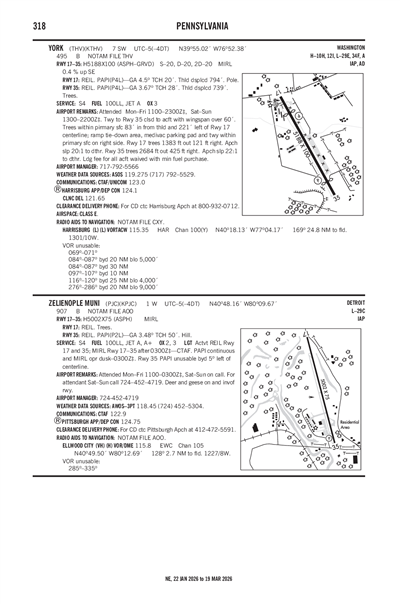

ZELIENOPLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPJC
ICAO KPJCLocal PJC
ZELIENOPLE MUNI
PublicPUB

1 miles W of ZELIENOPLE, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 48' 10"N 80° 09' 40"W
Elevation
907' MSL
Pattern Alt
1907' MSL
Mag Variation
9°W
Declination
9°W
Fuel
JET A, JET A (FSII), 100LL
FSS
ALTOONA (AOO)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KBTP (9nm) LIFR
1:56 AM EST
Overcast 400'
7sm
45°F
32°F
30.18"Hg
360° 5kts
AO2 RAE40 SLP231 P0000 T0072 $
METAR KBTP 040656Z AUTO 36005KT 7SM OVC004 07/ A3018 RMK AO2 RAE40 SLP231 P0000 T0072 $
+ Add Your Business

KPJC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.45
(724) 452-5304

Common

CTAF 122.9
ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 AFT 2200 - CTAF. PAPI CONS & MIRL OPER DUSK-2200.

Approach

PITTSBURGH APPROACH 124.75

Departure

PITTSBURGH DEPARTURE 124.75

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBVI (10nm)
Wed, 3/4 12:39 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
LIFR
1:00 AM EST - 4:00 AM EST
Light Drizzle and Fog
Overcast 200'
2sm
Calm
LIFR
4:00 AM EST - 9:00 AM EST
Light Drizzle and Fog
Overcast 300'
0.5sm
Calm
LIFR
9:00 AM EST - 11:00 AM EST
Light Drizzle and Mist
Overcast 400'
1.5sm
Calm
IFR
11:00 AM EST - 5:00 PM EST
Light Drizzle and Mist
Overcast 500'
4sm
VRB° 3kts
LIFR
5:00 PM EST - 1:00 AM EST
Light Drizzle and Mist
Overcast 300'
1.5sm
Calm
TAF KBVI 040539Z 0406/0506 00000KT 2SM -DZ FG OVC002
   FM040900 00000KT 1/2SM -DZ FG OVC003
   FM041400 00000KT 1 1/2SM -DZ BR OVC004
   FM041600 VRB03KT 4SM -DZ BR OVC005
   FM042200 00000KT 1 1/2SM -DZ BR OVC003
KPJC
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
2312Z
3/18/26
2212Z
!AOO 03/037 PJC OBST TOWER LGT (ASR 1027382) 404145.00N0801508.00W (7.7NM SSW PJC) 1561.0FT (419.9FT AGL) U/S 2603032312-2603182212
3/3/26
1045Z
6/1/26
0500Z
!AOO 03/018 PJC OBST TOWER LGT (ASR 1222713) 404317.60N0800945.00W (4.9NM S PJC) 1404.9FT (243.8FT AGL) U/S 2603031045-2606010500
2/21/26
0255Z
5/21/26
0500Z
!AOO 02/196 PJC OBST TOWER LGT (ASR 1026172) 405224.10N0801746.80W (7.4NM NW PJC) 1507.9FT (315.9FT AGL) U/S 2602210255-2605210500
2/19/26
1402Z
!AOO 02/167 PJC SVC AUTOMATED WX BCST SYSTEM UNREL 2602191402-2603212359EST
2/3/26
1659Z
5/5/26
0500Z
!AOO 02/034 PJC OBST TOWER LGT (ASR 1059961) 404428.40N0801036.30W (3.8NM S PJC) 1421.9FT (255.9FT AGL) U/S 2602031659-2605050500
12/11/25
1258Z
3/12/26
0500Z
!AOO 12/109 PJC OBST TOWER LGT (ASR 1035734) 404536.10N0801400.80W (4.2NM SW PJC) 1450.1FT (267.1FT AGL) U/S 2512111258-2603120500
No
MON-FRI 0600-2200
SAT-SUN ON CALL
FOR ATTENDANT SAT-SUN CALL 724-452-4719.
ARPT AUTH BORO ZELIENOPLE
100 TASA DRIVE
ZELIENOPLE, PA 16063
Phone: 724-452-1290
DAVE HOLMAN
220 TASA DRIVE
ZELIENOPLE, PA 16063
Phone: 724-452-4719
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AOO
--
ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 AFT 2200 - CTAF. PAPI CONS & MIRL OPER DUSK-2200.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
Low Pressure
Charter Service
Pilot Instruction

Runway 17/35

5002 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 165°345°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR GOOD
Latitude 40° 48' 34"N 40° 47' 46"N
Longitude 80° 09' 48"W 80° 09' 32"W
Elevation 907' 899'
Threshold Crossing Height -- 50 ft. AGL
Visual Glide Path Angle -- 3.48°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER & GEESE ON & INVOF RWY.
A110-5FOR CD CTC PITTSBURGH APCH AT 412-472-5591.
A17-M1FOR ATTENDANT SAT-SUN CALL 724-452-4719.
A43-35PAPI UNUSBL BYD 5 DEG L OF CNTRLN.
A57-17108 FT TREES; 2138 FT FM THLD, 103 FT LEFT, 17:1 TO THLD.
A75-HTIE DOWN ROPES NOT AVBL.
A81-APTACTVT REIL RWY 17 & 35; MIRL RWY 17/35 AFT 2200 - CTAF. PAPI CONS & MIRL OPER DUSK-2200.
E111VFR USE ONLY.
ZELIENOPLE MUNI (ICAO: KPJC, IATA: PJC) is a public airport located in ZELIENOPLE, PA, US.
