KPIT
PITTSBURGH INTL
PublicPUB

12 miles NW of PITTSBURGH, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 29' 29"N 80° 13' 58"W
1203' MSL
2203' MSL
09W
JET A, 100LL
ALTOONA (AOO)
DETROIT
CLEVELAND (ZOB)
10/31/24-11/28/24
KPIT VFR
6:51 AM EST
Few 25,000'
10sm
39°F
31°F
30.34"Hg
050° 4kts
AO2 SLP288 T00391006 10083 20039 51017
KPIT 091151Z 05004KT 10SM FEW250 04/M01 A3034 RMK AO2 SLP288 T00391006 10083 20039 51017
Add Your Business

KPIT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
ARR
 127.25
D-ATIS
DEP
 135.9

Approach

APCH/P
271-360
 121.25
APCH/P
001-090
 124.15
APCH/P
181-270
 133.7
APCH/P IC
091-180
 123.95

Departure

DEP/P
SOUTH
 119.35
DEP/P
NORTH
 124.75
DEP/S
 125.275

Clearance Delivery

CD PRE TAXI CLNC
 126.75

Emergency

EMERG
 121.5

Ground

GND/P
SOUTH
 121.9
GND/P
NORTH
 127.8

Tower

LCL/P
 128.3

Other

CLASS B
271-360
 121.25
CLASS B
091-180
 123.95
CLASS B
001-090
 124.15
CLASS B
181-270
 133.7
OPS
FM
 36.35

Terminal Area Forecast

KPIT
Sat, 11/9 6:29 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 1:00 PM EST
VFR
7:00 AM EST - 3:00 PM EST
Few 25,000'
6sm
060° 6kts
VFR
3:00 PM EST - 4:00 AM EST
Scattered 25,000'
6sm
100° 5kts
VFR
4:00 AM EST - 12:00 PM EST
Showers in vicinity
Broken 6,000'
6sm
130° 4kts
MVFR
12:00 PM EST - 1:00 PM EST
Light Showers and Rain
Broken 2,000'
5sm
170° 8kts
KPIT 091129Z 0912/1018 06006KT P6SM FEW250
   FM092000 10005KT P6SM SCT250
   FM100900 13004KT P6SM VCSH BKN060
   FM101700 17008KT 5SM -SHRA BKN020
KPIT
Domestic
11/5/241300Z !PIT 11/014 PIT RWY 32 RVRT U/S 2411051300-2411082000
11/4/242022Z !PIT 11/029 PIT NAV ILS RWY 28R CAT II NA 2411042022-2411082000
11/4/242022Z !PIT 11/028 PIT NAV ILS RWY 10R CAT II NA 2411042022-2411082000
11/4/242022Z !PIT 11/027 PIT NAV ILS RWY 10L CAT II NA 2411042022-2411082000
11/4/242021Z !PIT 11/026 PIT AD AP RVR ALL U/S 2411042021-2411082000
11/1/241442Z !PIT 11/013 PIT SVC MBST/WS DETECTION SYSTEM NOT AVBL 2411011442-2412022000EST
11/1/240917Z !PIT 11/009 PIT APRON MAIN TERMINAL RAMP EAST OUTER TXL BTN GATE B37 AND TWY V4 CLSD. 2411010917-2412312359
11/1/240410Z !PIT 11/005 PIT OBST TOWER LGT (ASR 1026004) 402436.00N0800550.00W (7.8NM SE PIT) 1461.9FT (314.0FT AGL) U/S 2411010410-2501300400
10/31/240904Z !PIT 10/284 PIT APRON DEICING PAD N EDGE MARKINGS NOT STD 2410310904-2412052359
10/29/240835Z !PIT 10/272 PIT TWY P1 SFC PAINTED HLDG PSN SIGNS FOR RWY 10R/28L NOT STD 2410290835-2412032359
10/26/241000Z !PIT 10/235 PIT AD AP CLSD TO AIR CARRIER INTL DIVERSIONS EXC 2HR PPR 412-472-5630 SAT SUN 1000-1000 2410261000-2501051000
10/16/241126Z !PIT 10/165 PIT RWY 28L RAI LGT U/S 2410161126-2411132000EST
10/11/241509Z !PIT 10/110 PIT TWY P SFC PAINTED HLDG PSN SIGNS AT RWY 10R/28L SOUTH SIDE NOT STD 2410111509-2411222359
10/2/242013Z !PIT 10/048 PIT RWY 28L RVRT U/S 2410022013-2411181200
10/2/242012Z !PIT 10/047 PIT RWY 10C RVRR U/S 2410022012-2411181200
10/2/242011Z !PIT 10/045 PIT RWY 10R RVRR U/S 2410022011-2411181200
10/2/242010Z !PIT 10/046 PIT RWY 14/32 RVRM U/S 2410022010-2411181200
10/2/242008Z !PIT 10/044 PIT RWY 28C RVRT U/S 2410022008-2411181200
10/1/241957Z !PIT 10/028 PIT NAV ILS RWY 28L U/S 2410011957-2411181200
10/1/241956Z !PIT 10/027 PIT NAV ILS RWY 10R U/S 2410011956-2411181200
10/1/241936Z !PIT 10/026 PIT RWY 28L RVRR U/S 2410011936-2411181200
10/1/241935Z !PIT 10/025 PIT RWY 10R RVRT U/S 2410011935-2411181200
10/1/241932Z !PIT 10/024 PIT RWY 28L RVRM U/S 2410011932-2411181200EST
10/1/241929Z !PIT 10/023 PIT RWY 10C RVRM U/S 2410011929-2411181200
10/1/241926Z !PIT 10/022 PIT RWY 10R RVRM U/S 2410011926-2411181200
10/1/241926Z !PIT 10/021 PIT RWY 28C RVRM U/S 2410011926-2411181200
10/1/241336Z !PIT 10/019 PIT TWY ALL ELEVATED RWY GUARD LGT FOR RWY10R/28L U/S 2410011336-2411222359
10/1/241121Z !PIT 10/017 PIT TWY F BTN TWY P AND APCH END RWY 28L CLSD 2410011121-2411222359
10/1/241120Z !PIT 10/016 PIT TWY F BTN APCH END RWY 10R AND TWY P CLSD 2410011120-2411222359
10/1/241120Z !PIT 10/015 PIT TWY V BTN RWY 10C/28C AND TWY F, TWY T BTN RWY 10C/28C AND TWY F, TWY S BTN RWY 10C/28C AND TWY F, TWY R BTN RWY 10C/28C AND TWY F, TWY Q BTN RWY 10C/28C AND TWY F, TWY N BTN RWY 10C/28C AND TWY F CLSD 2410011120-2411222359EST
10/1/241120Z !PIT 10/014 PIT TWY F1, F2, F3, F4, F5 CLSD 2410011120-2411222359
10/1/241119Z !PIT 10/013 PIT TWY W BTN APCH END RWY 10C AND RWY 10R/28L CLSD 2410011119-2411222359
10/1/241117Z !PIT 10/012 PIT RWY 10R/28L CLSD 2410011117-2411222359
9/16/241549Z !PIT 09/167 PIT TWY V4 BTN MAIN TERMINAL RAMP AND TWY V CLSD 2409161549-2411302359
9/3/240025Z !PIT 09/032 PIT OBST TOWER LGT (ASR 1038499) 401937.60N0801244.40W (10.0NM S PIT) 1509.8FT (257.9FT AGL) U/S 2409030025-2412010400
8/26/241534Z !PIT 08/279 PIT APRON CARGO 4 APN CLSD 2408261534-2412312359EST
8/22/240245Z !PIT 08/251 PIT TWY A BTN TWY A2 AND TWY A3 CLSD 2408220245-2412192359
8/22/240238Z !PIT 08/247 PIT TWY A3 CLSD 2408220238-2412192359
7/26/241524Z !PIT 07/233 PIT TWY E BTN TWY N AND APCH END RWY 28C WIP CONST ADJ NORTH SIDE TAX SPEED RESTRICTED 10MPH 2402221954 2407261524-2412312359EST
FDC
11/1/241530Z !FDC 4/7916 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 10L, AMDT 26...
ILS OR LOC RWY 10R, AMDT 10G...
ILS OR LOC RWY 28L, AMDT 11...
RNAV (GPS) RWY 10L, AMDT 4...
RNAV (GPS) Y RWY 28C, AMDT 5...
RNAV (GPS) Y RWY 28L, AMDT 5A...
RNAV (GPS) Y RWY 32, AMDT 6A...
CIRCLING CATS A/B MDA 1760/HAA 557.
TEMPORARY CRANE 1458 MSL 5098FT NW OF PIT AIRPORT (2022-AEA-648-NRA).
2411011530-2502151530EST
11/1/241530Z !FDC 4/7915 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 32, AMDT 14...
ZANTA FIX MINIMUMS (DME REQUIRED): CIRCLING CATS A/B MDA 1820/HAA 617.
TEMPORARY CRANE 1458 MSL 5098FT NW OF PIT AIRPORT (2022-AEA-648-NRA).
2411011530-2502151530EST
11/1/241323Z !FDC 4/7852 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
RNAV (GPS) Y RWY 10C, AMDT 4B...
LPV DA 1534/HAT 393 ALL CATS. VIS ALL CATS RVR 6000.
LNAV MDA 1720/HAT 579 ALL CATS. VIS CAT C 1 5/8.
VDP 1.65NM TO RW10C.
CIRCLING MDA CATS A/B 1760/HAA 557.
TEMPORARY CRANE 1458 MSL 2708FT NW OF RW10C (2022-AEA-648-NRA).
2411011323-2502151323EST
11/1/241323Z !FDC 4/7851 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
RNAV (RNP) Z RWY 10C, ORIG-D...
RNP 0.11 DA NA ALL CATS.
RNP 0.20 DA 1577/HAT 436 ALL CATS.
TEMPORARY CRANE 1458 MSL 2708FT NW OF RWY 10C (2022-AEA-648-NRA).
2411011323-2502151323EST
11/1/241312Z !FDC 4/7842 PIT ODP PITTSBURGH INTL, PITTSBURGH, PA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
ADD TAKEOFF OBSTACLE NOTE: RWY 28R, TEMPORARY CRANE 518FT FROM DER, 553FT LEFT OF CENTERLINE, 30FT AGL/ 1219FT MSL (2019-AEA-1569-NRA). TEMPORARY CRANE 1067FT FROM DER, 652FT LEFT OF CENTERLINE, 30FT AGL/ 1235FT MSL (2019-AEA-1568-NRA). TEMPORARY CRANE 1653FT FROM DER, 711FT LEFT OF CENTERLINE, 30FT AGL/ 1245FT MSL (2019-AEA-1567-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2411011312-2503181312EST
10/31/241531Z !FDC 4/7081 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 28R, AMDT 10A...
S-ILS 28R DA 1463/HAT 289 ALL CATS. VISIBILITY ALL CATS RVR 2200. S-LOC 28R MDA 1660/HAT 486 ALL CATS. VISIBILITY CATS C/D/E RVR 5000. CIRCLING CATS A/B MDA 1820/HAA 617. FOR INOPERATIVE ALS, INCREASE S-ILS 28R CAT E VISIBILITY TO RVR 4500 AND S-LOC 28R CAT C/D/E VISIBILITY TO 1 3/8 SM. TEMPORARY CRANE 1458 MSL 4776FT SW OF RWY 28R (2022-AEA-648-NRA).
2410311531-2502131531EST
10/31/241531Z !FDC 4/7080 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
RNAV (GPS) RWY 14, AMDT 3C...
LNAV/VNAV DA 1741/HAT 593 ALL CATS.
CIRCLING CATS A/B MDA 1820/HAA 617.
TEMPORARY CRANE 1458 MSL 4776FT SW OF RWY 28R (2022-AEA-648-NRA).
2410311531-2502131531EST
10/31/241531Z !FDC 4/7079 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
RNAV (GPS) Y RWY 28R, AMDT 6...
LPV DA 1415/HAT 241 ALL CATS.
CIRCLING CATS A/B MDA 1820/HAA 617.
TEMPORARY CRANE 1458 MSL 4776FT SW OF RWY 28R (2022-AEA-648-NRA).
2410311531-2502131531EST
8/15/241318Z !FDC 4/9589 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 28L, AMDT 11...
ILS OR LOC RWY 28R, AMDT 10A...
ILS RWY 28R (SA CAT I-II), AMDT 10A....
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2408151318-2503271318EST
8/15/241318Z !FDC 4/9586 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 10L, AMDT 26...
ILS RWY 10L (CAT II-III), AMDT 26....
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2408151318-2503271318EST
8/15/241318Z !FDC 4/9585 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 32, AMDT 14...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2408151318-2503271318EST
8/15/241318Z !FDC 4/9584 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 10R, AMDT 10G...
ILS RWY 10R (SA CAT I), AMDT 10G...
ILS RWY 10R (CAT II AND III), AMDT 10G...
MISSED APPROACH: CLIMB TO 1900 THEN CLIMBING RIGHT TURN TO 5000 DIRECT HLG VOR/DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2408151318-2503271318EST
7/8/241518Z !FDC 4/8048 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS OR LOC RWY 10R (SA CAT I), AMDT 10G...
PROCEDURE NA.
2407081518-2505071518EST
5/8/241630Z !FDC 4/0809 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
RNAV (GPS) Y RWY 10R, AMDT 3C...
LNAV MDA 1700/HAT 565 ALL CATS. VISIBILITY CATS C/D 1 1/4.
VDP 1.54 NM TO RW10R.
CIRCLING CATS A/B MDA 1820/HAA 617.
TEMPORARY CRANE 1458FT MSL 5098FT NORTHWEST OF PIT AIRPORT (2022-AEA-648-NRA).
2405081630-2502131630EST
5/8/241623Z !FDC 4/0797 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
ILS RWY 28R (SA CAT I AND II), AMDT 10A ...
PROCEDURE NA.
TEMPORARY CRANE 1458FT MSL 4776FT SOUTHWEST OF RWY 28R (2022-AEA-648-NRA) 2405081623-2502131623EST
11/21/221610Z !FDC 2/5646 PIT IAP PITTSBURGH INTL, PITTSBURGH, PA.
RNAV (GPS) RWY 14, AMDT 3C...
LPV DA 1655/HAT 507. LNAV VIS CATS C/D 1 3/8.
2211211610-2411211610EST
Military
10/21/241546Z !KPIT M0008/24 PIT APRON US AIR FORCE RESERVE RAMP SOUTH ACCESS CLSD AND SPOTS 1 -3 CLSD DUE TO CONSTRUCTION. 2410211546-2501312359
Yes
ALL
ALLEGHENY CO ARPT AUTHORITY
PO BOX 12370, SUITE. 4000
PITTSBURGH, PA 15231-0370
Phone: 412-472-3500
CHRISTINA A. CASSOTIS
PO BOX 12370, SUITE 4000
PITTSBURGH, PA 15231-0370
Phone: (412) 472-3509
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
PIT
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Air Freight
Cargo Handling

Runway 10C/28C

10775 ft. x 150 ft.
ASPH CONC
Fair
GRVD
HIGH

100,000lbs
149,000lbs
260,000lbs
--
  Runway 10C Runway 28C
True Heading 92°272°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 29' 24"N 40° 29' 20"N
Longitude 80° 14' 53"W 80° 12' 33"W
Elevation 1,140' 1,137'
Threshold Crossing Height 50 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 10L/28R

10502 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

100,000lbs
225,000lbs
400,000lbs
--
  Runway 10L Runway 28R
True Heading 92°272°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 30' 08"N 40° 30' 05"N
Longitude 80° 16' 16"W 80° 14' 00"W
Elevation 1,203' 1,174'
Threshold Crossing Height 83 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 10R/28L

11500 ft. x 200 ft.
CONC
Good
GRVD
HIGH

100,000lbs
225,000lbs
350,000lbs
--
  Runway 10R Runway 28L
True Heading 92°272°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 29' 12"N 40° 29' 08"N
Longitude 80° 15' 07"W 80° 12' 38"W
Elevation 1,135' 1,122'
Threshold Crossing Height 71 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 14/32

8101 ft. x 150 ft.
CONC
Good
GRVD
HIGH

100,000lbs
225,000lbs
410,000lbs
--
  Runway 14 Runway 32
True Heading 136°316°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 29' 46"N 40° 28' 48"N
Longitude 80° 13' 30"W 80° 12' 17"W
Elevation 1,148' 1,113'
Threshold Crossing Height 67 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-10ATCT IS AUTHORIZED TO HAVE ACFT LINE-UP & WAIT ON RYS 28L AT TWY 'P' DURG HRS OF DARKNESS. THE SPECIFIC RY SHALL BE USED ONLY FOR DEPARTURES & THE INTXN MUST BE VSB FM ATCT.
A110-17SERVICE-JASU: (ANG) (A/M32A-86) (AM 32-95; (AFRC - 2(A/M32-86 (AM32-95).
A110-18SERVICE-FLUID: LPOX LHNIT.
A110-19SERVICE-OIL: O-156.
A110-20SERVICE-TRAN ALERT: NO PRIORITY BASIS.
A110-24ANG: OPR 1130-2030Z++MON-FRI EXCP HOL. (CLSD EV OTH MON.)
A110-27TWY G INTXN AT RY 10L/28R RIGHT TURN NA.
A110-28FUEL: A++ PROVIDED BY ANG AND AFRC.(MIL).
A110-3ACFT USING TWY 'N' PROHIBITED TO STOP ON OVERPASS AREA DUE TO POSSIBLE EMERGENCY EVACUATION HAZARD.
A110-30PPR/OFFL BUS MIN 48 HR CTC AFLD MGMT DSN 277 8163, C412 474 8163. LTD TRAN SVC. AFLD MGT NML DUTY HRS 1300 0100++ MON, WED, FRI, 1300-0500++ TUE, THU, EXC HOL. UNIT TRAINING ASSEMBLY 1300 2100Z++SAT. TRAN ACFT MUST HAVE APPVL OF 911OG/CC FOR PPR DUR OFF DUTY HR. NO SVC AVBL FOR SPACE AVBL PAX DUR OFF DUTY HR. CALL PITT COMD POST (IRON CITY) BY RDO 15 MIN PRIOR TO ARRIVAL. ALFD MGMT DOES NOT ISSUE OR STOR COMSEC. COMSEC STOR CTC COMD POST DSN 277 8146.
A110-31TWY AA NO TURN-OFF ONTO TWY A FOR ACFT WINGSPAN 171 FT OR GREATER EXC PPR (412) 472-5630.
A110-33[MILITARY]: CAUTION: BASH PHASE II OPS IN EFFECT 1 JUL - 31 AUG ANNUALLY. UNLESS MSN REQUIREMENTS DIRECT OTHERWISE, FLIGHTS SHOULD NOT BE SKED WITHIN +/-1HR OF SS/SR. TRAN AIRCREW SHOULD REQ BIRD WATCH COND FR AFRC (PITT OPS) ON 252.1 OR ANG OPS (STEEL CTL) ON 311.0. AIRCREW WILL BE INFORMED BY STEEL CONTROL OR PITT OPS (AS APPLICABLE) IF CURRENT BWC IS OTHER THAN LOW REGARDLESS OF BASH PHASE.
A110-34TRML APN UNCONTROLLED. PUSHBACK PILOT DESCRETION. DO NOT EXIT TRML APN AT TWY C1, C4, V3, V4, D1, W. CTC GC WHEN HLDG AT TWY C2, C3, V1, V2, V5, V6, D2, D3.
A110-35LDG FEE.
A110-36PUSHBACK CLNC REQUIRED FR GATES A100 AND A101 AT CARGO A. CTC GC. PUSHBACK FM THESE GATES ENTERS TWY N.
A110-4ANG ACFT MUST CTC TANKER 303.0/FTR OPNS 293.7 BEFORE CROSSING RWY 28L TO OBTAIN CLNC TO ENTER.
A110-5TERML TAXILANES E OF CONCOURSES A & B RESTRD TO GROUP 3 ACFT & SMALLER.

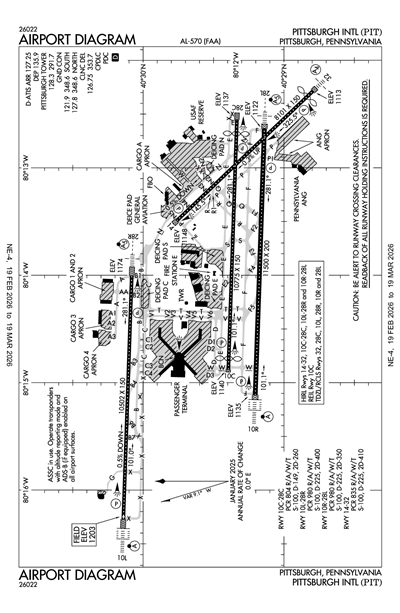

PITTSBURGH INTL (ICAO: KPIT, IATA: PIT) is a public airport located in PITTSBURGH, PA.
