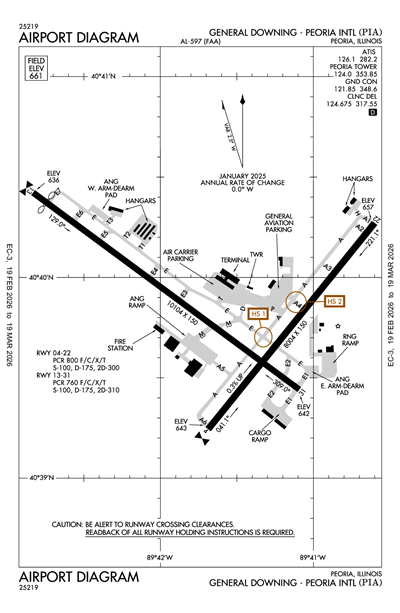

GENERAL DOWNING - PEORIA INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPIA
ICAO KPIAIATA PIALocal PIA
GENERAL DOWNING - PEORIA INTL
PublicPUB

4 miles W of PEORIA, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 39' 51"N 89° 41' 36"W
Elevation
661' MSL
Pattern Alt
1661' MSL
Mag Variation
2°W
Declination
2°W
Fuel
JET A, JET A+, CILI, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KPIA MVFR
3:54 AM CST
Mist
Overcast 4,300'
Broken 3,000'
6sm
38°F
35°F
30.15"Hg
070° 9kts
AO2 SLP214 T00330017
METAR KPIA 040954Z 07009KT 6SM BR BKN030 OVC043 03/02 A3015 RMK AO2 SLP214 T00330017
+ Add Your Business

KPIA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.1
ASOS (309) 322-3740

Common

UNICOM 122.95

Clearance

Clearance Delivery 124.675

Ground

PEORIA GROUND 121.85

Tower

PEORIA TOWER 124.0

Approach

SAINT LOUIS APPROACH 125.8

Departure

SAINT LOUIS DEPARTURE 125.8

Flight Service

Flight Service 122.5
(IKK)

Emergency

Emergency 121.5

Military

ANG OPS 141.35
ARNG OPS 38.925
ARNG OPS 141.15

Other

CLASS C 125.8

Terminal Area Forecast

KPIA
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 3:00 AM CST
Overcast 3,500'
Scattered 1,500'
6sm
080° 6kts
MVFR
3:00 AM CST - 8:00 AM CST
Overcast 1,500'
6sm
070° 7kts
IFR
8:00 AM CST - 6:00 PM CST
Mist
Overcast 900'
6sm
080° 7kts
IFR
2:00 PM CST - 6:00 PM CST
Light Thunderstorm and Rain and Mist
Overcast 500'
2sm
Calm
IFR
6:00 PM CST - 12:00 AM CST
Mist and Showers in vicinity
Overcast 500'
3sm
080° 3kts
TAF KPIA 040520Z 0406/0506 08006KT P6SM SCT015 OVC035
   FM040900 07007KT P6SM OVC015
   FM041400 08007KT 6SM BR OVC009
   PROB30 0420/0424 2SM -TSRA BR OVC005CB
   FM050000 08003KT 3SM BR VCSH OVC005
KPIA
EffectiveExpiresCategoryNOTAM
Domestic
3/6/26
0600Z
3/6/26
1200Z
!PIA 03/002 PIA COM REMOTE TRANS/REC 121.5, 243.0, 125.8, 269.2 U/S 2603060600-2603061200
3/5/26
0600Z
3/5/26
1200Z
!PIA 03/001 PIA COM REMOTE TRANS/REC 121.5, 243.0, 125.8, 269.2 U/S 2603050600-2603051200
3/4/26
0600Z
3/4/26
1200Z
!PIA 02/070 PIA COM REMOTE TRANS/REC 121.5, 243.0, 125.8, 269.2 U/S 2603040600-2603041200
3/4/26
0307Z
3/5/26
0307Z
Runway!PIA 03/008 PIA RWY 04 FICON 5/5/5 100 PCT WET OBS AT 2603040210. 2603040307-2603050307
3/4/26
0307Z
3/5/26
0307Z
Runway!PIA 03/007 PIA RWY 13 FICON 5/5/5 100 PCT WET OBS AT 2603040210. 2603040307-2603050307
3/3/26
1359Z
3/4/26
1359Z
!PIA 03/006 PIA TWY ALL FICON WET OBS AT 2603031359. 2603031359-2603041359
3/3/26
1358Z
3/4/26
1358Z
!PIA 03/005 PIA APRON ALL FICON WET OBS AT 2603031358. 2603031358-2603041358
2/27/26
2115Z
8/31/26
2030Z
!PIA 02/073 PIA TWY E6 EDGE MARKINGS EAST SIDE FADED 2602272115-2608312030
2/23/26
1018Z
4/9/26
1017Z
!PIA 02/053 PIA OBST TOWER LGT (ASR 1231835) 403558.00N0893244.90W (7.7NM ESE PIA) 1014.8FT (264.8FT AGL) U/S 2602231018-2604091017
2/4/26
2240Z
4/4/26
2359Z
!PIA 02/022 PIA OBST TOWER LGT (ASR 1232125) 403615.10N0893131.30W (8.4NM ESE PIA) 1020.3FT (249.3FT AGL) U/S 2602042240-2604042359
1/29/26
2347Z
!PIA 01/149 PIA NAV ILS RWY 13 GP U/S 2601292347-2603272000EST
10/29/25
0003Z
3/31/26
2359Z
!PIA 10/079 PIA OBST TOWER LGT (ASR 1278749) 403543.00N0893541.00W (6.1NM SE PIA) 886.8FT (256.9FT AGL) U/S 2510290003-2603312359
6/30/25
0538Z
!PIA 06/099 PIA NAV ILS RWY 13 OM U/S 2506300538-2606252111EST
4/25/25
1353Z
4/30/26
2230Z
!PIA 04/109 PIA OBST CRANE (ASN 2024-AGL-776-NRA) 403958N0894120W (0.2NM ENE PIA) 720FT (70FT AGL) FLAGGED 2504251353-2604302230
4/25/25
1353Z
4/30/26
2230Z
!PIA 04/108 PIA OBST CRANE (ASN 2024-AGL-780-NRA) 403958N0894117W (0.3NM ENE PIA) 720FT (70FT AGL) FLAGGED 2504251353-2604302230
4/25/25
1206Z
5/1/26
2230Z
!PIA 04/103 PIA APRON TERMINAL RAMP WIP CONST ADJ E SIDE LGTD AND BARRICADED 2504251206-2605012230
4/25/25
1206Z
5/1/26
2230Z
!PIA 04/102 PIA APRON GA RAMP WIP CONST ADJ W SIDE LGTD AND BARRICADED 2504251206-2605012230
FDC
12/3/25
1448Z
!FDC 5/3656 PIA IAP GENERAL DOWNING - PEORIA INTL, PEORIA, IL.
ILS OR LOC RWY 13, AMDT 7...
ILS OR LOC RWY 31, AMDT 8A...
ILS OR LOC RWY 4, AMDT 4...
VOR OR TACAN RWY 13, AMDT 24...
ILS RWY 4 (SA CAT I-II), AMDT 4...
MSA FROM PIA VORTAC 25NM 180 CW 360 MINIMUM ALTITUDE 2400.
2512031448-2712031447EST
8/27/25
2133Z
!FDC 5/4894 PIA IAP U.S. DOD GENERAL DOWNING - PEORIA INTL, PEORIA, IL.
HI - VOR Y OR TACAN Y RWY 31, AMDT 2...
MSA FROM PIA VORTAC 25NM 180 CW 360 MINIMUM ALTITUDE 2400.
2508272133-2708272133EST
Yes
ALL
METROPOLITAN ARPT AUTH OF PEORIA
6100 WEST E.M. DIRKSEN PKWY
PEORIA, IL 61607
Phone: 309-697-8272
GENE OLSON
6100 WEST E.M. DIRKSEN PKWY
PEORIA, IL 61607
Phone: 309-697-8272
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
PIA
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

8004 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

100,000lbs
175,000lbs
300,000lbs
--
  Runway 04 Runway 22
True Heading 39°219°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 40° 39' 15"N 40° 40' 16"N
Longitude 89° 41' 41"W 89° 40' 36"W
Elevation 642' 657'
Threshold Crossing Height 54 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

10104 ft. x 150 ft.
CONC
Good
GRVD
HIGH

100,000lbs
175,000lbs
310,000lbs
--
  Runway 13 Runway 31
True Heading 127°307°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 40' 25"N 40° 39' 26"N
Longitude 89° 42' 50"W 89° 41' 05"W
Elevation 636' 642'
Threshold Crossing Height 57 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights MALSR MALSR
Centerline Lights No No
Runway End Identifier Lights No No
A110-1LGTD PLINE RWY 04 APCH.
A110-4BIRDS ON AND INVOF ARPT.
A110-5PORTION OF TWY A-5 NOT VISIBLE FROM TWR DUE TO A BLDG.
A110-6ANG: MILITARY AIRCRAFT CALL 'TORCH OPS' 20 MIN PRIOR TO LDG.
A16AIRPORT OPERATIONS 309-697-8272 X 110
A39-04/22PCR VALUE: 800/F/C/X/T
A39-13/31PCR VALUE: 760/F/C/X/T
A43-22RWY 22 PAPI UNUSBL BYD 9 DEGS RIGHT OF CNTRLN.
A57-13APCH SLOPE 36:1 TO DSPLCD THLD.
GENERAL DOWNING - PEORIA INTL (ICAO: KPIA, IATA: PIA) is a public airport located in PEORIA, IL, US.
