No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPGD
PUNTA GORDA
PublicPUB

3 miles SE of PUNTA GORDA, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 55' 07"N 81° 59' 27"W
26' MSL
1026' MSL
06W
JET A, JET A (FSII), 100LL
SAINT PETERSBURG (PIE)
MIAMI
MIAMI (ZMA)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KPGD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 121.0

ATIS

ATIS
Hours: 0600-2100
 135.675

ASOS

ASOS
941-639-0076
 135.675

Clearance Delivery

CD/P
 119.55

Ground

GND/P
 119.55

Tower

LCL/P
 121.0

FAA A/FD Pages

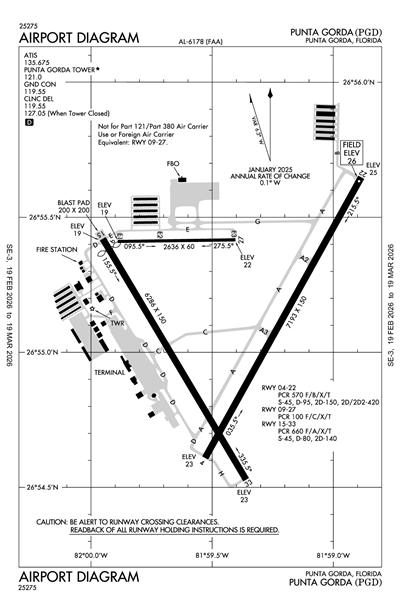

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KPGD
Domestic
1/15/251005Z !PGD 01/047 PGD OBST TOWER (ASN UNKNOWN) 265541N0815938W (0.38NM NE APCH END RWY 15)
UNKNOWN (150FT AGL) NOT LGTD 2501151005-2503010459
1/6/251724Z !PGD 01/014 PGD TWY D BTN TWY A AND COMMERCIAL RAMP CLSD 2501061724-2502072100
1/2/250247Z !PGD 01/001 PGD APRON AIR CENTER RAMP NE 200FT CLSD 2501020247-2506301600
12/31/240318Z !PGD 12/084 PGD APRON 600 HANGAR RAMP WIP CONST ADJ W SIDE 2412310318-2501312200
12/19/241503Z !PGD 12/057 PGD OBST TOWER LGT (ASR 1277608) 265541.00N0815936.40W (0.6NM NNW PGD) 128.0FT (111.5FT AGL) U/S 2412191503-2502022359
11/26/241305Z !PGD 11/075 PGD OBST TOWER LGT (ASR 1058425) 270117.00N0820254.00W (6.8NM NNW PGD) 313.0FT (288.1FT AGL) U/S 2411261305-2501262359
FDC
12/23/241402Z !FDC 4/0360 PGD IAP PUNTA GORDA, PUNTA GORDA, FL.
ILS OR LOC RWY 4, AMDT 1...
S-ILS 4 DA 378/HAT 354 ALL CATS, VIS ALL CATS 1. ISOXE FIX MINIMUMS (DME REQUIRED): S-LOC 4 MDA 440/HAT 416 ALL CATS, VIS CATS C/D 1 1/8.
TEMPORARY CRANE 138 MSL 3299FT SW OF RWY 4 (2024-ASO-15-OE).
2412231402-2508041402EST
12/23/241401Z !FDC 4/0359 PGD IAP PUNTA GORDA, PUNTA GORDA, FL.
RNAV (GPS) RWY 33, AMDT 2...
LPV DA 334/HAT 310 ALL CATS, VIS ALL CATS 7/8. LNAV/VNAV DA 396/HAT 372 ALL CATS, VIS ALL CATS 1. LNAV MDA 460/HAT 436 ALL CATS, VIS CATS C/D 1 1/4. CIRCLING CAT A/B/C MDA 660/HAA 634, VIS CAT C 1 3/4. VDP NA. TEMPORARY CRANES 302 MSL 3468FT NW OF RWY 33 (2024-ASO-7247/9144-NRA). TEMPORARY CRANES 143 MSL BEGINNING 2754FT E OF RWY 33 (2022-ASO-38410, 39209 THRU 39212-OE). TEMPORARY CRANE 138 MSL 3582FT SW OF RWY 33 (2024-ASO-15-OE).
2412231401-2508041401EST
12/23/241359Z !FDC 4/0358 PGD IAP PUNTA GORDA, PUNTA GORDA, FL.
RNAV (GPS) RWY 4, AMDT 3...
LPV DA 378/HAT 354 ALL CATS, VIS ALL CATS 1. LNAV/VNAV DA 513/HAT 489 ALL CATS, VIS ALL CATS 1 3/8. LNAV MDA 620/HAT 596 ALL CATS, VIS CATS C/D 1 3/4. CIRCLING CAT A/B/C MDA 660/HAA 634, VIS CAT C 1 3/4. VDP NA. TEMPORARY CRANES 302 MSL 2467FT NW OF RWY 4 (2024-ASO-7247/9144-NRA). TEMPORARY CRANE 138 MSL 3299FT SW OF RWY 4 (2024-ASO-15-OE).
2412231359-2508041359EST
12/23/241358Z !FDC 4/0356 PGD IAP PUNTA GORDA, PUNTA GORDA, FL.
RNAV (GPS) RWY 15, AMDT 2...
LPV DA 356/HAT 334 ALL CATS, VIS ALL CATS 1. LNAV/VNAV DA 408/HAT 386 ALL CATS, VIS ALL CATS 1 1/8. CIRCLING CAT A/B/C MDA 660/HAA 634, VIS CAT C 1 3/4. TEMPORARY CRANES 302 MSL 2700FT S OF RWY 15 (2024-ASO-7247/9144-NRA).
2412231358-2508041358EST
11/25/241950Z !FDC 4/8733 PGD ODP PUNTA GORDA, PUNTA GORDA, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
ADD TAKEOFF OBSTACLE NOTE: RWY 22, TEMPORARY CRANE 3282FT FROM DER, 338FT RIGHT OF CENTERLINE, 112FT AGL/ 138FT MSL (2024-ASO-15-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2411251950-2504281950EST
Yes
ALL
CHARLOTTE COUNTY ARPT AUTH
28000 A-1 AIRPORT RD
PUNTA GORDA, FL 33982
Phone: 941-639-1101
JAMES W PARISH
28000 A-1 AIRPORT RD
PUNTA GORDA, FL 33982
Phone: 941-639-1101
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PGD
--
ACTVT REIL RWY 04, 15, 22 & 33; PAPI RWY 04, 15, 22 & 33 - CTAF. HIRL RWY 04/22; MIRL RWY 15/33 PRESET ON LOW INTST; TO INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

7193 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

45,000lbs
95,000lbs
150,000lbs
420,000lbs
  Runway 04 Runway 22
True Heading 29°209°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 26° 54' 37"N 26° 55' 39"N
Longitude 81° 59' 32"W 81° 58' 53"W
Elevation 23' 25'
Threshold Crossing Height 50 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 09/27

2636 ft. x 60 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 26° 55' 25"N 26° 55' 25"N
Longitude 81° 59' 53"W 81° 59' 24"W
Elevation 19' 22'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

6286 ft. x 150 ft.
ASPH
Excellent
GRVD
MED

45,000lbs
80,000lbs
140,000lbs
--
  Runway 15 Runway 33
True Heading 149°329°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 55' 25"N 26° 54' 32"N
Longitude 81° 59' 57"W 81° 59' 21"W
Elevation 18' 23'
Threshold Crossing Height 47 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC FT MYERS APCH AT 239-416-1026, WHEN APCH CLSD CTC MIAMI ARTCC AT 305-716-1731.
PUNTA GORDA (ICAO: KPGD, IATA: PGD) is a public airport located in PUNTA GORDA, FL.
