iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPGA
PAGE MUNI
PublicPUB

1 miles E of PAGE, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 55' 34"N 111° 26' 54"W
4317' MSL
5317' MSL
14E
JET A, 100LL
PRESCOTT (PRC)
LAS VEGAS
DENVER (ZDV)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KPGA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
928-645-1228
 120.625

FAA A/FD Pages

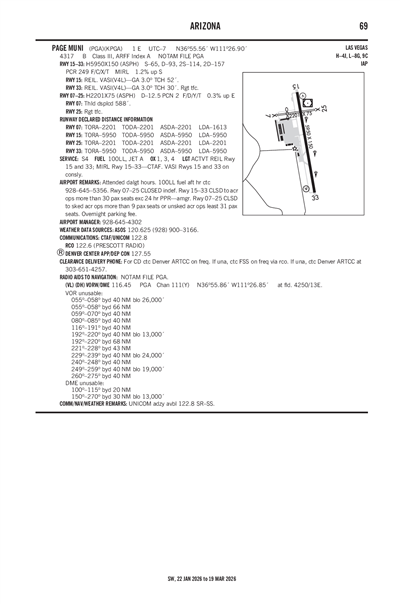

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KPGA
Domestic
1/2/251522Z !PGA 01/003 PGA TWY A RUNUP PAD FOR RWY 33 CLSD 2501021522-2510011359
7/8/241759Z !PGA 07/002 PGA TWY C CLSD 2407081759-PERM
6/12/221734Z !PGA 06/006 PGA RWY 07/25 CLSD 2206121734-PERM
FDC
9/11/241359Z !FDC 4/3821 PGA IAP PAGE MUNI, PAGE, AZ.
RNAV (GPS) RWY 15, ORIG-A...
RNAV (GPS) RWY 33, ORIG-A...
ALTERNATE MINIMUMS: CAT A/B STANDARD, CAT C 800-2 1/4, CAT D 1100-3.
2409111359-2609111359EST
No
DALGT
CITY OF PAGE
BOX 1180
PAGE, AZ 86040
Phone: 928-645-8861
KYLE CHRISTIANSEN
PO BOX 1180, 697 VISTA AVENUE
PAGE, AZ 86040
Phone: 928-645-4240
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PGA
--
ACTVT REIL RWY 15 & 33; MIRL 15/33 - CTAF. VASI RWY 15 & 33 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High Pressure
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental

Runway 07/25

2201 ft. x 75 ft.
ASPH
Good
NONE

2 /F/D/Y/T
--
12,000lbs
--
--
  Runway 07 Runway 25
True Heading 82°262°
Traffic Pattern Left Right
Markings BSC NRS
Markings Condition FAIR FAIR
Latitude 36° 55' 45"N 36° 55' 48"N
Longitude 111° 27' 13"W 111° 26' 46"W
Elevation 4,243' 4,251'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 15/33

5950 ft. x 150 ft.
ASPH
Good
NONE
MED
15 /F/C/W/T
65,000lbs
90,000lbs
190,000lbs
--
  Runway 15 Runway 33
True Heading 170°350°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 55' 58"N 36° 55' 00"N
Longitude 111° 26' 58"W 111° 26' 46"W
Elevation 4,245' 4,317'
Threshold Crossing Height 52 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2FOR CD CTC DENVER ARTCC ON FREQ. IF UNA, CTC FSS ON FREQ VIA RCO. IF UNA, CTC DENVER ARTCC AT 303-651-4257.
PAGE MUNI (ICAO: KPGA, IATA: PGA) is a public airport located in PAGE, AZ.
