iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPAO
PALO ALTO
PublicPUB

0 miles E of PALO ALTO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 27' 40"N 122° 06' 54"W
7' MSL
1007' MSL
15E
JET A, 100LL
OAKLAND (OAK)
SAN FRANCISCO
OAKLAND (ZOA)
7/11/24-8/8/24
KSQL (7nm) IFR
3:35 AM PDT
Overcast 700'
10sm
59°F
55°F
29.87"Hg
Calm
AO2
KSQL 191035Z AUTO 00000KT 10SM OVC007 15/13 A2987 RMK AO2
Add Your Business

KPAO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.6

ATIS

ATIS
(650-858-0606)
 135.275

Ground

GND/P
 125.0

Tower

LCL/P
 118.6

FAA A/FD Pages

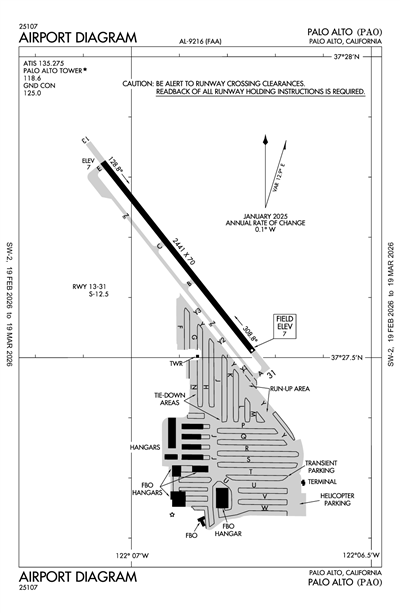

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KSJC (11nm)
Thu, 9/19 2:35 AM PDT
Thu, 9/19 3:00 AM PDT - Thu, 9/19 11:00 PM PDT
MVFR
3:00 AM PDT - 10:00 AM PDT
Broken 1,200'
6sm
VRB° 3kts
VFR
10:00 AM PDT - 8:00 PM PDT
Sky Clear
6sm
340° 7kts
VFR
8:00 PM PDT - 11:00 PM PDT
Scattered 1,500'
6sm
300° 8kts
KSJC 190935Z 1910/2006 VRB03KT P6SM BKN012
   FM191700 34007KT P6SM SKC
   FM200300 30008KT P6SM SCT015
KPAO
Domestic
9/18/241600Z !PAO 09/022 PAO AIRSPACE UAS WI AN AREA DEFINED AS .4NM RADIUS OF SJC280006.2 (3.7NM SE PAO) SFC-400FT AGL 2409181600-2409182200
9/18/241400Z !PAO 09/023 PAO AIRSPACE UNMANNED FREE BALLOON 372515N1220609W (2.6NM S PAO) SFC-FL300 NEB 2409181400-2409190500
9/2/241340Z !PAO 08/036 PAO AIRSPACE SEE SJC 08/107 UAS MON-FRI SR-SS 2409021340-2501010101
8/22/241022Z !PAO 08/024 PAO AIRSPACE UAS WI AN AREA DEFINED AS 3.5NM RADIUS OF 372750N1221155W (2NM W PAO) SFC-300FT AGL 2408221022-2412312359
7/31/240335Z !PAO 07/037 PAO RWY 31 RWY END ID LGT U/S 2407310335-2412312359
7/31/240334Z !PAO 07/036 PAO TWY A EDGE LGT U/S 2407310334-2412312359
7/19/242156Z !PAO 07/025 PAO OBST CRANE (ASN 2023-AWP-9298-OE) 372706N1220639W (0.6NM SSE PAO) 177FT (165FT AGL) FLAGGED AND LGTD 2407192156-2607192359
7/19/242154Z !PAO 07/024 PAO OBST CRANE (ASN 2023-AWP-9297-OE) 372704N1220636W (0.7NM SSE PAO) 177FT (165FT AGL) FLAGGED AND LGTD 2407192154-2607192359
4/2/241300Z !PAO 04/005 PAO OBST CRANE LGT (ASN 2024-AWP-405-OE) 372814N1220803W (1.1NM WNW PAO) 237FT (224FT AGL) U/S 2404021300-2411012359
4/2/241300Z !PAO 04/004 PAO OBST CRANE LGT (ASN 2024-AWP-404-OE) 372813N1220803W (1.1NM WNW PAO) 238FT (224FT AGL) U/S 2404021300-2411012359
4/2/241300Z !PAO 04/003 PAO OBST CRANE LGT (ASN 2024-AWP-403-OE) 372815N1220757W (1.0NM NW PAO) 235FT (224FT AGL) U/S 2404021300-2411012359
4/2/241300Z !PAO 04/002 PAO OBST CRANE LGT (ASN 2024-AWP-402-OE) 372813N1220757W (1.0NM NW PAO) 235FT (224FT AGL) U/S 2404021300-2411012359
FDC
9/1/241408Z !FDC 4/8599 PAO ODP PALO ALTO, PALO ALTO, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-B...
ADD TAKEOFF OBSTACLE NOTE: RWY 13, TEMPORARY CRANE 2504FT FROM DER, 811FT RIGHT OF CENTERLINE, 139FT AGL/151FT MSL (2023-AWP-9296-OE). DAILY 1400-0700. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. ALL OTHER DATA REMAINS AS PUBLISHED. 2409011408-2411151408EST
2/7/241346Z !FDC 4/2292 PAO IAP PALO ALTO, PALO ALTO, CA.
RNAV (GPS) RWY 31, AMDT 2...
LNAV CAT A/B MDA 520/HAT 513. CIRCLING CAT A/B MDA 520/HAA 513. TOWER 163 MSL 2927FT E OF RWY 31 (2021-AWP-14358-OE).
2402071346-2602081346EST
Yes
0600-2000
CITY OF PALO ALTO
250 HAMILTON AVENUE
PALO ALTO, CA 94301-2531
Phone: (650) 329-2444
ANDREW SWANSON
250 HAMILTON AVENUE
PALO ALTO, CA 94301-2531
Phone: (650) 329-2444
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
PAO
--
ARPT LGTS OPERATE CONTINUOUSLY WHEN ATCT CLSD.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
311
18
0
1
0
0
Major
Major
Low Pressure
None
Air Ambulance
Avionics
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

2441 ft. x 70 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 142°322°
Traffic Pattern Left Right
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 37° 27' 50"N 37° 27' 31"N
Longitude 122° 07' 04"W 122° 06' 45"W
Elevation 7' 7'
Threshold Crossing Height 29 ft. AGL 29 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1+100 FT TRANSMISSION TWRS E OF ARPT.
A110-11ARPT RSTRD BY ARPT OPR TO ACFT WITH MAX CERTD WT OF 12500 LBS OR LESS.
A110-12FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-3748.
A110-2BIRDS ON AND INVOF AP.
A110-3TPA 1000 FT W & 800 FT E.
A110-4NOISE SENSITIVE AREA SE THRU NW OF ARPT. RCMD ACFT LDG AT PALO ALTO ARPT FLY AT OR ABOVE 1500 FT UNTIL XNG THE BAYSHORE FREEWAY, AND RCMD ACFT DEP RWY 31 TURN 10 DEG RIGHT AFTER TKOF TIL RCHG DUMBARTON AUTO BRIDGE.
A110-5BE ALERT FOR PEDESTRAINS XNG A DIKE ROAD 8 FT HIGH AND 300 FT FROM RWY 13 END.
A110-6CONS PEDESTRIAN/VEHICLE ACT ON ACFT TAXI LANES NOT DESIGNATED AS TWY MOV AREAS.
A110-7ARPT SCTY PRODS IN EFCT.
A110-9ON APCH TO RWY 31 BE ALERT TO POSS STG UPDRAFT FM WIND TUNNEL LCTD ON W SIDE OF MOFFETT FEDERAL AIRFIELD.
PALO ALTO (ICAO: KPAO, IATA: PAO) is a public airport located in PALO ALTO, CA.
