KPAE
SEATTLE PAINE FLD INTL
Public
PUB
6 miles SW of EVERETT, WA
View on
Map
Status
Operational
Coordinates
47° 54' 26"N
122° 16' 56"W
Elevation
607' MSL
Pattern Alt
1607' MSL
Mag Variation
16E
Fuel
JET A, 100LL
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
10/31/24-11/28/24
KPAE
VFR
3:53 AM PST
RAW
Overcast 9,000'
Viz
10sm
Temp
54°F
Dew
41°F
Pres
29.96"Hg
Wind
140° 4kts
RMK
AO2 SLP146 T01220050 10133 20117 58008
KPAE 091153Z 14004KT 10SM OVC090 12/05 A2996 RMK AO2 SLP146 T01220050 10133 20117 58008
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KPAE FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.95
CTAF
132.95
ATIS
ATIS
425-355-9797
128.65
Clearance Delivery
CD/P
127.175
Ground
GND/P
121.8
Tower
LCL/P
RWY 16L/34R
120.2
LCL/P IC
RWY 16R/34L
132.95
Other
AR OPS
FM
34.1
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

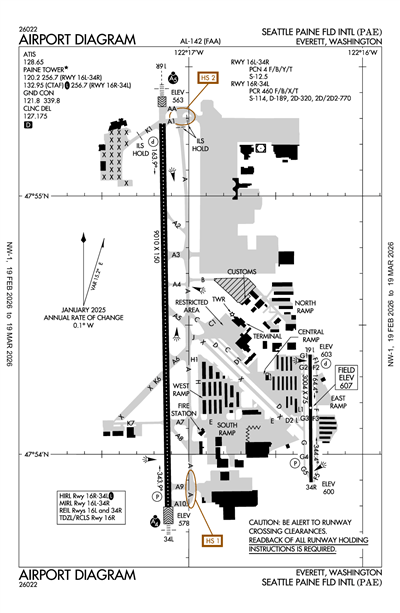

AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
DIVERSE VECTOR AREA
Departure Procedures
PAINE SIX
Hotspot
HOT SPOT
Standard Term. Arrival
CHINS FIVE
DEVYN TWO (RNAV)
OLYMPIA TWO
Instrument Approach
ILS Y OR LOC Y RWY 16R
ILS Z OR LOC Z RWY 16R
ILS Z RWY 16R (SA CAT II)
RNAV (GPS) RWY 34L
RNAV (GPS) Y RWY 16R
RNAV (GPS) Z RWY 16R
VOR-A
Terminal Area Forecast
KPAE
RAW
Reported
Sat, 11/9 3:32 AM PST
Valid
Sat, 11/9 4:00 AM PST - Sun, 11/10 4:00 AM PST
VFR
4:00 AM PST - 5:00 AM PST
Overcast 10,000'
Broken 8,000'
Viz
6sm
Wind
150° 7kts
VFR
5:00 AM PST - 9:00 AM PST
Showers in vicinity
Overcast 5,000'
Viz
6sm
Wind
160° 5kts
MVFR
9:00 AM PST - 12:00 PM PST
Light Showers and Rain
Overcast 2,500'
Viz
6sm
Wind
160° 5kts
MVFR
12:00 PM PST - 4:00 PM PST
Light Showers and Rain and Mist
Overcast 2,000'
Viz
5sm
Wind
170° 6kts
MVFR
4:00 PM PST - 11:00 PM PST
Light Rain and Mist
Overcast 1,500'
Viz
4sm
Wind
180° 6kts
IFR
11:00 PM PST - 4:00 AM PST
Mist
Overcast 700'
Viz
4sm
Wind
160° 5kts
KPAE 091132Z 0912/1012 15007KT P6SM BKN080 OVC100
FM091300 16005KT P6SM VCSH OVC050
FM091700 16005KT 6SM -SHRA OVC025
FM092000 17006KT 5SM -SHRA BR OVC020
FM100000 18006KT 4SM -RA BR OVC015
FM100700 16005KT 4SM BR OVC007
KPAE
Domestic
11/2/24
0121Z
!PAE 11/001 PAE OBST TOWER LGT (ASR 1228661) 475545.30N1221420.40W (2.2NM NE PAE) 815.0FT (199.8FT AGL) U/S 2411020121-2501012359
10/9/24
1504Z
!PAE 10/036 PAE OBST CRANE (ASN 2024-ANM-2316-OE) 475430N1221544W (0.8NM E PAE) 725FT (162FT AGL) FLAGGED 2410091504-2412312359
8/9/24
1300Z
!PAE 08/025 PAE AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF
474044.70N1220751.60W (6.9NM ESE S60) SFC-400FT AGL FRI MON TUE WED
THU 1300-0500 2408091300-2501010500
ATC Tower
Yes
Attendance
NOV-APR 0700-2100
MAY-OCT 0700-2100
Owner
SNOHOMISH COUNTY
3000 ROCKEFELLER AVE.
EVERETT, WA 98201
Phone: 425-388-5110
Manager
JOSHUA MARCY
3220 100TH ST SW
EVERETT, WA 98204
Phone: 425-308-2347
FSS
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
NOTAM
PAE
Light Schedule
--
Lights
WHEN ATCT CLSD, ACTVT MALSR RWY 16R; PAPI RWY 34L; HIRL RWY 16R/34L - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
Yes
Parking
Hanger, Tie-Down
Int'l Operations
Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High Pressure
Bulk Oxygen
High Pressure
Other Services
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 16L/34R
Dimensions
3004 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
4 /F/B/Y/T
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 16L
Runway 34R
True Heading
180°
360°
Traffic Pattern
Right
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
47° 54' 23"N
47° 53' 53"N
Longitude
122° 16' 18"W
122° 16' 18"W
Elevation
603'
600'
Threshold Crossing Height
24 ft. AGL
22 ft. AGL
Visual Glide Path Angle
3.25°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
Runway 16R/34L
Dimensions
9010 ft. x 150 ft.
Surface Type
ASPH CONC
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
83 /F/A/W/T
Single Wheel
100,000lbs
Double Wheel
200,000lbs
Double Tandem
350,000lbs
Dual Dbl Tand
830,000lbs
Runway 16R
Runway 34L
True Heading
179°
359°
Traffic Pattern
Right
Markings
PIR
NPI
Markings Condition
GOOD
GOOD
Latitude
47° 55' 17"N
47° 53' 48"N
Longitude
122° 17' 09"W
122° 17' 07"W
Elevation
563'
578'
Threshold Crossing Height
74 ft. AGL
75 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4R
P4L
Approach Lights
MALSR
MALSF
Centerline Lights
Yes
Yes
Runway End Identifier Lights
A110-12
FLOCKS OF LRG & SML BIRDS INVOF ARPT.
A110-15
ITNRNT DEP OF SML ACFT OVER 250 HORSEPOWER ON RWY 34R.
A110-16
TWY A-2 RSTRD TO 30000 LBS.
A110-17
AREAS NOT VSB FM ATCT INCL E EDGE OF S 1200 FT OF TWY A, TAXILANE E FM SE CORNER OF W HNGRS TO TWY A, TAXILANE H FROM NW EDGE OF W HNGRS TO TAXILANE E.
A110-24
FOR NOISE ABATEMENT FROM 0500-1500Z++ IF ACFT PERFORMANCE/WIND ALLOWS, USE RY 16R FOR ARRIVALS AND RY 34L FOR DEPARTURES.
A110-25
TAXILANE E RSTD TO WINGSPAN LESS THAN 171 FT. ACFT WINGSPAN OF 171 FT OR GREATER ON TAXILANE E, TUG OPS ONLY. EAST 500 FT OF TAXILANE E RSTD TO WINGSPAN LESS THAN 49 FT.
A110-27
TWY C BTN TRML RAMP AND CNTRL RAMP RSTRD TO WINGSPAN OF 68 FT OR LESS. TWY D, F, G AND L RSTRD TO WINGSPAN LESS THAN 49 FT. TWY A4, A5, K7 & B RSTRD TO WINGSPAN LESS THAN 118 FT. TAXILANE H RSTRD TO WINGSPAN LESS THAN 49 FT.
A110-28
PAE HAS FAC CONSTRAINTS THAT LMT ITS ABILITY TO ACCOMMODATE DIVD FLTS AND MNTN THE ARPTS SAFE OPN DUR IREG OPS. ACFT OPR SHOULD CTCT THE ON-DUTY ARPT OPS PSNL (425-388-5125) TO COORD DIVD FLTS EXC IN THE CASE OF A DECLARED IN-FLT EMERG.
A110-29
PPR RQRD FOR ACES ON BOEING RAMP. CTC BOEING FLT DISPATCH 206-544-5900 FOR APVL. PRIOR TO TAXI ONTO BOEING RAMP CTC BOEING RADIO TWR 123.475 OR CALL 425-342-5900.
A110-3
NOISE SENSITIVE ARPT; FOR NOISE ABATEMENT PROC & TFC PROC CALL ARPT OPS 425-388-5125.
A110-30
TWY K1 CLSD TO ACFT UNDER 30000 LBS.
A110-31
TSNT HEL EXP LNDG/TKOF ON TWY B.
A110-32
AIRFIELD CONDS NOT MNTD BTN 0000-0600.
A110-33
EMERG FREQ 121.5 NOT MNT AT TWR. SEATTLE APP CON-TRACON MNT 121.5 FOR EVERETT (PAE).
A110-34
FOR CD WHEN ATCT IS CLSD CTC SEATTLE APCH AT 206-214-4722.
A110-35
TKOF CLNC RWY 16R FULL LEN; ENT RWY VIA TWY A1 UNLESS TWY AA SPECIFIED.
A110-36
LRG ACFT FLY W PAT OVR WTR; SML ACFT FLY E PAT OVR ARPT.
A110-37
USE CTN FOR 80 FT AGL LGT POLES SW EDGE OF BRAVO RAMP.
A110-5
IT IS REQ THAT PILOTS ADHERE TO THE FLW NOISE ABATEMENT PROC UNLESS OTRW INSTRD BY ATCT, ITNRNT ARR AND LOW APCH OF SML ACFT OVER 250 HORSEPOWER AUZ ON RWYS 16L AND 34R.
A110-6
BE ALERT TO CNVG TFC ON BASE TO FINAL LEGS RWY 16R/34L 2100-0700.
A110-7
AVOID LOW LVL OVRFLT OF BOEING RAMP; NE CORNER OF ARPT DUE TO JET BLAST.
A110-8
TRNG FLTS DISCOURAGED AFT 2200.
SEATTLE PAINE FLD INTL (ICAO: KPAE, IATA: PAE) is a public airport located in EVERETT, WA.
