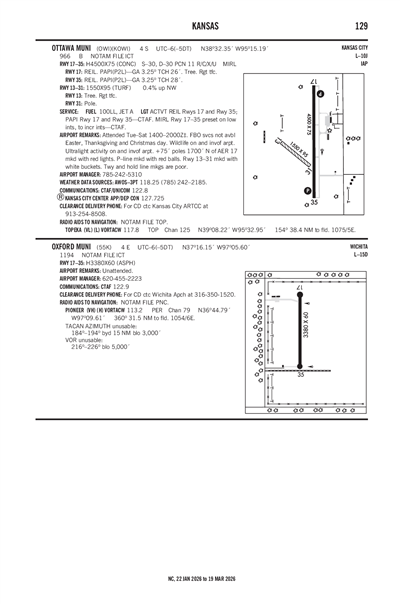

OTTAWA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOWI
ICAO KOWIIATA OWILocal OWI
OTTAWA MUNI
PublicPUB

4 miles S of OTTAWA, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 32' 21"N 95° 15' 11"W
Elevation
966' MSL
Pattern Alt
1966' MSL
Mag Variation
2°E
Declination
4°E
Fuel
JET A, 100LL
FSS
WICHITA (ICT)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KOWI LIFR
9:55 PM CST
Overcast 300'
N/A
45°F
45°F
30.07"Hg
020° 7kts
AO2 P0001
METAR KOWI 040355Z AUTO 02007KT OVC003 07/07 A3007 RMK AO2 P0001
+ Add Your Business

KOWI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.25
(785) 242-2185

Common

CTAF 122.8
ACTVT REILS RWY 17 & 35; PAPI RWY 17 & 35 - CTAF. MIRL RWY 17/35 PRESET ON LOW INTST TO INCR INTST - CTAF.
UNICOM 122.8

Center

KANSAS CITY CENTER 127.725
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 127.725/270.25 (EMPORIA RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KIXD (24nm)
Tue, 3/3 5:32 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
6:00 PM CST - 12:00 AM CST
Light Drizzle and Mist
Overcast 300'
1sm
040° 7kts
VFR
7:00 PM CST - 12:00 AM CST
Light Showers and Rain
No Clouds
N/A
Calm
LIFR
12:00 AM CST - 10:00 AM CST
Light Drizzle and Mist
Overcast 400'
3sm
040° 8kts
IFR
10:00 AM CST - 4:00 PM CST
Mist
Overcast 700'
6sm
VRB° 4kts
MVFR
4:00 PM CST - 6:00 PM CST
Mist
Overcast 1,500'
6sm
VRB° 4kts
TAF KIXD 032332Z 0400/0424 04007KT 1SM -DZ BR OVC003
   PROB30 0401/0406 -SHRA
   FM040600 04008KT 3SM -DZ BR OVC004
   FM041600 VRB04KT 6SM BR OVC007
   FM042200 VRB04KT 6SM BR OVC015
KOWI
EffectiveExpiresCategoryNOTAM
Domestic
2/4/26
2205Z
!ICT 02/054 OWI SVC AUTOMATED WX BCST SYSTEM VIS/PRESENT WX UNREL 2602042205-2608282359EST
No
TUES - SAT 0800 - 1400
CITY OF OTTAWA
POST OFFICE BOX 60
OTTAWA, KS 66067
Phone: 785-229-3630
JIM REEDER
2178 MONTANA RD
OTTAWA, KS 66067
Phone: 785-242-5310
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT REILS RWY 17 & 35; PAPI RWY 17 & 35 - CTAF. MIRL RWY 17/35 PRESET ON LOW INTST TO INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Glider Service
Pilot Instruction
Aircraft Sales
Annual Surveying

Runway 13/31

1550 ft. x 95 ft.
TURF
Good
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 131°311°
Traffic Pattern Right Left
Markings
Markings Condition
Latitude 38° 32' 23"N 38° 32' 13"N
Longitude 95° 15' 27"W 95° 15' 12"W
Elevation 963' 957'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4500 ft. x 75 ft.
CONC
Good
NONE
MED
11/R/C/X/U
30,000lbs
30,000lbs
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 32' 44"N 38° 31' 60"N
Longitude 95° 15' 09"W 95° 15' 09"W
Elevation 964' 964'
Threshold Crossing Height 26 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3.25° 3.25°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-3FBO SVCS NOT AVBL EASTER, THANKSGIVING AND CHRISTMAS DAY.
A110-475 FT POLES 1700 FT N OF AER 17 MKD W/RED LGTS. PLINE MKD W/RED BALLS.
A110-5WILDLIFE ON & INVOF ARPT
A110-6FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A110-7TWY AND HOLD LINE MKGS POOR.
A16AMGR CELL 785-418-5271.
A42-13_MARKRWY 13/31 MKD WITH WHITE BUCKETS.
A81-APTACTVT REILS RWY 17 & 35; PAPI RWY 17 & 35 - CTAF. MIRL RWY 17/35 PRESET ON LOW INTST TO INCR INTST - CTAF.
OTTAWA MUNI (ICAO: KOWI, IATA: OWI) is a public airport located in OTTAWA, KS, US.
