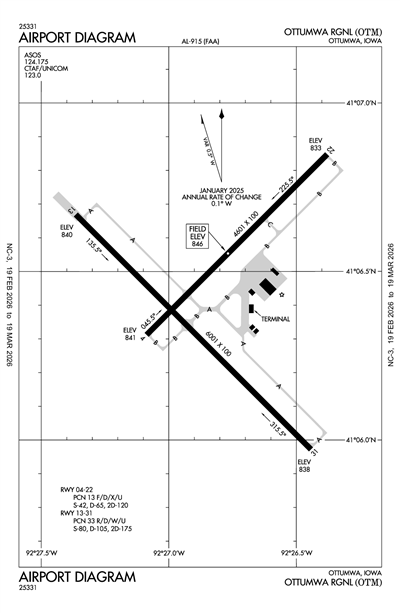

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOTM
OTTUMWA RGNL
PublicPUB

5 miles NW of OTTUMWA, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 06' 26"N 92° 26' 50"W
846' MSL
1846' MSL
01W
JET A, 100LL
FORT DODGE (FOD)
CHICAGO
CHICAGO (ZAU)
10/31/24-11/28/24
KOTM VFR
5:53 AM CST
Broken 12,000'
Few 9,500'
10sm
47°F
43°F
30.14"Hg
100° 9kts
AO2 SLP208 T00830061 10083 20061 55012
KOTM 091153Z AUTO 10009KT 10SM FEW095 BKN120 08/06 A3014 RMK AO2 SLP208 T00830061 10083 20061 55012
Add Your Business

KOTM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
641-684-9164
 124.175

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KOTM
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Broken 15,000'
6sm
110° 9kts
VFR
10:00 AM CST - 3:00 PM CST
Light Showers and Rain
Overcast 8,000'
6sm
120° 11kts
MVFR
3:00 PM CST - 5:00 PM CST
Overcast 1,500'
6sm
130° 12kts
Gusts 20kts
IFR
5:00 PM CST - 1:00 AM CST
Overcast 600'
6sm
130° 11kts
MVFR
1:00 AM CST - 4:00 AM CST
Broken 1,400'
6sm
180° 8kts
VFR
4:00 AM CST - 6:00 AM CST
Scattered 5,000'
6sm
200° 9kts
KOTM 091120Z 0912/1012 11009KT P6SM BKN150
   FM091600 12011KT 6SM -SHRA OVC080
   FM092100 13012G20KT P6SM OVC015
   FM092300 13011KT P6SM OVC006
   FM100700 18008KT P6SM BKN014
   FM101000 20009KT P6SM SCT050
KOTM
Domestic
11/6/241500Z !OTM 11/003 OTM NAV ILS RWY 31 U/S 2411061500-2411062000
11/1/242214Z !OTM 11/002 OTM OBST TOWER LGT (ASR 1233577) 410002.80N0921930.40W (8.4NM SE OTM) 1124.7FT (315.0FT AGL) U/S 2411012214-2412162213
11/1/241125Z !OTM 11/001 OTM OBST TOWER LGT (ASR 1014417) 410128.00N0922857.00W (5.2NM SSW OTM) 1184.4FT (414.7FT AGL) U/S 2411011125-2412312359
No
0700-2000
FOR ATTENDANT AFT HRS CALL 641-799-9120 OR 641-208-5821.
CITY OF OTTUMWA
CITY HALL
OTTUMWA, IA 52501
Phone: 641-683-0619
JAY WHEATON
14802 TERMINAL ST
OTTUMWA, IA 52501
Phone: 641-683-0619
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
OTM
--
ACTVT MALSR RWY 31; REIL RWY 04, 22 & 13; PAPI RWY 04, 13 & 22; HIRL RWY 13/31 & RWY 04/22 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

4601 ft. x 100 ft.
ASPH CONC
Good
NONE
HIGH
13 /F/D/X/U
42,000lbs
65,000lbs
120,000lbs
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 06' 19"N 41° 06' 51"N
Longitude 92° 27' 05"W 92° 26' 23"W
Elevation 841' 833'
Threshold Crossing Height 40 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 13/31

6001 ft. x 100 ft.
CONC
Excellent
GRVD
HIGH
33 /R/D/W/U
80,000lbs
105,000lbs
175,000lbs
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 06' 40"N 41° 05' 58"N
Longitude 92° 27' 22"W 92° 26' 27"W
Elevation 840' 838'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No
A110-3RY 31 IS PREFERRED CALM WIND RY.
A110-4REMOTE CTL ACFT OPNS IN AREA.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC CHICAGO ARTCC AT 630-906-8921.
OTTUMWA RGNL (ICAO: KOTM, IATA: OTM) is a public airport located in OTTUMWA, IA.
