iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOSU
OHIO STATE UNIVERSITY
PublicPUB

10 miles NW of COLUMBUS, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 04' 46"N 83° 04' 24"W
906' MSL
1906' MSL
05W
JET A-1+, 100LL
DAYTON (DAY)
DETROIT
INDIANAPOLIS (ZID)
10/31/24-11/28/24
KOSU VFR
6:53 AM EST
Clear
10sm
40°F
36°F
30.33"Hg
050° 4kts
AO2 SLP275 T00440022 10078 20039 51015
KOSU 091153Z 05004KT 10SM CLR 04/02 A3033 RMK AO2 SLP275 T00440022 10078 20039 51015
Add Your Business

KOSU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.8

ATIS

ATIS
 121.35

ASOS

ASOS
614-451-2465
 121.35

Clearance Delivery

CD/P
 121.7

Ground

GND/P
 121.7

Tower

LCL/P
 118.8

Other

NG OPS
FM
 46.8
NG OPS
 123.075

FAA A/FD Pages

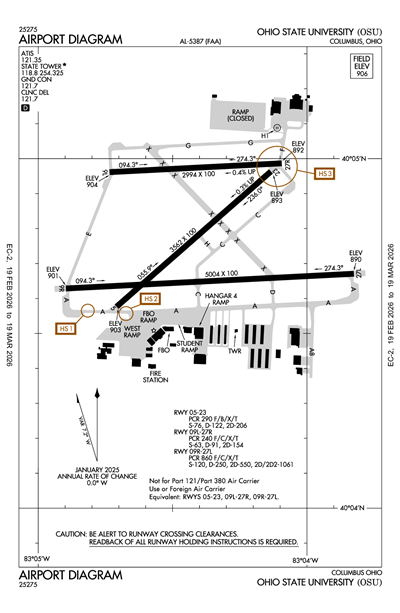

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KCMH (10nm)
Sat, 11/9 6:20 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 5:00 PM EST
Scattered 25,000'
6sm
090° 6kts
VFR
5:00 PM EST - 2:00 AM EST
Broken 20,000'
6sm
100° 6kts
VFR
2:00 AM EST - 6:00 AM EST
Broken 8,000'
6sm
150° 6kts
MVFR
6:00 AM EST - 7:00 AM EST
Broken 2,500'
6sm
170° 8kts
KCMH 091120Z 0912/1012 09006KT P6SM SCT250
   FM092200 10006KT P6SM BKN200
   FM100700 15006KT P6SM BKN080
   FM101100 17008KT P6SM BKN025
KOSU
Domestic
6/11/242100Z !OSU 06/009 OSU OBST CRANE (ASN UNKNOWN) 400149N0830158W (3.19NM SSE APCH END RWY 27L)
1065FT (304FT AGL) LGTD 2406112100-2511282200
6/11/242047Z !OSU 06/008 OSU TWY A1 CLSD 2406112047-PERM
FDC
11/14/231536Z !FDC 3/0836 OSU IAP OHIO STATE UNIVERSITY, COLUMBUS, OH.
ILS OR LOC RWY 9R, AMDT 5C...
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE JOHN GLENN COLUMBUS INTL ALTIMETER SETTING; INCREASE DA TO 1140 FEET; INCREASE ALL MDAS 40 FEET AND S-LOC 9R VISIBILITY CATS C AND D AND CIRCLING CAT C 1/8 SM AND CIRCLING CAT D 1/4 SM.
2311141536-2511141536EST
Yes
0600-2300
OHIO STATE UNIVERSITY
OHIO STATE UNIV AIRPORT, 2160 WEST CASE RD
COLUMBUS, OH 43235-2539
Phone: 614-292-5460
KARL VON HAGEL
OHIO STATE UNIV AIRPORT, 2160 WEST CASE RD
COLUMBUS, OH 43235-2539
Phone: 614-292-4229
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
OSU
--
WHEN ATCT CLSD ACTVT MALSR RWY 09R - CTAF. REIL RWY 27L; PAPI RWY 09R & 27L; VASI RWY 09L & 27R; HIRL RWY 09R/27L - OPR CONSLY MED INTST. MIRL RWY 09L/27R - OPR CONSLY LOW INTST.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Cargo Handling
Pilot Instruction

Runway 05/23

3562 ft. x 100 ft.
ASPH
Good
NONE

12 /F/B/X/T
21,000lbs
32,000lbs
--
--
  Runway 05 Runway 23
True Heading 49°229°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 04' 35"N 40° 04' 58"N
Longitude 83° 04' 42"W 83° 04' 08"W
Elevation 903' 893'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09L/27R

2994 ft. x 100 ft.
ASPH
Fair
NONE
MED
5 /F/B/X/T
25,000lbs
--
--
--
  Runway 09L Runway 27R
True Heading 87°267°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 04' 58"N 40° 04' 59"N
Longitude 83° 04' 44"W 83° 04' 06"W
Elevation 904' 892'
Threshold Crossing Height 27 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09R/27L

5004 ft. x 100 ft.
ASPH
Good
GRVD
HIGH
17 /F/B/X/T
45,000lbs
60,000lbs
--
--
  Runway 09R Runway 27L
True Heading 87°267°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 40° 04' 38"N 40° 04' 40"N
Longitude 83° 04' 54"W 83° 03' 49"W
Elevation 901' 890'
Threshold Crossing Height 51 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway H1

40 ft. x 40 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 94°274°
Traffic Pattern
Markings
Markings Condition
Latitude 40° 05' 05"N N/A
Longitude 83° 04' 07"W N/A
Elevation 890' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NOISE SENSITIVE AREA WITHIN 4 MILES TO THE NORTH AND NORTHEAST. NOISE ABATEMENT RSTRNS: NO TGL OR RPTD TKOF/LNDG 2300-0700 DLY.
A110-10CLSD TO PART 121 SKEDD ACR OPS GTR THAN 9 PAX SEATS; 90 DAY PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - CALL AMGR.
A110-2BIRDS & DEER ON & INVOF ARPT.
A110-3ALL TWYS NORTH OF RWY 09R/27L CLSD TO UNSKED ACR OPS GTR THAN 30 PAX SEATS.
A110-4SNOW REMOVAL OPERATING PROCEDURES: WHEN TWR CLSD ANNOUNCE ARRS/DEPS ON FREQ 118.8.
A110-5HELIPORT (UNLIT) LOCATED NORTH SIDE AIRFIELD, ADJACENT AIR GUARD RAMP, TWY G.
A110-6HELICOPTER LNDGS/TKFS PROHIBITED ON TWY A AND ALL RAMP AREA SOUTH OF TWY A. HELICOPTERS GROUND TAXI IF CAPABLE ON TWY A ABEAM RAMP.
A110-7SFC CONDS UNMON 2300-0700.
A110-8CLSD RAMP NORTH OF TWY G 24 HR PPR FOR USE (614) 292-5617.
A110-9RWY 05/23 CLSD DLY SS-SR.
OHIO STATE UNIVERSITY (ICAO: KOSU, IATA: OSU) is a public airport located in COLUMBUS, OH.
