iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOSH
WITTMAN RGNL
PublicPUB

2 miles S of OSHKOSH, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 59' 04"N 88° 33' 25"W
808' MSL
1808' MSL
03W
JET A (FSII), 100LL
GREEN BAY (GRB)
CHICAGO
CHICAGO (ZAU)
10/31/24-11/28/24
KOSH VFR
5:53 AM CST
Clear
10sm
41°F
36°F
30.30"Hg
120° 4kts
AO2 SLP267 T00500022 10072 20039 58006
KOSH 091153Z 12004KT 10SM CLR 05/02 A3030 RMK AO2 SLP267 T00500022 10072 20039 58006
Add Your Business

KOSH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.5

ATIS

ATIS
 125.9

Emergency

EMERG
 121.5

Ground

GND/P
 132.3

Tower

LCL/P
 118.5

FAA A/FD Pages

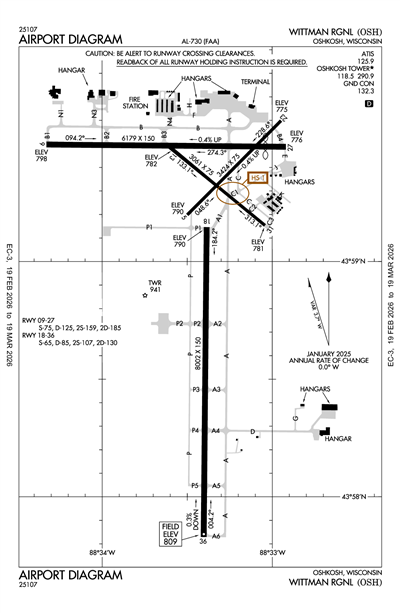

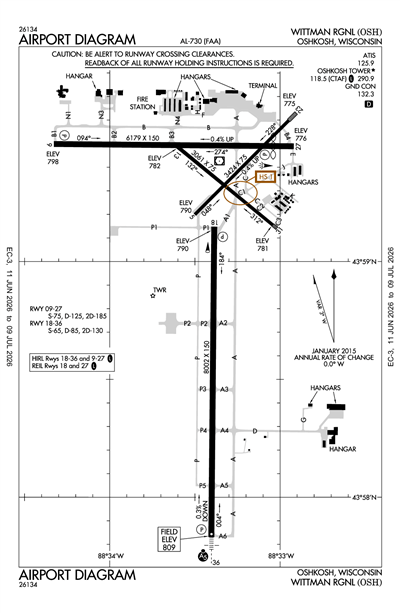

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KATW (16nm)
Sat, 11/9 5:32 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 9:00 AM CST
Broken 25,000'
6sm
100° 5kts
VFR
9:00 AM CST - 9:00 PM CST
Broken 20,000'
6sm
150° 8kts
VFR
9:00 PM CST - 1:00 AM CST
Overcast 5,000'
6sm
130° 7kts
MVFR
9:00 PM CST - 1:00 AM CST
Light Showers and Rain
Overcast 3,000'
N/A
Calm
MVFR
1:00 AM CST - 4:00 AM CST
Light Showers and Rain
Overcast 2,200'
6sm
130° 5kts
MVFR
4:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist
Overcast 1,200'
5sm
130° 7kts
KATW 091132Z 0912/1012 10005KT P6SM BKN250
   FM091500 15008KT P6SM BKN200
   FM100300 13007KT P6SM OVC050
   PROB30 1003/1007 -SHRA OVC030
   FM100700 13005KT P6SM -SHRA OVC022
   FM101000 13007KT 5SM -SHRA BR OVC012
KOSH
Domestic
11/4/240620Z !OSH 11/001 OSH OBST TOWER LGT (ASR 1292580) 435322.20N0884315.10W (9.1NM SW OSH) 1158.8FT (259.8FT AGL) U/S 2411040620-2412190619
10/24/241852Z !OSH 10/027 OSH OBST CRANE (ASN 2024-AGL-2147-OE) 440046N0883243W (1.8NM NNE OSH) 940FT (190FT AGL) FLAGGED 2410241852-2411292000
10/16/242325Z !OSH 10/019 OSH OBST TOWER LGT (ASR 1039441) 435624.90N0885605.30W (16.5NM W OSH) 1452.1FT (503.0FT AGL) U/S 2410162325-2501140400
9/18/240440Z !OSH 09/020 OSH OBST TOWER LGT (ASR 1047465) 435103.00N0884639.00W (12.5NM SW OSH) 1290.0FT (319.9FT AGL) U/S 2409180440-2412312359
8/14/241157Z !OSH 08/022 OSH OBST TOWER LGT (ASR 1212176) 435901.20N0883404.30W (0.5NM W OSH) 859.9FT (52.8FT AGL) U/S 2408141157-2411302359
FDC
7/18/231641Z !FDC 3/8212 OSH IAP WITTMAN RGNL, OSHKOSH, WI.
RNAV (GPS) RWY 9, AMDT 1B...
LPV DA 1061/HAT 264.
2307181641-2507181641EST
7/18/231641Z !FDC 3/8211 OSH IAP WITTMAN RGNL, OSHKOSH, WI.
VOR RWY 9, AMDT 10B...
(CETOL FIX MINIMUMS) S-9 MDA 1280/HAT 482.
2307181641-2507181641EST
7/18/231641Z !FDC 3/8210 OSH ODP WITTMAN RGNL, OSHKOSH, WI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1A...
TAKE-OFF MINIMUMS RWY 23, 300-1.
ALL OTHER DATA REMAINS AS PUBLISHED. 2307181641-2507181641EST
Yes
0700-2000
FOR ARPT ATTENDANT OTR HRS CALL 920-236-7827.
WINNEBAGO COUNTY
415 JACKSON ST
OSHKOSH, WI 54901
Phone: 920-236-4930
JAMES SCHELL
525 W 20TH AVE
OSHKOSH, WI 54902
Phone: 920-236-4930
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
OSH
--
ACTVT MALSR RWY 36; HIRL RWY 09/27 - CTAF. HIRL 18/36 PRESET ON MED INTST, TO INCR INTST & ACTVT - CTAF. PAPI RWY 09, 27, 18 & 36 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

3424 ft. x 75 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 59' 12"N 43° 59' 36"N
Longitude 88° 33' 30"W 88° 32' 57"W
Elevation 790' 775'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 09/27

6179 ft. x 150 ft.
CONC
Good
GRVD
HIGH

75,000lbs
125,000lbs
185,000lbs
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 59' 30"N 43° 59' 29"N
Longitude 88° 34' 20"W 88° 32' 55"W
Elevation 798' 776'
Threshold Crossing Height 50 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 13/31

3061 ft. x 75 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 129°309°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 43° 59' 28"N 43° 59' 09"N
Longitude 88° 33' 35"W 88° 33' 03"W
Elevation 782' 781'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

8002 ft. x 150 ft.
CONC
Good
GRVD
HIGH

65,000lbs
85,000lbs
130,000lbs
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 43° 59' 09"N 43° 57' 50"N
Longitude 88° 33' 23"W 88° 33' 24"W
Elevation 790' 808'
Threshold Crossing Height 47 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-10FOR CD IF UNA TO CTC ON FSS FREQ, CTC CHICAGO ARTCC AT 630-906-8921.
A110-11SFC CONDS NOT MONTRD BTWN 2200 - 0500 HRS.
A110-4BIRDS ON & INVOF ARPT.
A110-8RWYS 13/31, 05/23 & TWYS C, H, P NOT AVBL TO ACFT WITH MORE THAN 30 PSGR SEATS.
A110-9RY 23 & RY 27 APCH ENDS ARE CLOSELY ALIGNED. VERIFY CORRECT RY AND COMPASS HEADING PRIOR TO DEP.
WITTMAN RGNL (ICAO: KOSH, IATA: OSH) is a public airport located in OSHKOSH, WI.
