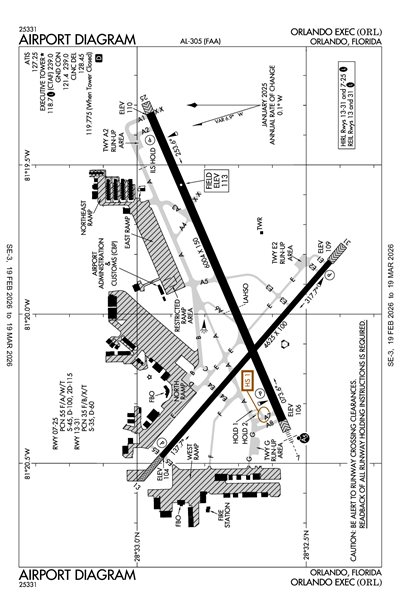

ORLANDO EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KORL
ICAO KORLIATA ORLLocal ORL
ORLANDO EXEC
PublicPUB

3 miles E of ORLANDO, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
28° 32' 44"N 81° 19' 59"W
Elevation
113' MSL
Pattern Alt
1113' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A, 100LL, 100
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KORL VFR
9:53 PM EST
Clear
10sm
67°F
64°F
30.26"Hg
050° 5kts
AO2 SLP250 T01940178 51010
METAR KORL 040253Z 05005KT 10SM CLR 19/18 A3026 RMK AO2 SLP250 T01940178 51010
+ Add Your Business

KORL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.25
ASOS 127.25
(407) 658-6753

Common

CTAF 118.7
ATC-CTL. WHEN ATCT CLSD ACTVT MALSR RWY 07; REIL RWYS 13 & 31; HIRL RWYS 07/25 & 13/31; TWY LGTS - CTAF. PAPI RWY 7, 25, 13 & 31 OPR CONS.
UNICOM 122.95

Clearance

Clearance Delivery 119.775
FOR CD OR TO CNL IFR WHEN ATCT CLSD
Clearance Delivery 128.45

Ground

EXECUTIVE GROUND 121.4
0700-2200

Tower

EXECUTIVE TOWER 118.7
0700-2200

Arrival

ALYNA STAR 124.8
JAFAR STAR 134.05
JOKRS STAR 134.05
LEESE STAR 128.675
LEESE STAR 134.05
MINEE STAR 134.05
PRICY STAR 134.05
RIDES STAR 128.375
SHREK STAR 128.675
SHREK STAR 134.05
TTHOR STAR 118.85
TTHOR STAR 125.225

Approach

ORLANDO APPROACH 119.4
181-310 5500 FT & BLW
ORLANDO APPROACH 119.4
SOUTHWEST
ORLANDO APPROACH 119.4
Initial Contact - RWY 07
ORLANDO APPROACH 120.15
181-359 ABV 5500 FT
ORLANDO APPROACH 124.8
Initial Contact - 000-180 ABV 5000 FT
ORLANDO APPROACH 125.225
061-180 4500 FT & BLW
ORLANDO APPROACH 125.225
Initial Contact - RWY 25
ORLANDO APPROACH 135.3
311-060 5500 FT & BLW

Departure

NYTES DP 125.225
ORLANDO DEPARTURE 119.4
Initial Contact - RWY 07
ORLANDO DEPARTURE 119.4
SOUTHWEST
ORLANDO DEPARTURE 119.4
181-310 5500 FT & BLW
ORLANDO DEPARTURE 120.15
181-359 ABV 5500 FT
ORLANDO DEPARTURE 124.8
Initial Contact - 000-180 ABV 5000 FT
ORLANDO DEPARTURE 125.225
Initial Contact - RWY 25
ORLANDO DEPARTURE 125.225
061-180 4500 FT & BLW
ORLANDO DEPARTURE 135.3
311-060 5500 FT & BLW
TOLLZ DP 119.4

Flight Service

Flight Service 122.3
(PIE)

Emergency

Emergency 121.5

Terminal Area Forecast

KMCO (8nm)
Tue, 3/3 9:59 PM EST
Tue, 3/3 10:00 PM EST - Thu, 3/5 1:00 AM EST
VFR
10:00 PM EST - 10:00 AM EST
Scattered 3,500'
6sm
050° 7kts
VFR
10:00 AM EST - 6:00 PM EST
Scattered 5,000'
Scattered 3,000'
6sm
090° 11kts
VFR
6:00 PM EST - 1:00 AM EST
Few 3,000'
6sm
070° 9kts
TAF KMCO 040259Z 0403/0506 05007KT P6SM SCT035
   FM041500 09011KT P6SM SCT030 SCT050
   FM042300 07009KT P6SM FEW030
KORL
EffectiveExpiresCategoryNOTAM
Domestic
2/28/26
1200Z
2/28/26
1900Z
Runway!ORL 02/074 ORL RWY 07 ALS U/S 2602281200-2602281900
2/26/26
1100Z
2/27/26
0200Z
!ORL 02/069 ORL TWY A5 CLSD 2602261100-2602270200
2/25/26
1100Z
2/26/26
0200Z
!ORL 02/068 ORL TWY A6 CLSD 2602251100-2602260200
2/25/26
0200Z
2/27/26
1100Z
!ORL 02/076 ORL TWY A1, A2, A3, A4, A6, A7, A7 HLDG PAD NUMBER 2, A7 HLDG PAD NUMBER 1, A7 HLDG PADS ACCESS, A8, TWY E3 BTN RWY 07/25 AND TWY E, TWY A5 BTN RWY 07/25 AND TWY A CLSD DLY 0200-1100 2602250200-2602271100
2/24/26
0200Z
2/27/26
1100Z
Runway!ORL 02/061 ORL RWY 07/25 CLSD DLY 0200-1100 2602240200-2602271100
2/22/26
0521Z
3/9/26
0421Z
!ORL 02/073 ORL OBST TOWER LGT (ASR 1269195) 284000.30N0812214.70W (7.4NM NNW ORL) 279.9FT (194.9FT AGL) U/S 2602220521-2603090421
2/22/26
0311Z
3/16/26
2359Z
!ORL 02/072 ORL AD AP SELF SERVE 100LL FUEL NOT AVBL 2602220311-2603162359
2/21/26
0718Z
6/1/26
2359Z
!ORL 02/071 ORL OBST TOWER LGT (ASR 1242145) 283301.50N0812725.80W (6.6NM W ORL) 439.0FT (350.1FT AGL) U/S 2602210718-2606012359
2/3/26
0035Z
5/3/26
0500Z
!ORL 02/008 ORL OBST TOWER LGT (ASR 1030352) 283631.10N0812334.70W (4.8NM NW ORL) 471.1FT (371.1FT AGL) U/S 2602030035-2605030500
1/30/26
1752Z
2/28/26
2359Z
!ORL 01/093 ORL OBST TOWER LGT (ASR 1205212) 283527.00N0811217.00W (7.4NM ENE ORL) 548.9FT (477.0FT AGL) U/S 2601301752-2602282359
1/24/26
0446Z
3/10/26
0445Z
!ORL 01/075 ORL OBST TOWER LGT (ASR 1039785) 283635.00N0811927.00W (3.9NM NE ORL) 412.1FT (329.1FT AGL) U/S 2601240446-2603100445
1/21/26
2001Z
1/21/27
0500Z
!ORL 01/062 ORL TWY E3 BTN TWY E AND RWY 07/25 CLSD TO ACFT WINGSPAN MORE THAN 50FT 2601212001-2701210500
1/8/26
1100Z
9/27/26
2200Z
!ORL 01/016 ORL AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 282638N0812733W (7.6NM W MCO) SFC-400FT AGL DLY 1100-2200 2601081100-2609272200
1/7/26
1640Z
4/7/26
0500Z
!ORL 01/015 ORL OBST TOWER LGT (ASR 1029727) 283141.20N0811452.80W (4.6NM ESE ORL) 368.1FT (293.0FT AGL) U/S 2601071640-2604070500
12/31/25
2331Z
3/31/26
2359Z
!ORL 12/109 ORL OBST TOWER LGT (ASR 1030639) 283519.00N0812254.00W (3.6NM NW ORL) 302.5FT (204.1FT AGL) U/S 2512312331-2603312359
12/31/25
2330Z
3/31/26
2359Z
!ORL 12/108 ORL OBST TOWER LGT (ASR 1020591) 283210.00N0812649.00W (6.1NM W ORL) 358.9FT (263.8FT AGL) U/S 2512312330-2603312359
12/31/25
2330Z
3/31/26
2359Z
!ORL 12/107 ORL OBST TOWER LGT (ASR 1045538) 283427.00N0812744.00W (7.0NM WNW ORL) 504.9FT (386.8FT AGL) U/S 2512312330-2603312359
12/14/25
2200Z
12/15/26
0200Z
!ORL 12/053 ORL AIRSPACE UAS WI AN AREA DEFINED AS .3NM RADIUS OF 282837.6N0812816.5W (8.5NM SW ORL) SFC-500FT AGL DLY 2200-0200 2512142200-2612150200
12/11/25
0014Z
6/10/26
2359Z
!ORL 12/048 ORL OBST TOWER LGT (ASR 1247872) 283413.00N0812557.30W (5.4NM WNW ORL) 399.0FT (309.1FT AGL) U/S 2512110014-2606102359
12/11/25
0013Z
6/10/26
2359Z
!ORL 12/047 ORL OBST TOWER LGT (ASR 1247871) 283412.00N0812600.30W (5.5NM WNW ORL) 399.0FT (309.1FT AGL) U/S 2512110013-2606102359
12/9/25
0817Z
Runway!ORL 12/037 ORL RWY 31 RWY END ID LGT U/S 2512090817-2606302000EST
3/14/25
1100Z
3/14/26
2130Z
!ORL 03/018 ORL OBST CRANE (ASN 2024-ASO-15363-OE) 283350N0812215W (2.2NM WNW ORL) 286FT (195FT AGL) FLAGGED AND LGTD 2503141100-2603142130
FDC
6/10/24
1437Z
!FDC 4/5844 ORL ODP EXEC, ORLANDO, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
DEPARTURE PROCEDURES: RWY 31: CLIMB ON HEADING 316.85 TO 700 BEFORE TURNING LEFT.
ALL OTHER DATA REMAINS AS PUBLISHED. 2406101437-2606111200EST
Yes
0600-2200
GREATER ORLANDO AVIATION AUTH
1 JEFF FUQUA BLVD
ORLANDO, FL 32827
Phone: 407-825-1699
JUDITH-ANN JARRETTE
365 RICKENBACKER DR
ORLANDO, FL 32803
Phone: 407-825-1683
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
ORL
--
ATC-CTL. WHEN ATCT CLSD ACTVT MALSR RWY 07; REIL RWYS 13 & 31; HIRL RWYS 07/25 & 13/31; TWY LGTS - CTAF. PAPI RWY 7, 25, 13 & 31 OPR CONS.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 07/25

6004 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
55/F/A/W/T
45,000lbs
100,000lbs
115,000lbs
--
  Runway 07 Runway 25
True Heading 67°247°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 28° 32' 34"N 28° 32' 58"N
Longitude 81° 20' 21"W 81° 19' 20"W
Elevation 106' 110'
Threshold Crossing Height 52 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4R
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 13/31

4625 ft. x 100 ft.
ASPH
Fair
GRVD
HIGH
35/F/B/X/T
35,000lbs
60,000lbs
--
--
  Runway 13 Runway 31
True Heading 131°311°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 28° 32' 56"N 28° 32' 26"N
Longitude 81° 20' 29"W 81° 19' 49"W
Elevation 104' 109'
Threshold Crossing Height 44 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A11ARPT MAIN OFC CTC 407-825-1699; 24/7 EMERG CTC 407 579-5088.
A110-1PPR FOR ACFT OVER 100000 LBS; CTC AMGR 407-825-1681.
A110-11CBP OFC LCTD ONSITE PPR. CTC 407 825-5102. BE ALERT: CBP BOX LCTD ON EAST RAMP IS RSTRD.
A110-12EXECUTIVE ARPT VFR ARR/DEP EXERCISE CAUTION DUE TO SMALL & HVY TURBO-JET ACFT TRANSITING ARPT TFC AREA 2000 FT & ABOVE ON APCH TO ORLANDO INTL 5.6 NM S.
A110-13TWY E BTN TWY D & E5 IS NON MOVEMENT AREA.
A110-14CALL BOXES MKD NEAR ENTRANCES TO W, N & E RAMPS.
A110-1624 HR PPR FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQPT 407-579-5088.
A110-2LGTD BRIDGE HWY LCTD 0.5 NM S OF ARPT MAY GIVE FALSE INDCN OF APCH TO RWY 07 & 31.
A110-3WILDLIFE INVOF ARPT.
A110-4FOR CD OR TO CNL IFR WHEN ATCT IS CLSD, CTC ORLANDO APCH AT 407-852-7500.
A110-5NOISE SENSITIVE ARPT. WHEN ATCT CLSD RWY 07 IS PREF NOISE ABATEMENT RWY WX PMTG. VOLUNTARY RESTRAINT FROM TGL OPS 2300 - 0700.
A110-6BANNER TOWING OPS S RWY 07/25.
A110-7ACFT TAXI ON S HALF OF THE W RAMP RESTR TO ADG1.
A110-8ATC RADAR REQ WHEN ORL ILS RWY 7 & MCO ILS RWY 17 & 18R SIMULTANEOUS OPS ARE CONDUCTED.
A81-APTATC-CTL. WHEN ATCT CLSD ACTVT MALSR RWY 07; REIL RWYS 13 & 31; HIRL RWYS 07/25 & 13/31; TWY LGTS - CTAF. PAPI RWY 7, 25, 13 & 31 OPR CONS.
A83LGTD WIND CONES LCTD NEAR RWY ENDS.
ORLANDO EXEC (ICAO: KORL, IATA: ORL) is a public airport located in ORLANDO, FL, US.
