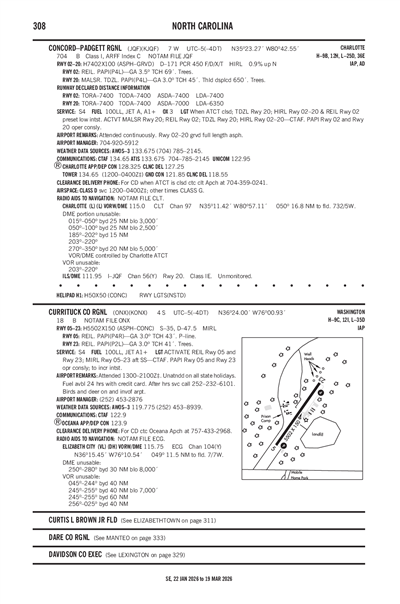

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KONX
CURRITUCK COUNTY RGNL
PublicPUB

4 miles S of CURRITUCK, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 23' 60"N 76° 00' 56"W
18' MSL
1018' MSL
10W
JET A-1+, 100LL
RALEIGH (RDU)
WASHINGTON
WASHINGTON (ZDC)
4/17/25-5/15/25
KONX VFR
3:00 AM EDT
Clear
10sm
54°F
52°F
30.13"Hg
Calm
AO2 T01220110
KONX 030700Z AUTO 00000KT 10SM CLR 12/11 A3013 RMK AO2 T01220110
+ Add Your Business

KONX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
252-453-8939
 119.775

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KECG (11nm)
Tue, 6/3 1:20 AM EDT
Tue, 6/3 2:00 AM EDT - Wed, 6/4 2:00 AM EDT
VFR
2:00 AM EDT - 10:00 AM EDT
Sky Clear
6sm
Calm
VFR
10:00 AM EDT - 5:00 PM EDT
Sky Clear
6sm
170° 6kts
VFR
5:00 PM EDT - 2:00 AM EDT
Sky Clear
6sm
140° 9kts
KECG 030520Z 0306/0406 00000KT P6SM SKC
   FM031400 17006KT P6SM SKC
   FM032100 14009KT P6SM SKC
KONX
Domestic
5/10/250057Z !ONX 05/012 ONX OBST POWER LINE LGT (ASN 2013-ASO-5362-OE) 362313N0760122W (0.9NM SSW ONX) 86FT (79FT AGL) U/S 2505100057-2506240714
5/5/251447Z !ONX 05/010 ONX OBST TOWER (ASR 1251451) 361917.00N0754904.00W (10.5NM ESE ONX) 255FT (250FT AGL) U/S 2505051447-2506190938
3/3/252314Z !ONX 03/001 ONX OBST TOWER LGT (ASR 1004973) 363100.60N0760942.70W (9.8NM NW ONX) 277.9FT (270.0FT AGL) U/S 2503032314-2507012314
FDC
4/22/251537Z !FDC 5/9509 ONX IAP CURRITUCK COUNTY RGNL, CURRITUCK, NC.
VOR/DME-A, AMDT 1A...
CIRCLING CATS B/C MDA 560/HAA 542.
2504221537-2704221537EST
4/22/251537Z !FDC 5/9508 ONX IAP CURRITUCK COUNTY RGNL, CURRITUCK, NC.
RNAV (GPS) RWY 23, ORIG-C...
RNAV (GPS) RWY 5, ORIG-A...
CIRCLING CAT A MDA 460/HAA 442. CIRCLING CATS B/C MDA 560/HAA 542.
2504221537-2704221537EST
No
0800-1600
UNATNDD ON ALL STATE HOLIDAYS.
AFTER HRS SVC CALL 252-232-6101.
COUNTY OF CURRITUCK
153 COURTHOUSE ROAD, SUITE 800
CURRITUCK, NC 27929-9653
Phone: 252-453-8032
WILLIAM NELSON
264 AIRPORT RD (PHYSICAL ADDRESS), 153 COURTHOUSE ROAD, SUITE 302
CURRITUCK, NC 27929
Phone: (252) 453-2876
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
ONX
--
ACTVT REIL RWY 05 & 23; MIRL RWY 05/23 AFT SS - CTAF. PAPI RWY 05 & 23 ON CONSLY; TO INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction

Runway 05/23

5502 ft. x 150 ft.
ASPH CONC
Good
NONE
MED

35,000lbs
48,000lbs
--
--
  Runway 05 Runway 23
True Heading 35°215°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 23' 38"N 36° 24' 22"N
Longitude 76° 01' 15"W 76° 00' 36"W
Elevation 13' 14'
Threshold Crossing Height 43 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS & DEER ON AND INVOF ARPT.
A110-4FOR CD CTC OCEANA APCH AT 757-433-2968.
CURRITUCK COUNTY RGNL (ICAO: KONX, IATA: ONX) is a public airport located in CURRITUCK, NC.
