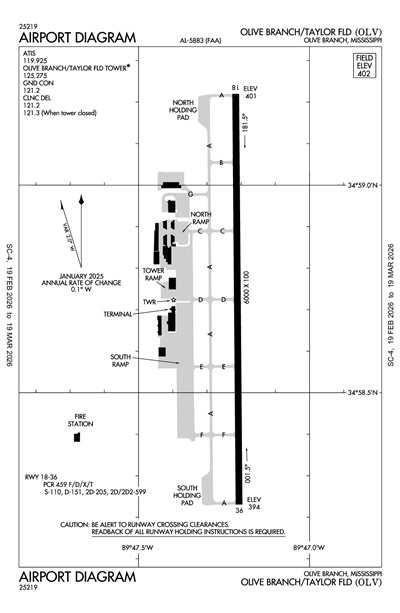

OLIVE BRANCH/TAYLOR FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOLV
ICAO KOLVIATA OLVLocal OLV
OLIVE BRANCH/TAYLOR FLD
PublicPUB

3 miles NE of OLIVE BRANCH, MS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 58' 43"N 89° 47' 13"W
Elevation
402' MSL
Pattern Alt
1202' MSL
Mag Variation
2°W
Declination
1°W
Fuel
JET A, 100LL
FSS
GREENWOOD (GWO)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KOLV VFR
9:55 PM CST
Clear
10sm
64°F
52°F
30.13"Hg
200° 5kts
A01
METAR KOLV 040355Z AUTO 20005KT 10SM CLR 18/11 A3013 RMK A01
+ Add Your Business

KOLV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.925
AWOS-3 119.925
(662) 893-5906

Common

CTAF 125.275
ACTVT MALSR RWY 18 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.2
Clearance Delivery 121.3
WHEN TWR CLSD

Ground

OLIVE BRANCH GROUND 121.2
0700-2100

Tower

OLIVE BRANCH TOWER 125.275
0700-2100

Approach

MEMPHIS APPROACH 125.8
MEMPHIS APPROACH 120.075
Secondary

Departure

MEMPHIS DEPARTURE 124.15

Terminal Area Forecast

KMEM (11nm)
Tue, 3/3 8:57 PM CST
Tue, 3/3 9:00 PM CST - Thu, 3/5 12:00 AM CST
VFR
9:00 PM CST - 12:00 AM CST
Few 25,000'
6sm
170° 3kts
VFR
12:00 AM CST - 6:00 AM CST
Scattered 25,000'
Scattered 2,500'
6sm
170° 8kts
MVFR
6:00 AM CST - 12:00 PM CST
Broken 25,000'
Broken 1,500'
6sm
190° 11kts
Gusts 18kts
VFR
12:00 PM CST - 6:00 PM CST
Broken 25,000'
Scattered 1,500'
6sm
200° 12kts
Gusts 20kts
VFR
6:00 PM CST - 12:00 AM CST
Broken 25,000'
6sm
180° 8kts
TAF KMEM 040257Z 0403/0506 17003KT P6SM FEW250
   FM040600 17008KT P6SM SCT025 SCT250
   FM041200 19011G18KT P6SM BKN015 BKN250
   FM041800 20012G20KT P6SM SCT015 BKN250
   FM050000 18008KT P6SM BKN250
KOLV
EffectiveExpiresCategoryNOTAM
Domestic
2/22/26
1911Z
!OLV 02/015 OLV NAV ILS RWY 36 NOT MNT 2602221911-2603312000EST
2/18/26
2326Z
2/25/26
2359Z
!OLV 02/014 OLV OBST TOWER LGT (ASR 1227794) 345509.10N0894937.10W (4.1NM SSW OLV) 691.6FT (299.9FT AGL) U/S 2602182326-2602252359
FDC
7/17/24
1645Z
!FDC 4/3807 OLV IAP OLIVE BRANCH/TAYLOR FLD, OLIVE BRANCH, MS.
LOC RWY 36, AMDT 1A...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HLI VOR OUT OF SERVICE. 2407171645-2607171645EST
7/17/24
1645Z
!FDC 4/3806 OLV IAP OLIVE BRANCH/TAYLOR FLD, OLIVE BRANCH, MS.
ILS OR LOC RWY 18, AMDT 3A...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HLI VOR OUT OF SERVICE. 2407171645-2607171645EST
Yes
MON-FRI 0600-2100
SAT-SUN 0800-1700
CLSD THANKSGIVING, CHRISTMAS & EASTER.
CITY OF OLIVE BRANCH
9200 PIGEON ROOST RD
OLIVE BRANCH, MS 38654
Phone: 662-895-2978
DAVID TAYLOR JR
8000 TERMINAL DR
OLIVE BRANCH, MS 38654
Phone: 662-895-2978
GREENWOOD FSS (GWO)
Toll Free: 1-800-WX-BRIEF
OLV
--
ACTVT MALSR RWY 18 - CTAF.
N/A
Yes
Yes
No
Hanger, Tie-Down
No
Major
Major
High Pressure
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 18/36

6000 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

110,000lbs
151,000lbs
205,000lbs
599,000lbs
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 34° 59' 13"N 34° 58' 14"N
Longitude 89° 47' 13"W 89° 47' 12"W
Elevation 401' 394'
Threshold Crossing Height 51 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-4FIXED DIST MKRS.
A110-6READ BACK RQRD OF ALL HOLD BACK INSTRUCTIONS.
A110-7TWY H CLSD EXC TO SNGL & LGT TWIN ACFT ONLY.
A17-M1CLSD THANKSGIVING, CHRISTMAS & EASTER.
A39-18/36PCR VALUE: 459/F/D/X/T
A70-100LLSELF-SVC FUEL AVBL 24 HRS WITH CREDIT CARD.
A73BOTTLE OXY AVBL ON REQ CALL 662-895-2978.
A81-APTACTVT MALSR RWY 18 - CTAF.
OLIVE BRANCH/TAYLOR FLD (ICAO: KOLV, IATA: OLV) is a public airport located in OLIVE BRANCH, MS, US.
