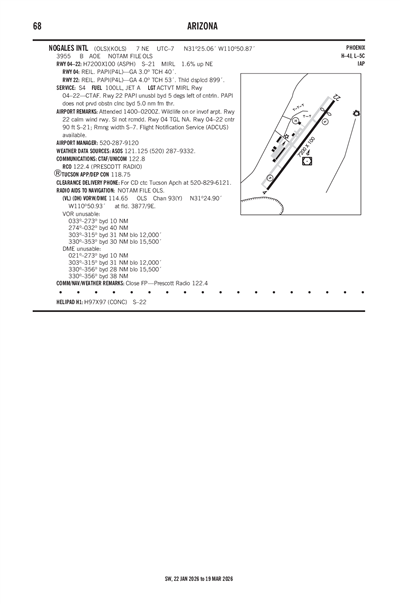

NOGALES INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOLS
ICAO KOLSIATA OLSLocal OLS
NOGALES INTL
PublicPUB

7 miles NE of NOGALES, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 25' 04"N 110° 50' 52"W
Elevation
3955' MSL
Pattern Alt
4955' MSL
Mag Variation
9°E
Declination
9°E
Fuel
JET A, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KOLS VFR
3:54 AM MST
Clear
10sm
45°F
20°F
30.05"Hg
060° 3kts
AO2 SLP129 T00721067
METAR KOLS 041054Z AUTO 06003KT 10SM CLR 07/M07 A3005 RMK AO2 SLP129 T00721067
+ Add Your Business

KOLS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 121.125
(520) 287-9332

Common

CTAF 122.8
ACTVT MIRL RWY 04/22 - CTAF.
UNICOM 122.8

Approach

TUCSON APPROACH 118.75

Departure

TUCSON DEPARTURE 118.75

Flight Service

Flight Service 122.4
(PRC)

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KOLS
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 1:00 AM MST
Sky Clear
6sm
080° 6kts
VFR
1:00 AM MST - 1:00 PM MST
Sky Clear
6sm
VRB° 3kts
VFR
1:00 PM MST - 11:00 PM MST
Broken 25,000'
6sm
240° 11kts
TAF KOLS 040520Z 0406/0506 08006KT P6SM SKC
   FM040800 VRB03KT P6SM SKC
   FM042000 24011KT P6SM BKN250
KOLS
EffectiveExpiresCategoryNOTAM
Domestic
2/14/26
0700Z
8/15/26
0659Z
!OLS 02/006 OLS AIRSPACE SEE FDC 6/4165 ZAB 99.7 SECURITY 2602140700-2608150659
12/31/25
0000Z
3/31/26
2359Z
!OLS 12/013 OLS AIRSPACE UAS WI AN AREA DEFINED AS 312426N1111817W
(23.5NM W OLS) TO 312001N1110436W (12.8NM WSW OLS) TO
312005N1104501W (7.1NM SE OLS) TO 312905N1104514W (6.3NM NE OLS) TO
312947N1111801W (23.7NM W OLS) TO 312429N1111817W (23.5NM W OLS) TO
POINT OF ORIGIN SFC-400FT AGL DLY 0000-2359 2512310000-2603312359
12/12/25
2029Z
6/3/26
2359Z
!OLS 12/007 OLS AIRSPACE UAS WI AN AREA DEFINED AS 313052N1111500W (21.1NM WNW OLS) TO 312500N1110430W (11.2NM W OLS) TO 312224N1105427W (4NM SW OLS) TO 312225N1104644W (5.2NM SE OLS) TO 312345N1104459W (6.3NM SE OLS) TO 312007N1104500W (7.2NM SE OLS) TO 312003N1110430W (12.2NM SW OLS) TO 312323N1111459W (19.9NM W OLS) TO POINT OF ORIGIN SFC-400FT AGL 2512122029-2606032359
No
0700-1900
SANTA CRUZ COUNTY
COUNTY COURTHOUSE
NOGALES, AZ 85621
Phone: 520-375-7930
SETH MILLER
COPPER MOUNTAIN AIR LLC NOGALES INTERNATIONAL AIRPORT
NOGALES, AZ 25621
Phone: 520-287-9120
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
OLS
--
ACTVT MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

7200 ft. x 100 ft.
ASPH
Good
NONE
MED

21,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 46°226°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 24' 39"N 31° 25' 28"N
Longitude 110° 51' 22"W 110° 50' 22"W
Elevation 3,839' 3,955'
Threshold Crossing Height 40 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

97 ft. x 97 ft.
CONC
Good
NONE


22,000lbs
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 31° 25' 11"N N/A
Longitude 110° 50' 56"W N/A
Elevation 3,905' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2CLOSE FP - PRESCOTT RADIO 122.4.
A110-6WILDLIFE ON OR INVOF ARPT.
A110-7FOR CD CTC TUCSON APCH AT 520-829-6121.
A30-04/22RWY 22 CALM WIND RWY. SI NOT RCMDD.
A30A-04TGL NA.
A35-04/22CNTR 90 FT S-21; RMNG WIDTH S-7.
A43-22PAPI UNUSBL BYD 5 DEGS LEFT OF CNTRLN. PAPI DOES NOT PRVD OBSTN CLNC BYD 5.0 NM FM THR.
A57-22APCH SLOPE 20:1 TO DTHR.
A81-APTACTVT MIRL RWY 04/22 - CTAF.
NOGALES INTL (ICAO: KOLS, IATA: OLS) is a public airport located in NOGALES, AZ, US.
